Siegmund System 28 - Connecting Bolt

  • Sale
  • Regular price $53.00
Shipping calculated at checkout.


SIEGMUND SYSTEM 28 - CONNECTING BOLT



Siegmund offers a wide range of Bolts for System 28, 28mm fixture tables. Manufactured in Germany, Siegmund's Bolts are made with the highest quality standards on the market. Choose Siegmund and take on any job with confidence.



Technical Data:

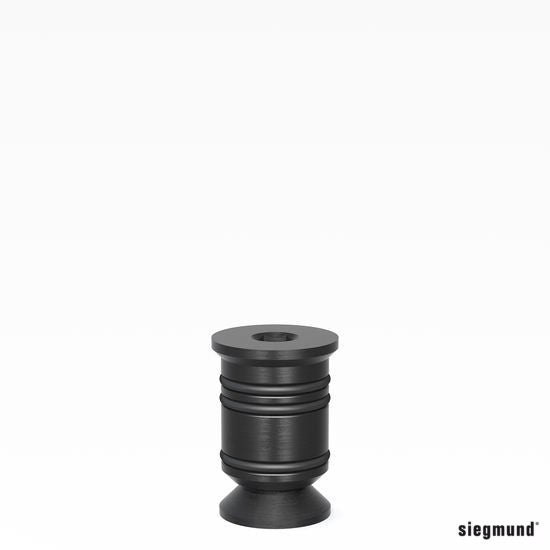

Item No.: 2-280560.N

Connecting Bolt double ‐ nitrided

Length (a) 50 mm
Weight 0,18 kg
Shearing Force 200 kN
Tightening Torque Steel 25 Nm
Tensile Force Steel  10 kN



Product description
Flushmount Connecting Bolt, especially designed to serve as a fixed long-term connection between large Siegmund components, e.g. tables or U-shaped squares.

The flush mount hexagon socket and the ability of the clamping bolt to center itself, facilitate simple assembly. The countersunk head and the countersunk-head screw are equipped with a 10 hexagonal bit for clamping.

The Connecting Bolt enables sturdy bolting. The Connecting Bolt is not suitable for the use in elongated holes.

‐ for connecting 2 components
‐ not suitable for aluminum profiles
‐ with hexagon socket (At the top / At the bottom Size 10)

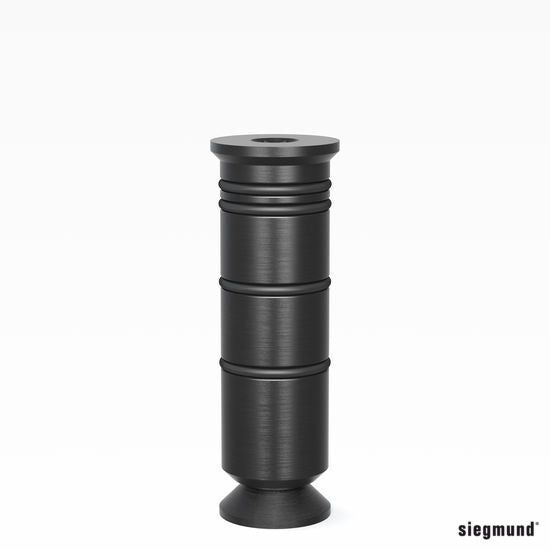

Item No.: 2-280562

Connecting Bolt quadruple ‐ burnished

Length (a) 100 mm
Weight 0,34 kg
Shearing Force 200 kN
Tightening Torque Steel 25 Nm
Tensile Force Steel  10 kN



Product description
Burnished Flushmount Connecting Bolt, especially designed to serve as a fixed long-term connection between large Siegmund components, e.g. tables or U-shaped squares.

The flush mount hexagon socket and the ability of the clamping bolt to center itself, facilitate simple assembly. The countersunk head and the countersunk-head screw are equipped with a 10 hexagonal bit for clamping.

The Connecting Bolt enables sturdy bolting. The Connecting Bolt is not suitable for the use in elongated holes.

‐ for connecting 4 components
‐ not suitable for aluminum profiles
‐ with hexagon socket (At the top / At the bottom Size 10)

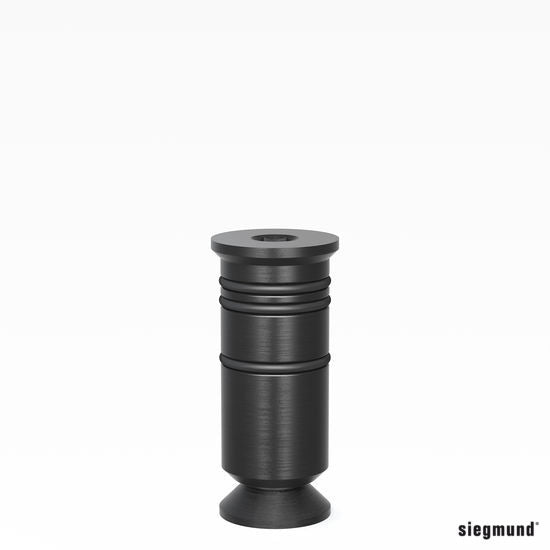

Item No.: 2-280561

Connecting Bolt triple ‐ burnished

Length (a) 75 mm
Weight 0,2 kg
Shearing Force 200 kN
Tightening Torque Steel 25 Nm
Tensile Force Steel  10 kN



Product description
Burnished Flushmount Connecting Bolt, especially designed to serve as a fixed long-term connection between large Siegmund components, e.g. tables or U-shaped squares.

The flush mount hexagon socket and the ability of the clamping bolt to center itself, facilitate simple assembly. The countersunk head and the countersunk-head screw are equipped with a 10 hexagonal bit for clamping.

The Connecting Bolt enables sturdy bolting. The Connecting Bolt is not suitable for the use in elongated holes.

‐ for connecting 3 components
‐ not suitable for aluminum profiles
‐ with hexagon socket (At the top / At the bottom Size 10)
