Siegmund System 16 - Universal Bolt

  • Sale
  • Regular price $93.00
Shipping calculated at checkout.


SIEGMUND SYSTEM 16 UNIVERSAL BOLT



The range of Siegmund System 16 Bolts are compatible with any 16mm fixture table. Made in Germany to the highest of quality assurance. You always know that with Siegmund tooling, you will never be let down.



Technical Data:

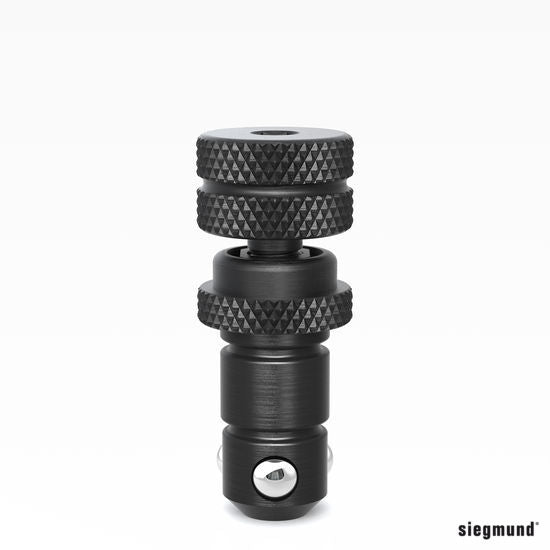

Item No.: 2-160532

Universal Bolt double ‐ burnished

Length (a) 59 mm
Weight 0,11 kg
Shearing Force 50 kN
Tightening Torque Steel 10 Nm
Tightening Torque Aluminum 2.5 Nm
Tensile Force Steel  10 kN



Product description
Burnished Universal Bolt (Locking Bolt), perfect connection element for Siegmund elements. It is used when elements of different material thickness are being interconnected. The clamping range of the short Universal Bolt is 22 to 28 mm. The long Universal Bolt has a clamping range of 34 to 40 mm. The large balls shift the center of pressure towards the outside, and prevent a displacement of the material due to low surface pressure, when there are high clamping forces in the direction of the borehole.

The Universal Bolt is clamped with the integrated handwheel or with a hex wrench 6 (Item No. 280852.1).

Note: This bolt MUST NOT be used for connecting tables and U-shaped squares!

‐ for clamping 2 components
‐ with hexagon socket (Size 6)

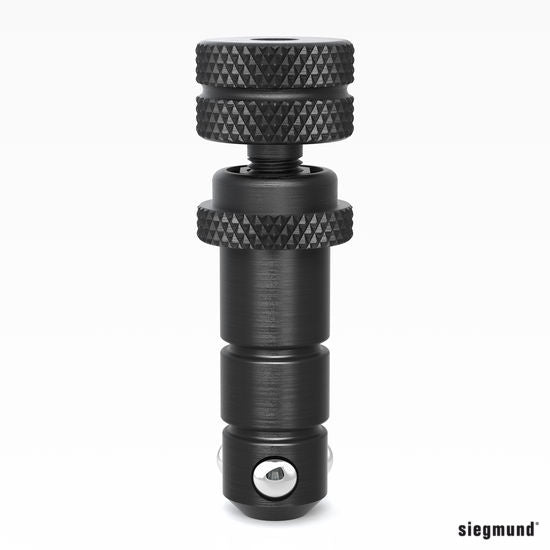

Item No.: 2-160533

Universal Bolt triple ‐ burnished

Length (a) 71 mm
Weight 0,12 kg
Shearing Force 50 kN
Tightening Torque Steel 10 Nm
Tightening Torque Aluminum 2.5 Nm
Tensile Force Steel  10 kN



Product description
Burnished Universal Bolt (Locking Bolt), perfect connection element for Siegmund elements. It is used when elements of different material thickness are being interconnected. The clamping range of the short Universal Bolt is 22 to 28 mm. The long Universal Bolt has a clamping range of 34 to 40 mm. The large balls shift the center of pressure towards the outside, and prevent a displacement of the material due to low surface pressure, when there are high clamping forces in the direction of the borehole.

The Universal Bolt is clamped with the integrated handwheel or with a hex wrench 6 (Item No. 280852.1).

Note: This bolt MUST NOT be used for connecting tables and U-shaped squares!

‐ for clamping 3 components
‐ burnished
‐ with hexagon socket (Size 6)
