The Angle Alignment Template sets System 28 parts at a precise angle, either in 10° steps or continuously from 0 to 90°, using its 1° scale. Siegmund includes two spacer sleeves for clamping it with bolts. BTH Sales is the exclusive Canadian importer of Siegmund.
Specifications
| Item no. | 280455.N (siegmund.com) |
|---|---|
| Siegmund name | Angle Alignment Template nitrided |
| System | Siegmund System 28 (Ø28 mm bores, 100 mm grid) |
| Length | 250 mm (9.84 in) |
| Width | 250 mm (9.84 in) |
| Material thickness | 5 mm (0.20 in) |
| Weight | 1.5 kg (3.31 lb) |
Works with this product
-

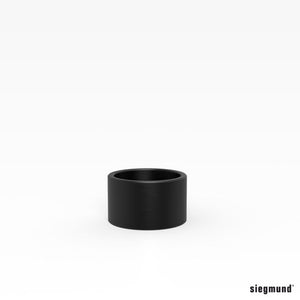

Siegmund System 28 - Spacer Sleeve
$16.00
-

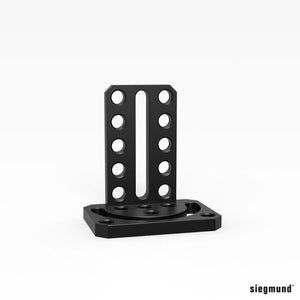

Siegmund System 28 - Rotation Angle 275
$740.00
-
Siegmund System 28 - Fast Clamping Bolt without Slot
From $115.00
-
Siegmund System 16 & 28 - Anti-Splatter
From $38.00
-
Siegmund System 16 & 28 - Clean Basic
From $32.00
-
Siegmund System 16 & 28 - Ground Connection Comfort
$104.00
Compatibility
- Fits: Siegmund System 28 welding tables and tooling with Ø28 mm bores.
- Not compatible: System 16 (Ø16 mm) tables; Siegmund builds each system around one bore size.
- Related products: 280538 Siegmund System 28 - Spacer Sleeve, 280101.N Siegmund System 28 - Rotation Angle 275, 280511 Siegmund S28 Fast Clamping Bolt without Slot.
- Care & grounding: anti-spatter spray, CleanBasic cleaner, Ground Connection Comfort (S16/S28).
What's included
1 x Angle Alignment Template 280455.N and 2 x Spacer Sleeve, per Siegmund.
Typical uses
- Setting stops and squares at an exact angle
- Repeating angled setups on a System 28 table
Engineering support & demos
Engineering support comes with your purchase: fixture design, layout drawings, CAD and 3D models, site visits and cobot cell planning, handled by Travis Hardcastle at BTH Sales or by Siegmund directly. Live demos at our St. Marys showroom are by appointment (book a demo), and we offer video demos if you are outside Ontario. BTH Sales is family-owned, founded in 2001, and has been the exclusive Canadian importer of Siegmund since 2018.
Industries served: Siegmund's published practical examples show its welding tables and tooling in these sectors: Agriculture; Interior; Lighting and electrical engineering; Machine tools and plant construction; Measurement and testing technology; Motorcycle engineering; Revolving door systems; Robotic technology; Stage technology; Stainless steel processing; Steel, sheet metal and metal construction; Textile production; Train Construction; Vehicle construction; Welding technology; Woodworking.
Ships across Canada by freight from 5 Industrial Rd, St. Marys, ON N4X 1G2, or pick up from our warehouse. Email sales@bthsales.ca or call +1-519-461-1381 for a freight quote and delivery estimate.
Frequently Asked Questions
How precise is the Angle Alignment Template?
Siegmund says it adjusts in 10° increments or continuously from 0 to 90°, with a 1° precision scale.
Are spacer sleeves included?
Yes. Siegmund includes 2 x spacer sleeve. The spacer sleeve 280538 is needed as height compensation when clamping the template with bolts.
