The Spacer Sleeve is the height compensation Siegmund requires when clamping the System 28 Angle Alignment Template with bolts. It is burnished, 20 mm high and 35 mm in diameter. BTH Sales is the exclusive Canadian importer of Siegmund.
Specifications
| Item no. | 280538 (siegmund.com) |
|---|---|
| Siegmund name | Spacer Sleeve burnished |
| System | Siegmund System 28 (Ø28 mm bores, 100 mm grid) |
| Height | 20 mm (0.79 in) |
| Diameter | 35 mm (1.38 in) |
| Weight | 0.05 kg (0.11 lb) |
Works with this product
Compatibility
- Fits: Siegmund System 28 welding tables and tooling with Ø28 mm bores.
- Not compatible: System 16 (Ø16 mm) tables; Siegmund builds each system around one bore size.

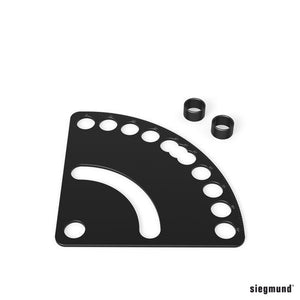

- Related products: 280455.N Siegmund System 28 - Angle Alignment Template, 280511 Siegmund S28 Fast Clamping Bolt without Slot.
- Care & grounding: anti-spatter spray, CleanBasic cleaner, Ground Connection Comfort (S16/S28).
What's included
- 1 x Siegmund Spacer Sleeve burnished (280538)
Typical uses
- Clamping the angle alignment template with bolts
- Replacing lost spacer sleeves
Engineering support & demos
Engineering support comes with your purchase: fixture design, layout drawings, CAD and 3D models, site visits and cobot cell planning, handled by Travis Hardcastle at BTH Sales or by Siegmund directly. Live demos at our St. Marys showroom are by appointment (book a demo), and we offer video demos if you are outside Ontario. BTH Sales is family-owned, founded in 2001, and has been the exclusive Canadian importer of Siegmund since 2018.
Industries served: Siegmund's published practical examples show its welding tables and tooling in these sectors: Agriculture; Interior; Lighting and electrical engineering; Machine tools and plant construction; Measurement and testing technology; Motorcycle engineering; Revolving door systems; Robotic technology; Stage technology; Stainless steel processing; Steel, sheet metal and metal construction; Textile production; Train Construction; Vehicle construction; Welding technology; Woodworking.
Ships across Canada by freight from 5 Industrial Rd, St. Marys, ON N4X 1G2, or pick up from our warehouse. Email sales@bthsales.ca or call +1-519-461-1381 for a freight quote and delivery estimate.
Frequently Asked Questions
What is the Spacer Sleeve for?
Siegmund says it is required as height compensation when clamping the angle alignment template with bolts.
Does the angle alignment template come with spacer sleeves?
Yes. Siegmund includes 2 spacer sleeves with the Angle Alignment Template 280455.N; this page is for extra or replacement sleeves.
