Items 280546.1, 280546, 280546.2, 280546.4 and 280546.3: Siegmund Clamp Bushings, burnished, for M8, M10, M12 and M16 threads, each with screw. They attach Siegmund System 28 components to threaded holes, for example on sliding blocks, or, with the M10 bushing (280546) and the T-Nut 280547, to a T-slot table. BTH Sales is the exclusive Canadian importer of Siegmund.
Specifications
| Siegmund article | 280546.1 (siegmund.com) | 280546 (siegmund.com) | 280546.2 (siegmund.com) | 280546.4 (siegmund.com) | 280546.3 (siegmund.com) |
|---|---|---|---|---|---|
| Description | Clamp Bushing for M8 thread incl. screw 25 mm burnished | Clamp Bushing for M10 thread incl. screw 25 mm burnished | Clamp Bushing for M12 thread incl. screw 25 mm burnished | Clamp Bushing for M12 thread incl. screw 50 mm burnished | Clamp Bushing for M16 thread incl. screw 50 mm burnished |
| System | Siegmund System 28 (Ø28 mm bores, 100 mm grid) | ||||
| Height | 28 mm (1.10 in) | 28 mm (1.10 in) | 28 mm (1.10 in) | 28 mm (1.10 in) | 45 mm (1.77 in) |
| Diameter | 40 mm (1.57 in) | ||||
| Weight | 0.11 kg (0.24 lb) | 0.11 kg (0.24 lb) | 0.14 kg (0.31 lb) | 0.14 kg (0.31 lb) | 0.21 kg (0.46 lb) |
| Finish | Burnished | ||||
| GTIN | 4251805921779 | 4251805921762 | 4251805921786 | 4251805925425 | 4251805921793 |
Related products & accessories
Compatibility
- Fits: Siegmund System 28 welding tables and tooling with Ø28 mm bores on a 100 mm grid. Clamp bushings let you use Siegmund System 28 components on welding tables with threaded holes, or, with the M10 bushing (280546), on T-slot tables together with the T-Nut 280547, rather than on Ø28 mm system bores. Compatible tables from other manufacturers are often made from different materials and to different standards, so quality varies by manufacturer, compared with Siegmund's X8.7 tool steel.
- Siegmund System 28: Clamp Bushings that let Siegmund components be attached to threaded holes (M8, M12 and M16, "e.g. on sliding blocks").
- T-slot tables: the M10 version 280546 pairs with T-Nut 280547 on T-slot tables. Ask sales@bthsales.ca about the T-Nut.
- 280546.4: "especially for fastening Siegmund parts with hexagonal sliding blocks".
- Not compatible: System 16 (Ø16 mm) tables; Siegmund builds each system around one bore size.
- Works with: other Siegmund System 28 clamps, bolts, stops, squares and U-squares on the same table.
- Care & grounding: anti-spatter spray, CleanBasic cleaner, Ground Connection Comfort (S16/S28).
What's included
Choose one option; each option is one piece:

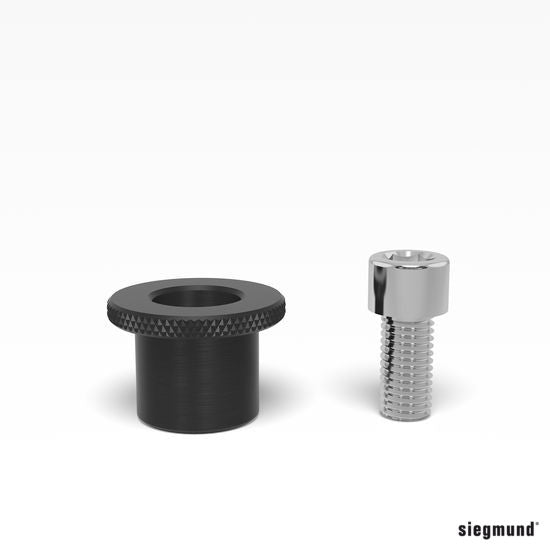

- 1 x Siegmund Clamp Bushing for M8 thread incl. screw 25 mm burnished (280546.1)
- 1 x Siegmund Clamp Bushing for M10 thread incl. screw 25 mm burnished (280546)
- 1 x Siegmund Clamp Bushing for M12 thread incl. screw 25 mm burnished (280546.2)
- 1 x Siegmund Clamp Bushing for M12 thread incl. screw 50 mm burnished (280546.4)

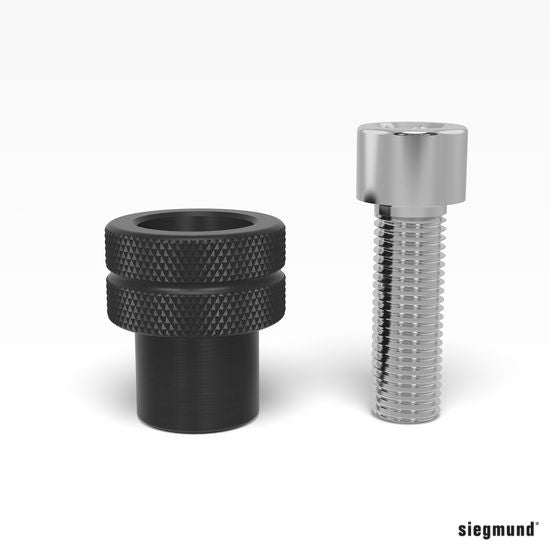

- 1 x Siegmund Clamp Bushing for M16 thread incl. screw 50 mm burnished (280546.3)
