Siegmund System 28 - Universal Bolt Comfort

  • Sale
  • Regular price $135.00
Shipping calculated at checkout.


SIEGMUND SYSTEM 28 - UNIVERSAL BOLT COMFORT



Siegmund offers a wide range of Bolts for System 28, 28mm fixture tables. Manufactured in Germany, Siegmund's Bolts are made with the highest quality standards on the market. Choose Siegmund and take on any job with confidence.



Technical Data:

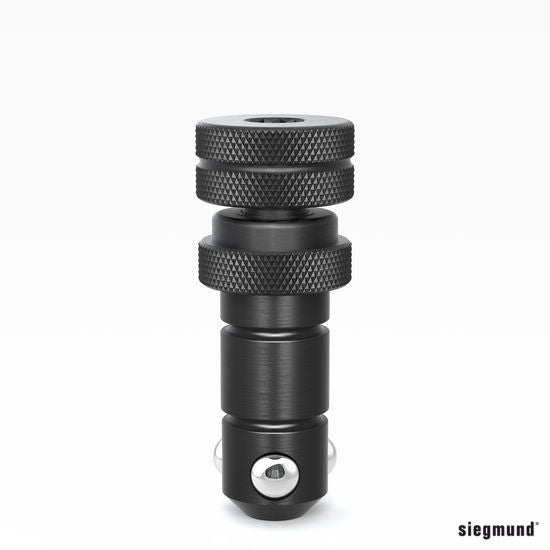

Item No.: 2-280532

Universal Bolt Comfort double ‐ burnished

Length (a) 100 mm
Weight 0,6 kg
Shearing Force 200 kN
Tightening Torque Steel 25 Nm
Tightening Torque Aluminum 10 Nm
Tensile Force Steel  25 kN



Product description
Burnished Universal Bolt (locking bolt), perfect connection element for Siegmund elements. It is used when elements of different material thickness are being interconnected. The clamping range of the short Universal Bolt is 45 to 53 mm. The long Universal Bolt has a clamping range of 70 to 78 mm. The large balls shift the center of pressure towards the outside, and prevent a displacement of the material due to low surface pressure, when there are high clamping forces in the direction of the borehole.

The Universal Bolt is clamped with the integrated handwheel or with a hex wrench 14 (Item No. 280854).

Note: This bolt MUST NOT be used for connecting tables and U-shaped squares!

Clamping torque dependent on table type.

‐ for clamping 2 components
‐ with hexagon socket (Size 14)

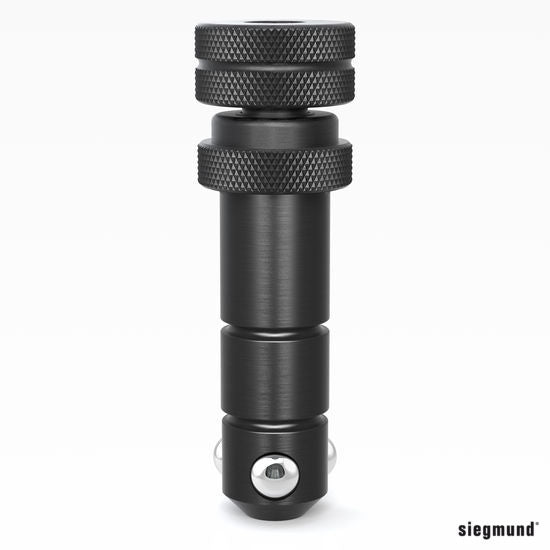

Item No.: 2-280533

Universal Bolt Comfort triple ‐ burnished

Length (a) 125 mm
Weight 0,7 kg
Shearing Force 200 kN
Tightening Torque Steel 25 Nm
Tightening Torque Aluminum 10 Nm
Tensile Force Steel  25 kN



Product description
Burnished Universal Bolt (locking bolt), perfect connection element for Siegmund elements. It is used when elements of different material thickness are being interconnected. The clamping range of the short Universal Bolt is 45 to 53 mm. The long Universal Bolt has a clamping range of 70 to 78 mm. The large balls shift the center of pressure towards the outside, and prevent a displacement of the material due to low surface pressure, when there are high clamping forces in the direction of the borehole.

The Universal Bolt is clamped with the integrated handwheel or with a hex wrench 14 (Item No. 280854).

Note: This bolt MUST NOT be used for connecting tables and U-shaped squares!

Clamping torque dependent on table type.

‐ for clamping 3 components
‐ with hexagon socket (Size 14)
