Siegmund System 28 - Connecting Bolt With Collar

  • Sale
  • Regular price $63.00
Shipping calculated at checkout.


SIEGMUND SYSTEM 28 - CONNECTING BOLT WITH COLLAR



Siegmund offers a wide range of Bolts for System 28, 28mm fixture tables. Manufactured in Germany, Siegmund's Bolts are made with the highest quality standards on the market. Choose Siegmund and take on any job with confidence.



Technical Data:

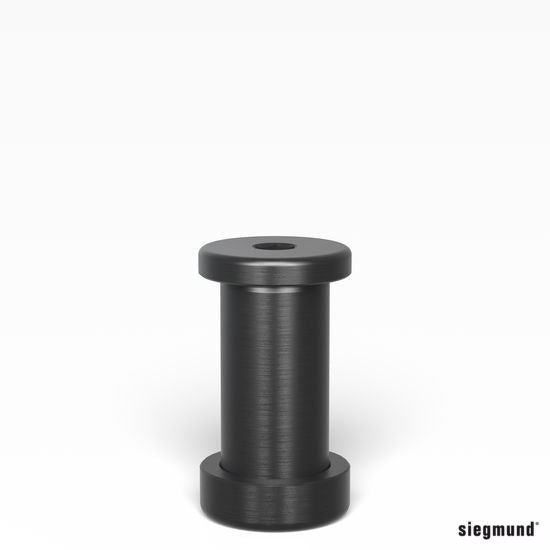

Item No.: 2-280583

Connecting Bolt with collar double ‐ burnished

Length (a) 70 mm
Weight 0,39 kg
Shearing Force 200 kN
Tightening Torque Steel 25 Nm
Tightening Torque Aluminum 25 Nm
Tensile Force Steel  15 kN



Product description
The connecting bolt was specially designed to serve as a fixed long-term connection between large Siegmund elements, e.g. tables, U-squares and aluminum profiles.

For a better fitting when connecting aluminum profiles, a special flat screw is used for clamping.

The bolt head is equipped with a 10 mm hexagonal bit and the special screw is equipped with a 6 mm hexagonal bit.

This connecting bolt is also suitable for use in elongated holes.

Especially suitable for aluminum.

Clamping torque dependent on material.

When clamping aluminum parts, the bolts must only be tightened hand-tight.

‐ for connecting 2 components
‐ with hexagon socket (At the top Size 10 / At the bottom Size 6)

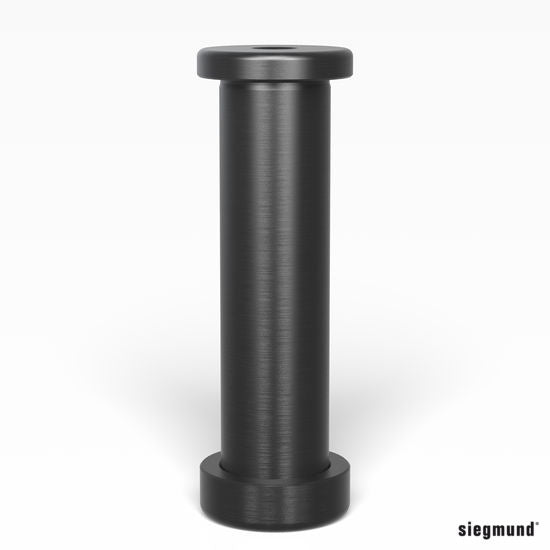

Item No.: 2-280585

Connecting Bolt with collar quadruple ‐ burnished

Length (a) 120 mm
Weight 0,63 kg
Shearing Force 200 kN
Tightening Torque Steel 25 Nm
Tightening Torque Aluminum 25 Nm
Tensile Force Steel  15 kN



Product description
The connecting bolt was specially designed to serve as a fixed long-term connection between large Siegmund elements, e.g. tables, U-squares and aluminum profiles.

For a better fitting when connecting aluminum profiles, a special flat screw is used for clamping.

The bolt head is equipped with a 10 mm hexagonal bit and the special screw is equipped with a 6 mm hexagonal bit.

This connecting bolt is also suitable for use in elongated holes.

Especially suitable for aluminum.

Clamping torque dependent on material.

When clamping aluminum parts, the bolts must only be tightened hand-tight.

‐ for connecting 4 components
‐ with hexagon socket (At the top Size 10 / At the bottom Size 6)

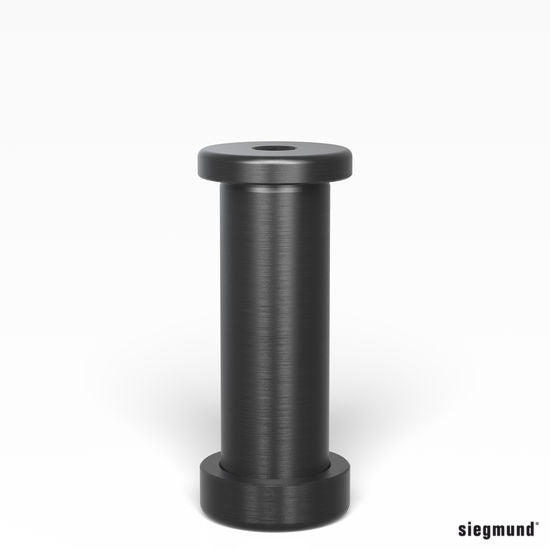

Item No.: 2-280584

Connecting Bolt with collar triple ‐ burnished

Length (a) 95 mm
Weight 0,51 kg
Shearing Force 200 kN
Tightening Torque Steel 25 Nm
Tightening Torque Aluminum 25 Nm
Tensile Force Steel  15 kN



Product description
The connecting bolt was specially designed to serve as a fixed long-term connection between large Siegmund elements, e.g. tables, U-squares and aluminum profiles.

For a better fitting when connecting aluminum profiles, a special flat screw is used for clamping.

The bolt head is equipped with a 10 mm hexagonal bit and the special screw is equipped with a 6 mm hexagonal bit.

This connecting bolt is also suitable for use in elongated holes.

Especially suitable for aluminum.

Clamping torque dependent on material.

When clamping aluminum parts, the bolts must only be tightened hand-tight.

‐ for connecting 3 components
‐ with hexagon socket (At the top Size 10 / At the bottom Size 6)
