Siegmund Set 1 Aluminum for System 28 (item no. 283100.A) is a 47-piece tooling kit for Siegmund System 28 welding and clamping tables. It includes 10 clamps, 10 prisms, 12 bolts, 12 stops and 2 squares, plus the Siegmund accessories set 283999. Order it in Canada from BTH Sales.
Key specs
| System | Siegmund System 28 (Ø 28 mm (1.1 in) boreholes) |
|---|---|
| Manufacturer article no. | 283100.A |
| GTIN/EAN | 4251805921236 |
| Set weight | 41.34 kg (91 lb) (manufacturer data) |
| Materials | as listed per item in the table above (Siegmund item descriptions) |
| Manufacturer | Bernd Siegmund GmbH, Germany |

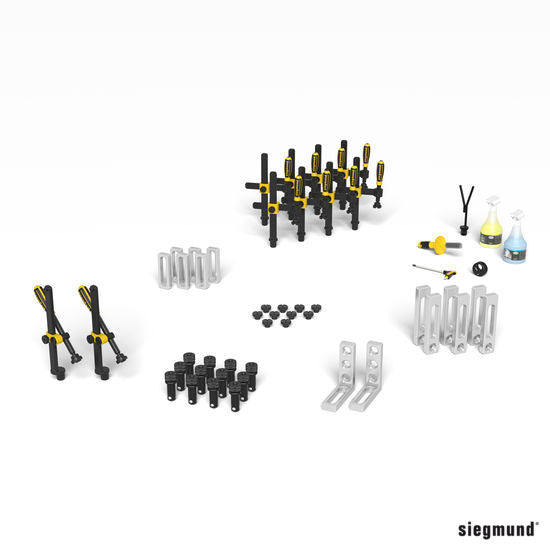

What's included
| Qty | Item no. | Name |
|---|---|---|
| 8 | 280610.N | Professional Screw Clamp nitrided |
| 2 | 280630.N | Professional Screw Clamp 45°/90° nitrided |
| 10 | 280659.PA | Prism for Screw Clamps Polyamide |
| 12 | 280511 | Fast Clamping Bolt without slot double burnished |
| 6 | 280410.A | Universal Stop 150 L Aluminum |
| 6 | 280420.A | Universal Stop 225 L Aluminum |
| 2 | 280110.A | Stop and Clamping Square 175 L Aluminum |
| 1 | 283999 | Accessories-Set (included in Set 1 - Set 5) |
Total: 47 pieces (per Siegmund's listing; paired left/right squares count as two).
Accessories set 283999 contents
- 1 × 280402.N Eccentric stop Ø 60 with M10 thread, nitrided
- 1 × 280852.1 Hex wrench, size 6
- 1 × 280820 Brush Ø 30 with protective cover
- 1 × 000914 CleanBasic, 1 litre spray bottle
- 1 × 000924 Anti-Spatter, 1 litre spray bottle
- 1 × 280920 Burner (torch) holder, burnished
Compatibility
It fits all Siegmund System 28 welding tables (Ø 28 mm bores). It is not compatible with System 16 tables, which use 16 mm bores. Siegmund System 28: fits every System 28 Siegmund table, including the Professional Extreme 8.7 and 8.8 PLUS tables listed on bthsales.ca.
Compare System 28 sets
- Set 1 – System 28 (33 pcs)
- Set 2 – System 28 (57 pcs)
- Set 3 – System 28 (77 pcs)
- Set 4 – System 28 (110 pcs)
- Set 5 – System 28 (128 pcs)
- Basic Set 1 – System 28 (37 pcs)
- Basic Set 2 – System 28 (51 pcs)
- Basic Set 3 – System 28 (69 pcs)
- Set 2 Aluminum – System 28 (77 pcs)
- Set 3 Aluminum – System 28 (108 pcs)
- Set 4 Aluminum – System 28 (148 pcs)
- All Siegmund System 28 table sets
Frequently Asked Questions
Which tables does Set 1 Aluminum fit?
It fits all Siegmund System 28 welding tables (Ø 28 mm bores). It is not compatible with System 16 tables, which use 16 mm bores.
What jobs is Set 1 Aluminum equipped for?
Based on Siegmund's set list and item descriptions, Set 1 Aluminum lets you clamp parts down quickly and exactly with the Professional Screw Clamps (including 45°/90° versions); clamp round and square pipes and scratch-prone surfaces with the polyamide prisms on the screw clamps; set repeatable stops that bolt into the boreholes or slide in the elongated hole (0-100 mm); build adjustable angles with the L squares.
What does Set 2 Aluminum add over Set 1 Aluminum?
Per Siegmund's set lists, Set 2 Aluminum adds 2 chromed Universal Stops 500 S; 2 aluminum Prisms Ø 50 135°; 1 Stop and Clamping Square 600 GK left (aluminum-titanium); 1 Stop and Clamping Square 600 GK right (aluminum-titanium), and has more Professional Screw Clamps (10 instead of 8); Professional Screw Clamps 45°/90° (4 instead of 2); polyamide Prisms for Screw Clamps (14 instead of 10); Fast Clamping Bolts (24 instead of 12); aluminum Stop and Clamping Squares 175 L (6 instead of 2). Both include the accessories set.
How do I keep the table and tooling clean with the included accessories?
The 283999 accessories set includes a bore brush plus CleanBasic and Anti-Spatter spray bottles. Siegmund describes CleanBasic as a water-based cleaner for daily table cleaning whose anti-corrosive ingredients prevent rust under normal conditions; it should not be used if rust has appeared from very high humidity. Anti-Spatter is a non-flammable, water-soluble agent that stops weld spatter burning into the table, so spatter can be wiped off after welding. Siegmund also advises cleaning surfaces and holes regularly and avoiding unsuitable abrasives or corrosive substances.
Do you ship Set 1 Aluminum across Canada?
Yes. BTH Sales ships across Canada from its warehouse in St. Marys, Ontario.
