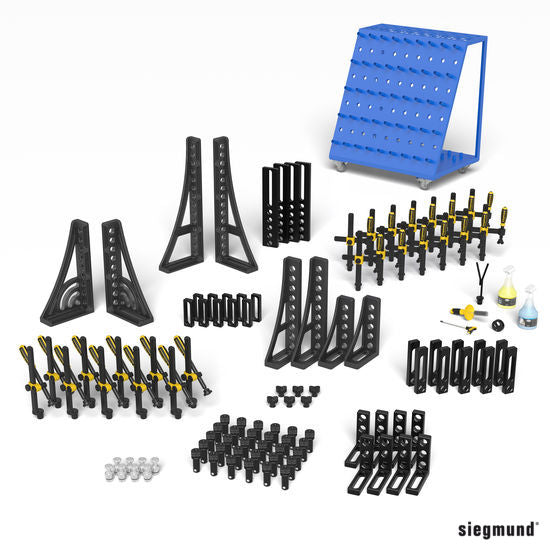

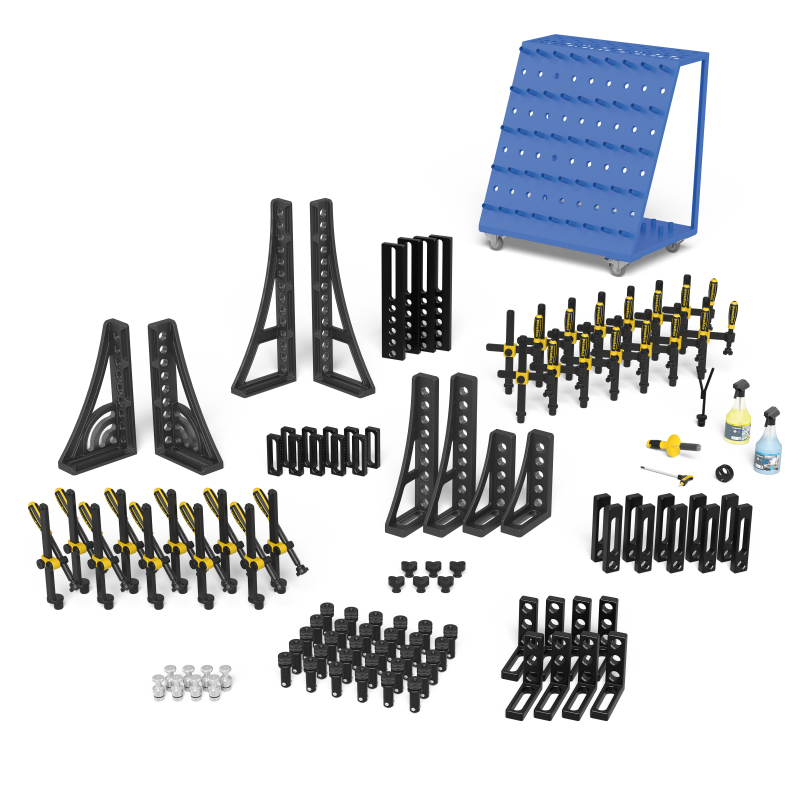

Siegmund Set 4 for System 28 (item no. 283400) is a 110-piece tooling kit for Siegmund System 28 welding and clamping tables. It includes 24 clamps, 6 prisms, 38 bolts, 24 stops, 16 squares and tool cart, plus the Siegmund accessories set 283999. It also includes the Siegmund 280910 tool cart. Order it in Canada from BTH Sales.
Key specs
| System | Siegmund System 28 (Ø 28 mm (1.1 in) boreholes) |
|---|---|
| Manufacturer article no. | 283400 |
| GTIN/EAN | 4251805922349 |
| Set weight | 284.28 kg (627 lb) (manufacturer data) |
| Materials | clamps, stops and squares nitrided; fast-clamping bolts double burnished |
| Manufacturer | Bernd Siegmund GmbH, Germany |
What's included
| Qty | Item no. | Name |
|---|---|---|
| 14 | 280610.N | Professional Screw Clamp nitrided |
| 10 | 280630.N | Professional Screw Clamp 45°/90° nitrided |
| 6 | 280648.1.N | Prism Ø 50 135° with screwed-in collar nitrided |
| 30 | 280511 | Fast Clamping Bolt without slot double burnished |
| 8 | 280740 | Magnetic Clamping Bolt 68 Aluminum |
| 10 | 280410.N | Universal Stop 150 L nitrided |
| 10 | 280420.N | Universal Stop 225 L nitrided |
| 4 | 280430.N | Universal Stop 500 S nitrided |
| 8 | 280110.N | Stop and Clamping Square 175 L nitrided |
| 2 | 280152.N | Stop and Clamping Square 300 G nitrided |
| 2 | 280162.N | Stop and Clamping Square 500 G nitrided |
| 1 | 280164+65.N | Set Stop and Clamping Square 500 G with rotation angle nitrided |
| 1 | 280166+67.N | Set Stop and Clamping Square 750 G nitrided |
| 1 | 280910 | Tool Cart powder coated finish |
| 1 | 283999 | Accessories-Set (included in Set 1 - Set 5) |
Total: 110 pieces (per Siegmund's listing; paired left/right squares count as two).
Accessories set 283999 contents
- 1 × 280402.N Eccentric stop Ø 60 with M10 thread, nitrided
- 1 × 280852.1 Hex wrench, size 6
- 1 × 280820 Brush Ø 30 with protective cover
- 1 × 000914 CleanBasic, 1 litre spray bottle
- 1 × 000924 Anti-Spatter, 1 litre spray bottle
- 1 × 280920 Burner (torch) holder, burnished
Compatibility
It fits all Siegmund System 28 welding tables (Ø 28 mm bores). It is not compatible with System 16 tables, which use 16 mm bores. Siegmund System 28: fits every System 28 Siegmund table, including the Professional Extreme 8.7 and 8.8 PLUS tables listed on bthsales.ca.
Compare System 28 sets
- Set 1 – System 28 (33 pcs)
- Set 2 – System 28 (57 pcs)
- Set 3 – System 28 (77 pcs)
- Set 5 – System 28 (128 pcs)
- Basic Set 1 – System 28 (37 pcs)
- Basic Set 2 – System 28 (51 pcs)
- Basic Set 3 – System 28 (69 pcs)
- Set 1 Aluminum – System 28 (47 pcs)
- Set 2 Aluminum – System 28 (77 pcs)
- Set 3 Aluminum – System 28 (108 pcs)
- Set 4 Aluminum – System 28 (148 pcs)
- All Siegmund System 28 table sets
Frequently Asked Questions
Which tables does Set 4 fit?
It fits all Siegmund System 28 welding tables (Ø 28 mm bores). It is not compatible with System 16 tables, which use 16 mm bores.
What jobs is Set 4 equipped for?
Based on Siegmund's set list and item descriptions, Set 4 lets you clamp parts down quickly and exactly with the Professional Screw Clamps (including 45°/90° versions); support pipes up to 80 mm diameter in the Ø 50 135° prisms; clamp thin sheet and closed parts that cannot be held from behind, without tools, using the magnetic clamping bolts; set repeatable stops that bolt into the boreholes or slide in the elongated hole (0-100 mm); stop and position large components with the 500 S stops (0-200 mm); build adjustable angles with the L squares; extend the work area past the table edge with the G squares; store and move the tooling on the included tool cart (casters, 240 kg total load).
What does Set 4 add over Set 3?
Per Siegmund's set lists, Set 4 adds 4 Universal Stops 500 S; a pair (left/right) of Stop and Clamping Squares 500 G with rotation angle; 1 Tool Cart, and has more Professional Screw Clamps (14 instead of 10); Professional Screw Clamps 45°/90° (10 instead of 6); Prisms Ø 50 135° (6 instead of 4); Fast Clamping Bolts (30 instead of 24); Magnetic Clamping Bolts 68 (8 instead of 4); Universal Stops 150 L (10 instead of 8); Universal Stops 225 L (10 instead of 8); Stop and Clamping Squares 175 L (8 instead of 6). Both include the accessories set.
How do I keep the table and tooling clean with the included accessories?
The 283999 accessories set includes a bore brush plus CleanBasic and Anti-Spatter spray bottles. Siegmund describes CleanBasic as a water-based cleaner for daily table cleaning whose anti-corrosive ingredients prevent rust under normal conditions; it should not be used if rust has appeared from very high humidity. Anti-Spatter is a non-flammable, water-soluble agent that stops weld spatter burning into the table, so spatter can be wiped off after welding. Siegmund also advises cleaning surfaces and holes regularly and avoiding unsuitable abrasives or corrosive substances.
Do you ship Set 4 across Canada?
Yes. BTH Sales ships across Canada from its warehouse in St. Marys, Ontario.
