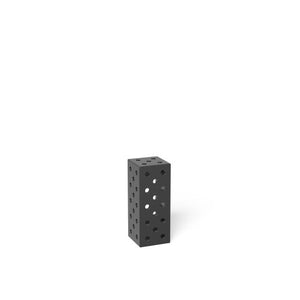

SIEGMUND SYSTEM 28 - SQUARE U-SHAPE PREMIUM LIGHT 1000x200x200
Siegmund offers Premium Light Square U-Shapes 200/200, which are all compatible with any 28mm fixture table. Manufactured in Germany, Siegmund's Premium Light U-Shapes are made with the highest quality standards on the market. Choose Siegmund and take on any job with confidence.
Siegmund's Premium Light Square U-Shape 200/200 (200mm sides), is a perfect accessory to extend an existing table, to use as a vertical fixture, and can firmly join tables together. Riser Blocks can also be mounted on the table using connector bolts (Item No. 280460.N).
If this Premium Light U-Shape can be used to extend a table beyond 1000mm, the Riser Block must be supported by a table leg.
Riser Blocks can be used in a combination of ways on the foundation rails, when combined with the legs (Item No. 280376).
Multiple Combinations of clamping options with other squares and stops are facilitated by the five-sided boreholes and optional diagonal hole arrangement. Orientation is simplified with the 100x100mm grid.
Technical Data
|
Item No.: 2-800370.P
Square U-Shape Premium Light 1000x200x200 Plasma nitrided
| Length (a) |
1000 mm |
| Width (b) |
200 mm |
| Height (c) |
200 mm |
| Material thickness (d) |
15 mm |
| Weight |
76 kg |
Product description
Thanks to the much harder but thinner material in Siegmund Premium Light, you can save up to 40% of weight compared to conventionally used material. For clamping on Premium Light with a clamping bolt, the adjusting ring (Item No. 280653.N) is required.
Square U-Shape 200x200 (sides 200 mm), ideally suited as a table extension, for vertical setups, as well as a sturdy connection between two welding tables. Riser Blocks are mounted to the table using connector bolts (Item No. 800562).
When used as a table extension exceeding 1000 mm, the Riser Block has to be supported by a table leg.
Combined with the legs (Item No. 280371), Riser Blocks can be flexibly used on the foundation rails.
A multitude of clamping- and combination options with other squares and stops are facilitated by the five-sided boreholes and the optional diagonal hole arrangement.
The 100x100 mm grid simplifies orientation.
From a length of 500 mm all U-shaped squares have mounting holes on the back to attach table legs.
Material: Through-hardened tool steel out of special alloy Siegmund X8.7.
‐ with diagonal grid
‐ for clamping with 280511 bolts Spacer Ring 800653.1.N is required
|
