Items 280303.P, 280303.1.P and 280303.2.P: Siegmund Clamping Rail 1000, 2000 and 3000, plasma nitrided, for System 28. Siegmund calls it an especially compact clamping tool and a versatile connection element; it is 100 x 100 mm in section with 25 mm material thickness and bores spaced 100 mm apart. BTH Sales is the exclusive Canadian importer of Siegmund.
Specifications
| Siegmund article | 280303.P (siegmund.com) | 280303.1.P (siegmund.com) | 280303.2.P (siegmund.com) |
|---|---|---|---|
| Description | Clamping Rail 1000 nitrided | Clamping Rail 2000 nitrided | Clamping Rail 3000 nitrided |
| System | Siegmund System 28 (Ø28 mm bores, 100 mm grid) | ||
| Length | 1000 mm (39.37 in) | 2000 mm (78.74 in) | 3000 mm (118.11 in) |
| Width | 100 mm (3.94 in) | ||
| Height | 100 mm (3.94 in) | ||
| Material thickness | 25 mm (0.98 in) | ||
| Weight | 48 kg (105.82 lb) | 95 kg (209.44 lb) | 141 kg (310.85 lb) |
| Finish | Nitrided | ||
| Bore spacing | 100 mm | ||
| GTIN | 4251805920970 | 4251805920987 | 4251805920994 |
Compatibility
- Fits: Siegmund System 28 welding tables and tooling with Ø28 mm bores on a 100 mm grid. Siegmund System 28 accessories also fit other 28 mm system welding tables with Ø28 mm bores on a 100 mm grid. Compatible tables from other manufacturers are often made from different materials and to different standards, so quality varies by manufacturer, compared with Siegmund's X8.7 tool steel.
- Not compatible: System 16 (Ø16 mm) tables; Siegmund builds each system around one bore size.
- Works with: other Siegmund System 28 clamps, bolts, stops, squares and U-squares on the same table.
- Care & grounding: anti-spatter spray, CleanBasic cleaner, Ground Connection Comfort (S16/S28).
What's included
Choose one option; each option is one piece:

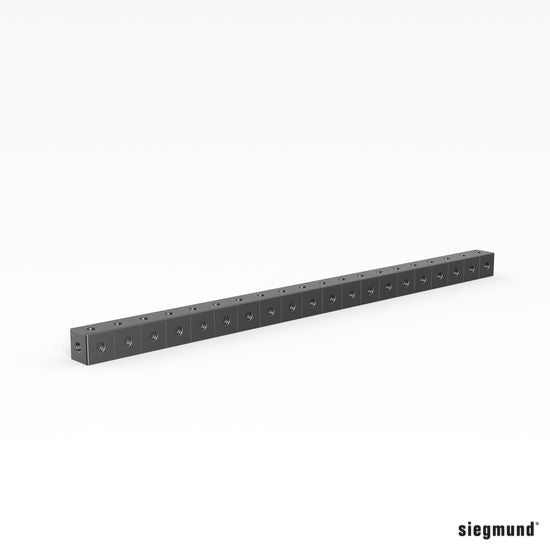

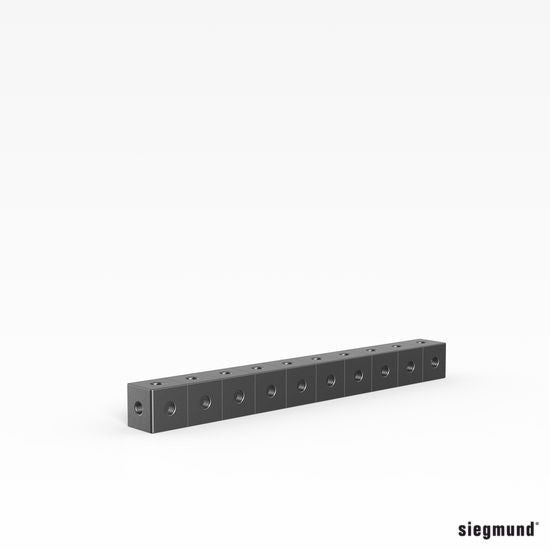

- 1 x Siegmund Clamping Rail 1000 nitrided (280303.P)
- 1 x Siegmund Clamping Rail 2000 nitrided (280303.1.P)

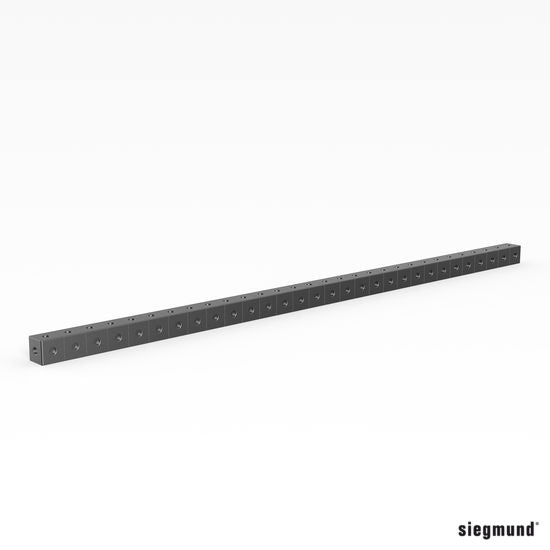

- 1 x Siegmund Clamping Rail 3000 nitrided (280303.2.P)
Engineering support & demos
Engineering support comes with your purchase: fixture design, layout drawings, CAD and 3D models, site visits and cobot cell planning, handled by Travis Hardcastle at BTH Sales or by Siegmund directly. BTH Sales does not sell cobots; for cobot cells we help with table integration and fixturing (see cobot welding with Siegmund tables). Live demos at our St. Marys showroom are by appointment (book a demo), and we offer video demos if you are outside Ontario. BTH Sales is family-owned, founded in 2001, and has been the exclusive Canadian importer of Siegmund since 2018.
Typical uses

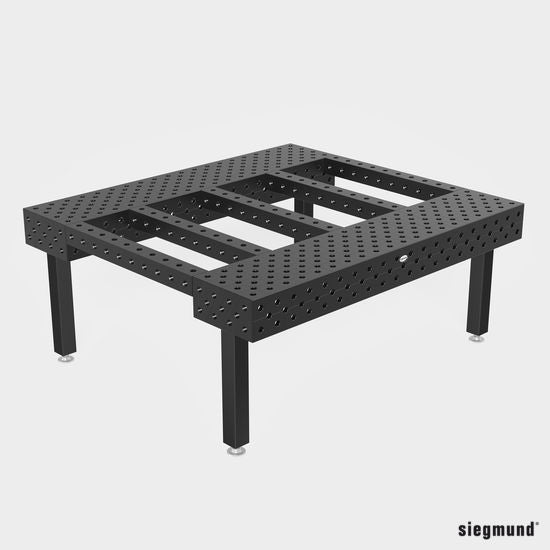

- Versatile connection element, e.g. between tables (Siegmund).

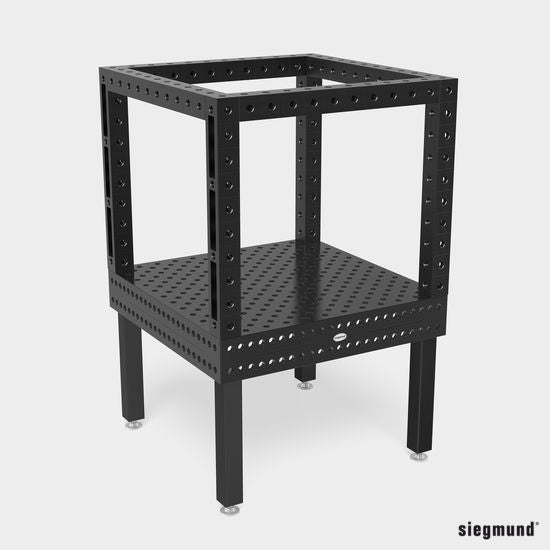

- Compact clamping tool (Siegmund).
- Siegmund describes System 28 as ideal for light to heavy components and designed for maximum clamping forces, multi-ton structures and high distortion forces.
Industries served: Siegmund's published practical examples show its welding tables and tooling in these sectors: Agriculture; Interior; Lighting and electrical engineering; Machine tools and plant construction; Measurement and testing technology; Motorcycle engineering; Revolving door systems; Robotic technology; Stage technology; Stainless steel processing; Steel, sheet metal and metal construction; Textile production; Train Construction; Vehicle construction; Welding technology; Woodworking.
Frequently Asked Questions
Which length do I need?
Siegmund offers 1000 mm (280303.P, 48 kg), 2000 mm (280303.1.P, 95 kg) and 3000 mm (280303.2.P, 141 kg), all 100 x 100 mm with 25 mm material thickness.
What is a clamping rail used for?
Siegmund describes it as an especially compact clamping tool used as a versatile connection element, with bores spaced 100 mm apart.
Will it fit other 28 mm welding tables?
Yes, if the table has Ø28 mm bores on a 100 mm grid. Check the bore diameter and grid before ordering. Compatible tables from other manufacturers are often made from different materials and to different standards, so quality varies by manufacturer, compared with Siegmund's X8.7 tool steel.
