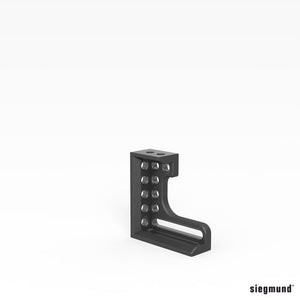

Item 280152.N: Siegmund Stop and Clamping Square 300 G, nitrided, stop on left, for System 28 welding tables with Ø28 mm bores. Made from GGG40 ductile cast iron, it is fixed or variably adjusted through its system bores and elongated hole and can be used as a table extension. BTH Sales is the exclusive Canadian importer of Siegmund.
Specifications
| Siegmund article | 280152.N (siegmund.com) |
|---|---|
| System | Siegmund System 28 (Ø28 mm bores, 100 mm grid) |
| Length | 200 mm (7.87 in) |
| Width | 75 mm (2.95 in) |
| Height | 300 mm (11.81 in) |
| Material thickness | 27 mm (1.06 in) |
| Weight | 6.52 kg (14.37 lb) |
| Finish | Nitrided |
| Stop side | Left |
| Material | GGG40 ductile cast iron |
| Adjustment | System bores plus elongated hole (fixed or variable) |
| GTIN | 4251805923001 |
Related products & accessories
Compatibility
- Fits: Siegmund System 28 welding tables and tooling with Ø28 mm bores on a 100 mm grid. Siegmund System 28 accessories also fit other 28 mm system welding tables with Ø28 mm bores on a 100 mm grid. Compatible tables from other manufacturers are often made from different materials and to different standards, so quality varies by manufacturer, compared with Siegmund's X8.7 tool steel.
- Siegmund System 28: fits every System 28 Siegmund table, including the Professional Extreme 8.7 and 8.8 PLUS tables listed on bthsales.ca; on a System 16 table it needs Siegmund's Reduction Bushing 28->16 (000546, suits boreholes and elongated holes) with System 16 bolts, or the Combination Fast Clamping Bolt 28->16 (000520); neither is listed on bthsales.ca.
- Works with: other Siegmund System 28 clamps, bolts, stops, squares and U-squares on the same table.
- Care & grounding: anti-spatter spray, CleanBasic cleaner, Ground Connection Comfort (S16/S28).
What's included
- 1 x Siegmund Stop and Clamping Square 300 G nitrided (280152.N)
Engineering support & demos
Engineering support comes with your purchase: fixture design, layout drawings, CAD and 3D models, site visits and cobot cell planning, handled by Travis Hardcastle at BTH Sales or by Siegmund directly. BTH Sales does not sell cobots; for cobot cells we help with table integration and fixturing (see cobot welding with Siegmund tables). Live demos at our St. Marys showroom are by appointment (book a demo), and we offer video demos if you are outside Ontario. BTH Sales is family-owned, founded in 2001, and has been the exclusive Canadian importer of Siegmund since 2018.
Typical uses
- Fixed or variable stops (Siegmund).
- Table extension (Siegmund).
- Siegmund describes System 28 as ideal for light to heavy components and designed for maximum clamping forces, multi-ton structures and high distortion forces.
Industries served: Siegmund's published practical examples show its welding tables and tooling in these sectors: Agriculture; Interior; Lighting and electrical engineering; Machine tools and plant construction; Measurement and testing technology; Motorcycle engineering; Revolving door systems; Robotic technology; Stage technology; Stainless steel processing; Steel, sheet metal and metal construction; Textile production; Train Construction; Vehicle construction; Welding technology; Woodworking.
Frequently Asked Questions
Can the 300 G be used as a table extension?
Yes. Siegmund says it can be fixed and variably adjusted through its system bores and elongated hole and used versatilely, for example as a table extension. It is GGG40 ductile cast iron.
Will it fit other 28 mm welding tables?
Yes, if the table has Ø28 mm bores on a 100 mm grid. Check the bore diameter and grid before ordering. Compatible tables from other manufacturers are often made from different materials and to different standards, so quality varies by manufacturer, compared with Siegmund's X8.7 tool steel.
