Siegmund System 28 - Universal Bolt Basic

  • Sale
  • Regular price $110.00
Shipping calculated at checkout.


SIEGMUND SYSTEM 28 - UNIVERSAL BOLT BASIC



Siegmund offers a wide range of Bolts for System 28, 28mm fixture tables. Manufactured in Germany, Siegmund's Bolts are made with the highest quality standards on the market. Choose Siegmund and take on any job with confidence.



Technical Data:

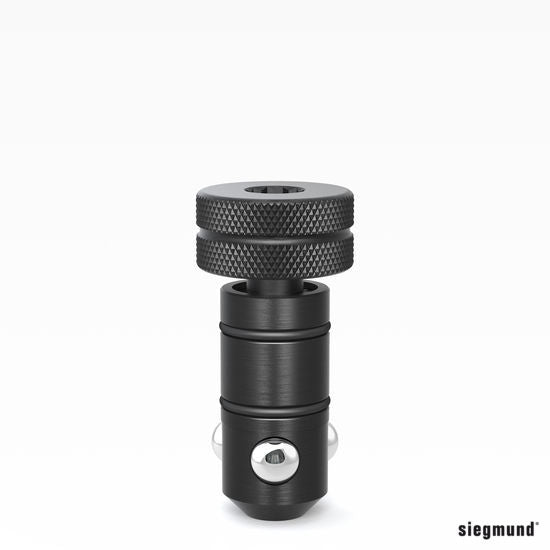

Item No.: 2-280536

Universal Bolt Basic double ‐ burnished

Length (a) 84 mm
Weight 0,43 kg
Shearing Force 200 kN
Tightening Torque Steel 25 Nm
Tensile Force Steel  25 kN



Product description
Burnished Universal Bolt, perfect connection element for Siegmund elements. It is used when elements of different material thickness are being interconnected. The clamping range of the Universal Bolt Basic is 42 to 57 mm.
The Universal Bolt Long has a clamping range of 67 to 82 mm. The Universal Bolt Comfort is self centered inside the boreholes by the O-ring. The large balls shift the center of pressure towards the outside, and prevent a displacement of the material due to low surface pressure, when there are high clamping forces in the direction of the borehole.

The Universal Bolt Comfort is clamped with the integrated handwheel or with a hex wrench 14 (Item No. 280854).

Note: This bolt MUST NOT be used for connecting tables and U-shaped squares!

The borehole should be cleaned with the brush before using this simple, inexpensive bolt.

Clamping torque dependent on table type.

‐ for clamping 2 components
‐ with hexagon socket (Size 14)

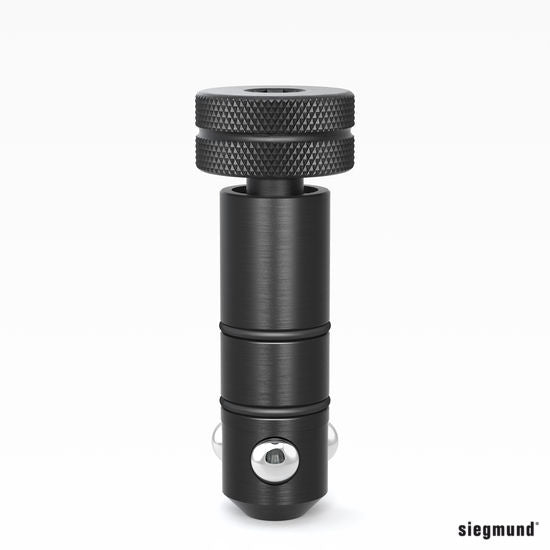

Item No.: 2-280537

Universal Bolt Basic triple ‐ burnished

Length (a) 108 mm
Weight 0,55 kg
Shearing Force 200 kN
Tightening Torque Steel 25 Nm
Tensile Force Steel  25 kN



Product description
Burnished Universal Bolt, perfect connection element for Siegmund elements. It is used when elements of different material thickness are being interconnected. The clamping range of the Universal Bolt Basic is 42 to 57 mm.
The Universal Bolt Long has a clamping range of 67 to 82 mm. The Universal Bolt Comfort is self centered inside the boreholes by the O-ring. The large balls shift the center of pressure towards the outside, and prevent a displacement of the material due to low surface pressure, when there are high clamping forces in the direction of the borehole.

The Universal Bolt Comfort is clamped with the integrated handwheel or with a hex wrench 14 (Item No. 280854).

Note: This bolt MUST NOT be used for connecting tables and U-shaped squares!

Clamping torque dependent on table type.

‐ for clamping 3 components
‐ with hexagon socket (Size 14)
