Vertical round pipes for the Siegmund System 28 clamps 280604 and 280625, in 250, 300, 500 and 800 mm lengths with a 28 mm diameter. Siegmund says they are fixed with the adjusting ring 280653.N and can also act as a horizontal brace. BTH Sales is the exclusive Canadian importer of Siegmund.
Specifications
| Item no. | 280677 (siegmund.com) | 280677.1 (siegmund.com) | 280677.2 (siegmund.com) | 280677.3 (siegmund.com) |
|---|---|---|---|---|
| Siegmund name | Vertical Round Pipe 250 | Vertical Round Pipe 300 | Vertical Round Pipe 500 | Vertical Round Pipe 800 |
| System | Siegmund System 28 (Ø28 mm bores, 100 mm grid) | |||
| Length | 250 mm (9.84 in) | 300 mm (11.81 in) | 500 mm (19.69 in) | 800 mm (31.50 in) |
| Diameter | 28 mm (1.10 in) | |||
| Weight | 0.91 kg (2.01 lb) | 1.1 kg (2.43 lb) | 1.7 kg (3.75 lb) | 2.7 kg (5.95 lb) |
Works with this product
-

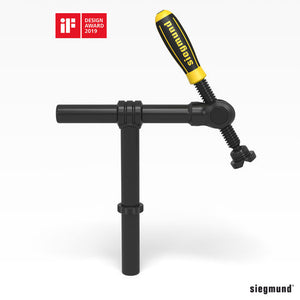

Siegmund System 28 - Pipe Clamp Universal
$173.00
-

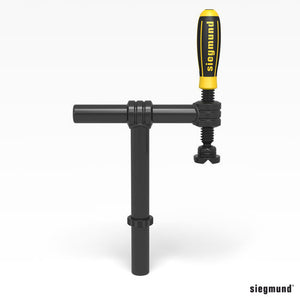

Siegmund System 28 - Basic Pipe Clamp 180°
$144.00
-
Siegmund System 28 - Spare Parts for Bolts
From $5.00
-

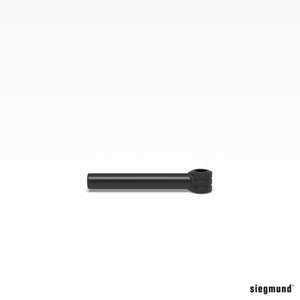

Siegmund System 28 - Horizontal Round Pipe
From $32.00
-
Siegmund System 16 & 28 - Anti-Splatter
From $38.00
-
Siegmund System 16 & 28 - Clean Basic
From $32.00
-
Siegmund System 16 & 28 - Ground Connection Comfort
$104.00
Compatibility
- Fits: Siegmund System 28 welding tables and tooling with Ø28 mm bores.
- Not compatible: System 16 (Ø16 mm) tables; Siegmund builds each system around one bore size.
- Related products: 280604 Siegmund System 28 - Pipe Clamp Universal, 280625 Siegmund System 28 - Basic Pipe Clamp 180°, 280653.N Siegmund S28 Bolt Spare Parts, 280644.N Siegmund System 28 - Horizontal Round Pipe.
- Care & grounding: anti-spatter spray, CleanBasic cleaner, Ground Connection Comfort (S16/S28).
What's included
Choose one option; each option is one piece:
- 1 x Siegmund Vertical Round Pipe 250 (280677)
- 1 x Siegmund Vertical Round Pipe 300 (280677.1)
- 1 x Siegmund Vertical Round Pipe 500 (280677.2)
- 1 x Siegmund Vertical Round Pipe 800 (280677.3)
Typical uses
- Replacing or lengthening the vertical pipe on a 280604 or 280625 clamp
- Using as a horizontal brace
Engineering support & demos
Engineering support comes with your purchase: fixture design, layout drawings, CAD and 3D models, site visits and cobot cell planning, handled by Travis Hardcastle at BTH Sales or by Siegmund directly. Live demos at our St. Marys showroom are by appointment (book a demo), and we offer video demos if you are outside Ontario. BTH Sales is family-owned, founded in 2001, and has been the exclusive Canadian importer of Siegmund since 2018.
Industries served: Siegmund's published practical examples show its welding tables and tooling in these sectors: Agriculture; Interior; Lighting and electrical engineering; Machine tools and plant construction; Measurement and testing technology; Motorcycle engineering; Revolving door systems; Robotic technology; Stage technology; Stainless steel processing; Steel, sheet metal and metal construction; Textile production; Train Construction; Vehicle construction; Welding technology; Woodworking.
Ships across Canada by freight from 5 Industrial Rd, St. Marys, ON N4X 1G2, or pick up from our warehouse. Email sales@bthsales.ca or call +1-519-461-1381 for a freight quote and delivery estimate.
Frequently Asked Questions
Which clamps do these vertical pipes fit?
Siegmund lists them for the System 28 clamps 280604 and 280625.
How are they fixed?
Siegmund says the vertical pipe is fixed in the system holes with the adjusting ring 280653.N. The pipes can also be used as a horizontal brace.
