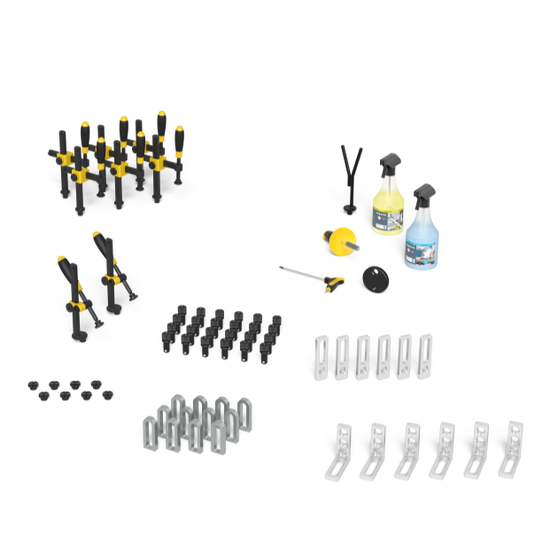

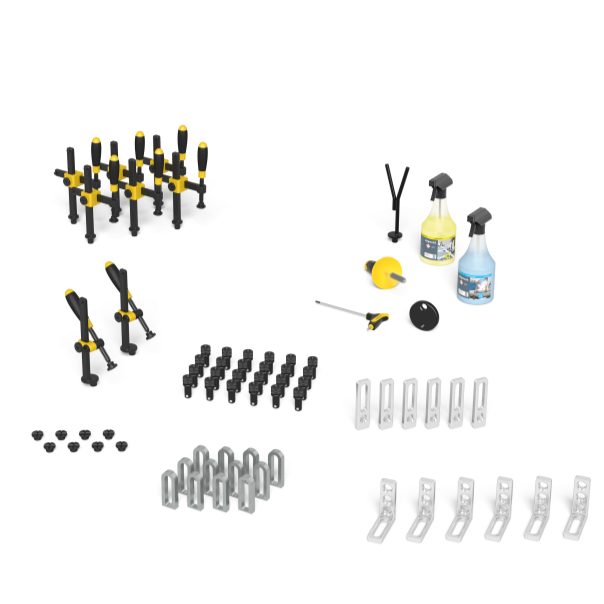

Siegmund Set 1 Aluminum for System 16 (item no. 2-163100.A) is a 65-piece tooling kit for Siegmund System 16 welding and clamping tables. It includes 8 clamps, 8 prisms, 24 bolts, 18 stops and 6 squares, plus the Siegmund accessories set 163999. Order it in Canada from BTH Sales.
Key specs
- System: Siegmund System 16 (Ø 16 mm boreholes)
- Item no.: 2-163100.A
- Set weight: 16.12 kg (BTH listing)
- Materials: as listed per item in the table above (Siegmund item descriptions)
- Components made by Bernd Siegmund GmbH, Germany
What's included
| Qty | Item no. | Name |
|---|---|---|
| 6 | 160610 | Professional Screw Clamp burnished / nitrided |
| 2 | 160630 | Professional Screw Clamp 45°/90° burnished |
| 8 | 160656.PA | Prism for Screw Clamps Polyamide |
| 24 | 160511 | Fast Clamping Bolt without slot double burnished |
| 12 | 160412 | Flex Stop 12x83 Aluminum |
| 6 | 160420.A | Universal Stop 115 L Aluminum |
| 6 | 160110.A | Stop and Clamping Square 90 L Aluminum |
| 1 | 163999 | Accessories-Set (included in Set 1 - Set 5) |
Total: 65 pieces (per BTH Sales' kit list; component names from Siegmund item pages).
Accessories set 163999 contents
- 1 × 160402.N Eccentric Stop Ø 75 with M10 thread nitrided
- 1 × 160852 Hex wrench Size 4
- 1 × 160820 Brush Ø 17 with protecting cover
- 1 × 000914 CleanBasic 1 liter spray bottle
- 1 × 000924 Anti-Spatter 1 liter spray bottle
- 1 × 160920 Burner Holder burnished
Compatibility
It fits Siegmund System 16 welding tables (Ø 16 mm bores). It is not compatible with System 28 tables, which use 28 mm bores.
Compare System 16 sets
- Set 1 – System 16 (29 pcs)
- Set 2 – System 16 (55 pcs)
- Set 3 – System 16 (73 pcs)
- Set 4 – System 16 (100 pcs)
- Set 5 – System 16 (118 pcs)
- Basic Set 1 – System 16 (31 pcs)
- Basic Set 2 – System 16 (45 pcs)
- Robotic Starter Set – System 16 (29 pcs)
- Robotic Toggle Starter Set – System 16 (31 pcs)
- All Siegmund System 16 table kits & sets
Frequently Asked Questions
Which tables does Set 1 Aluminum fit?
It fits Siegmund System 16 welding tables (Ø 16 mm bores). It is not compatible with System 28 tables, which use 28 mm bores.
Can I use the set to clamp aluminum parts?
Yes, with care: Siegmund says the Fast Clamping Bolts must only be tightened hand-tight when clamping aluminum parts, as clamping torque depends on the material. The polyamide prisms for the screw clamps are meant for scratch-prone surfaces.
How do I keep the table and tooling clean with the included accessories?
The 163999 accessories set includes a bore brush plus CleanBasic and Anti-Spatter spray bottles. Siegmund describes CleanBasic as a water-based cleaner for daily table cleaning whose anti-corrosive ingredients prevent rust under normal conditions; it should not be used if rust has appeared from very high humidity. Anti-Spatter is a non-flammable, water-soluble agent that stops weld spatter burning into the table, so spatter can be wiped off after welding. Siegmund also advises cleaning surfaces and holes regularly and avoiding unsuitable abrasives or corrosive substances.
Do you ship Set 1 Aluminum across Canada?
Yes. BTH Sales ships across Canada from its warehouse in St. Marys, Ontario. Most orders ship within 48 hours of receipt.
