Kifix KF-017 DB vertical toggle clamp dimension drawing with side, top and 3D views in mm

Kifix KF-017 DB Vertical Hold-Down Toggle Clamp – 374 lbf

SKU: KF-017 DB

Kifix

$22.00 CAD

Sale Sold out

Shipping calculated at checkout.

Quantity must be 1 or more

The Kifix KF-017 is a vertical hold-down toggle clamp rated at 170 kgf (374 lbf) holding force, with an M8 spindle thread, for general fixturing. This model has a flanged base, U-bar arm. Kifix toggle clamps are made in Brazil, and BTH Sales is the exclusive Canadian importer of Kifix.

Ships across Canada from our St. Marys, Ontario warehouse.

Choosing between the KF-017 and the KF-012? The KF-017 is rated at 170 kgf (374 lbf) with an M8 spindle thread and 175 mm overall height; the lighter KF-012 is 90 kgf (198 lbf), M6 and 128 mm.

Key specs

Holding force	170 kgf (374 lbf)
Opening angle	100°
Spindle thread	M8
Base	Flanged base
Arm	U-bar
Weight	0.400 kg (0.881 lb)
Brand	Kifix (Brazil)

Dimensions

Letters refer to the Kifix dimension drawing in the image gallery.

A	175 mm (6.89 in)
B	90 mm (3.54 in)
C	32 mm (1.26 in)
D	19 mm (0.75 in)
E	32 mm (1.26 in)
F	35 mm (1.38 in)
G	49 mm (1.93 in)
H	55 mm (2.17 in)
J	7.0 mm (0.28 in)

Compatibility

Planning a fixture on a welding table? See our Siegmund welding tables and tooling, System 16 clamps and System 28 clamps. The KF-017 DB adapter fit is listed below.

Mounting on a Siegmund welding table

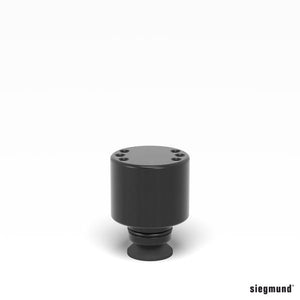

Fits: the KF-017 DB (flanged base) mounts on Siegmund System 28 welding tables with the Siegmund System 28 toggle clamp adapter 280715 or 280715.1 (Siegmund S28 Adapter with Hole Pattern Ø50). Its 32 × 19 mm base hole pattern matches the adapter's hole pattern.

System 16 (on request): the KF-017 DB also mounts on Siegmund System 16 welding tables with the Siegmund System 16 toggle clamp adapter 160715, which matches the same 32 × 19 mm base hole pattern. The 160715 adapter is available on request; contact sales@bthsales.ca.

Typical uses

Quick-action hold-down in jigs and fixtures: Kifix vertical clamps lock with the handle upright, on an adaptable base, with an arm that carries the clamping spindle
Welding fixtures: Kifix makes adapters that mount its quick-action clamps directly on welding tables, to simplify welding and improve efficiency and precision

Industries served: Kifix makes quick-action clamps for all industrial segments, highlighting aeronautical, automotive, agricultural, furniture, food, chemical, pharmaceutical, cosmetic and metal-mechanical.

What's included

1 × Kifix KF-017 clamp.

Frequently Asked Questions

Can I mount the KF-017 on a Siegmund welding table?

Yes, the KF-017 DB has a 32 × 19 mm base hole pattern that matches Siegmund toggle-clamp adapters 280715 and 280715.1 (System 28). The System 28 adapters are available from BTH Sales (Siegmund System 28 Adapter With Hole Pattern). For Siegmund System 16 tables, the System 16 toggle clamp adapter 160715 is available on request; contact sales@bthsales.ca.

How does this compare with the other Kifix vertical clamps we sell?

By holding force and spindle thread: KF-012 DB 90 kgf (198 lbf), M6; KF-211 DB 150 kgf (330 lbf), M8; KF-017 DB 170 kgf (374 lbf), M8; KF-311 DB 250 kgf (550 lbf), M10; KF-411 DB 650 kgf (1430 lbf), M10; KF-111 DB 680 kgf (1499 lbf), M10; the KF-MP series 160 to 450 kgf (352 to 990 lbf), M6 or M8. Choose the clamp whose holding force covers your job.
