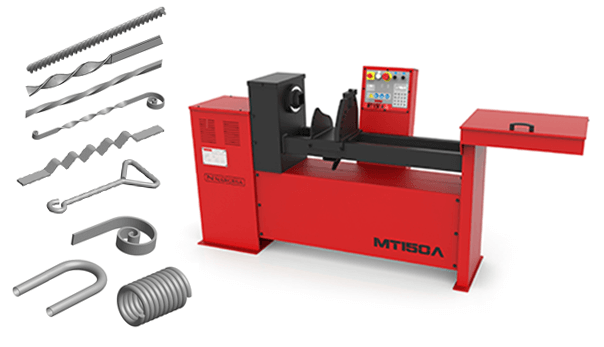

MT150A Automatic Twisting Machine

The Nargesa MT150A Automatic Twisting Machine is a versatile cold-working machine designed for producing decorative and ornamental metal components with consistent, repeatable results. With a maximum twisting capacity of 20 mm (3/4 inch) square bar and a maximum bending capacity of 16 mm (5/8 inch) round or square bar, the MT150A can create a wide range of twists, scrolls, bends, hooks, rings, chains and other decorative shapes.

Designed specifically for ornamental ironwork and decorative metal fabrication, the MT150A is well suited for manufacturing gates, fences, window grilles, railings, balusters, furniture and other architectural metalwork. It can work with square and round bar, tubular profiles, handrail and flat bar, giving fabricators the flexibility to produce both standard designs and custom pieces.

Its integrated piece programmer allows operators to program the starting and ending points of each piece, count completed parts, automatically return the machine to its starting position and store up to 8 different programs. This makes it possible to reproduce the same design repeatedly without manually measuring and setting each piece.

The MT150A combines a robust welded and machined steel monoblock with a reliable motor-reducer transmission using treated flat pinions. Adjustable rotation speed, simple controls and included tooling make it suitable for both custom fabrication and repeat production.

All Nargesa products are manufactured in Spain using standardized electrical and mechanical components from leading European manufacturers.

Key Features

• 20 mm (3/4-inch) square bar twisting capacity for a wide range of ornamental applications.
• 16 mm (5/8-inch) round or square bar bending capacity.
• Handles flat bar up to 35 × 10 mm (1-1/4 × 3/8 inches) for twisting and bending.
• Cold-working operation eliminates the need to heat material before forming.
• Produces twists, scrolls, rings, hooks, links, chains, baskets and other decorative shapes.
• 8 programmable memories allow frequently used designs to be stored and reproduced.
• Piece counter helps track production quantities.
• Automatic return function returns the machine to its starting position after an operation.
• Adjustable rotation speed from 0–9 rpm for controlled forming and positioning.
• Forward and reverse rotation for flexible operation.
• Welded and machined steel monoblock construction provides a rigid working platform.
• Treated flat-pinion transmission provides reliable power transfer and durability.
• Adjustable millimeter scale assists with repeatable positioning.
• Comprehensive standard tooling allows the machine to perform multiple ornamental operations.
• Metric and imperial tooling options accommodate different material standards.
• Optional tooling expands the machine's capabilities for specialized ornamental designs.
• Custom fitting plates can be supplied for fabricators developing their own decorative profiles.
• Palletized lower bench makes the machine easier to reposition within the workshop.
• Delivered fully assembled.

Applications

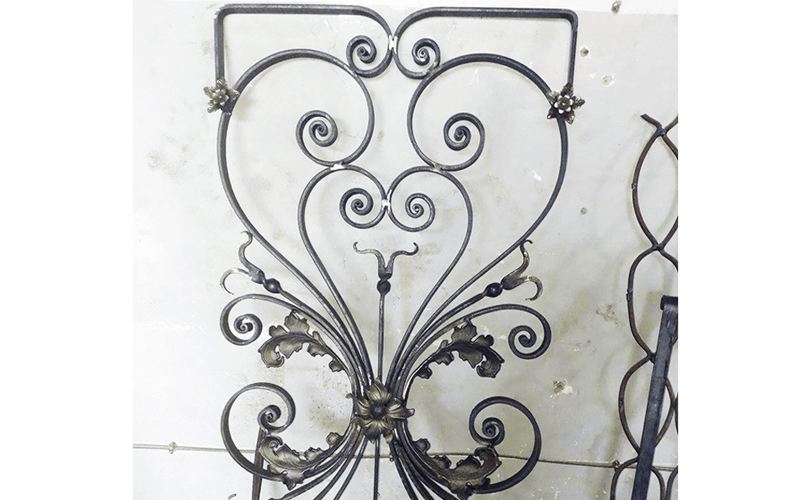

The MT150A is designed primarily for ornamental ironwork, architectural metal fabrication and decorative blacksmithing.

Typical applications include:

• Gates and entrance gates.
• Fences.
• Window grilles.
• Railings and handrails.
• Balusters.
• Balconies.
• Decorative doors and windows.
• Metal furniture.
• Tables and chairs.
• Decorative panels.
• Architectural metalwork.
• Custom blacksmithing.
• Ornamental components for fabrication and construction.

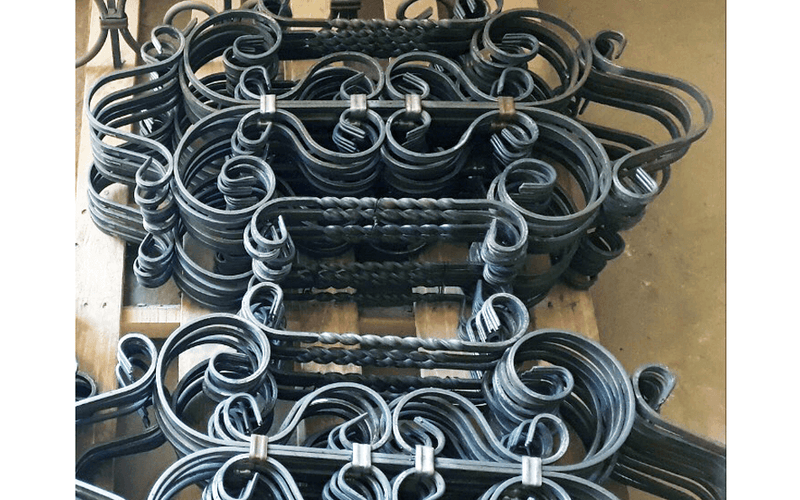

The machine can produce:

• Twisted square bars.
• Twisted round bars.
• Scrolls and spirals.
• Rings.
• Hooks.
• Links.
• Chains.
• Braided bars.
• Decorative baskets.
• Belly Top railing components.
• British rail components.
• Custom decorative shapes.

Why Choose the Nargesa MT150A?

The MT150A combines several ornamental forming operations into a single machine, allowing fabricators to produce a much wider variety of decorative components without relying on separate equipment for each operation.

Its 20 mm twisting capacity and 16 mm bending capacity cover many of the material sizes commonly used in ornamental ironwork, while the extensive tooling selection allows fabricators to produce everything from basic twists and rings to scrolls, hooks, chains and specialized railing components.

The automatic piece programmer is particularly useful for repeat production. Once a design is programmed, the machine can repeatedly perform the same movement while counting completed pieces and returning to the starting position. This helps improve consistency when producing multiple identical components.

At the same time, the MT150A remains straightforward to operate. Its adjustable speed, forward/reverse controls and millimeter positioning scale make it practical for custom one-off work as well as production runs.

Included Accessories

The MT150A includes a comprehensive tooling package for common ornamental metalworking operations, including:

• Square-bar twisting tooling for 12 × 12 mm and 18 × 18 mm bar.
• Square-bar twisting tooling for 14 × 14 mm and 16 × 16 mm bar.
• Square-bar twisting tooling for 20 × 20 mm bar.
• 80 mm internal-diameter ring tooling.
• Braiding tooling for three 8 mm round bars.
• 80 mm spiral starting die.
• 100 mm spiral starting die.
• 120 mm spiral tooling.
• 220 mm spiral tooling.
• Hook, link and chain tooling.
• Metric and imperial tooling options.
• Programmable piece counter and memory functions.

Optional Accessories

• British rail tooling.
• Belly Top railing tooling.
• Flat-bar folding tooling.
• Edge-scroll tooling.
• Decorative basket tooling.
• Custom fitting plates for special designs.
• Complete NIMF15 wooden packaging.
