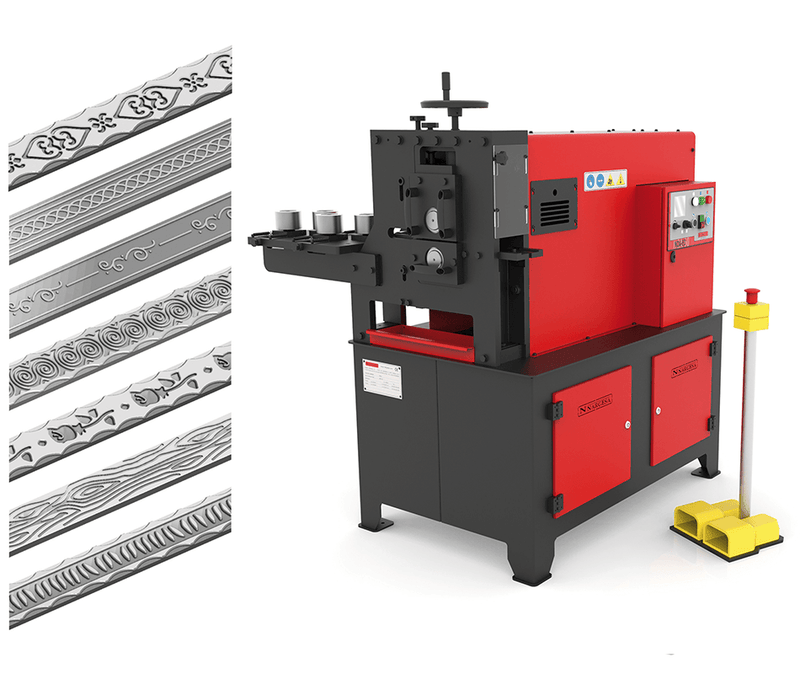

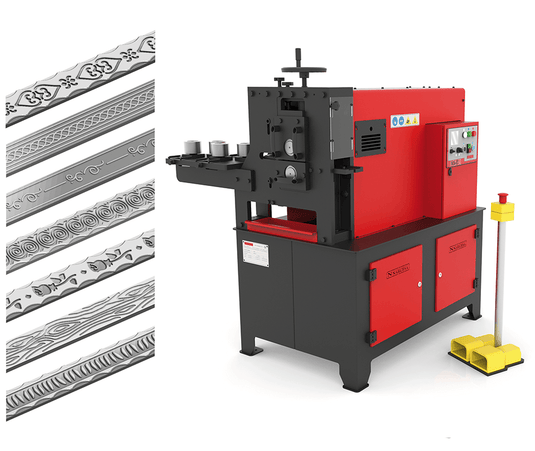

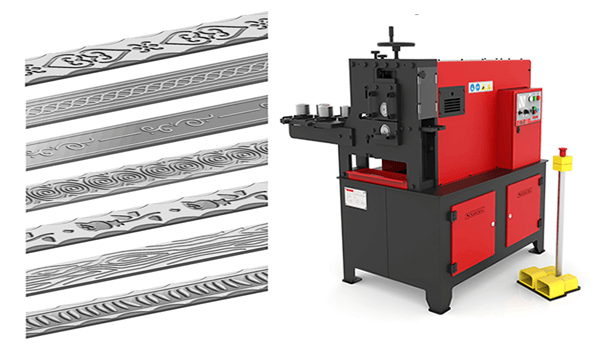

The Nargesa NOA60 is a cold embossing machine that rolls decorative relief patterns into square tube up to 60 × 60 mm, solid square bar up to 20 × 20 mm and flat plate up to 60 × 10 mm. It is built for ornamental ironwork shops producing railings, gates and fences.
Key specs
| Square tube | Up to 60 × 60 mm (2.36 × 2.36 in) |
|---|---|
| Solid square bar | Up to 20 × 20 mm (0.79 × 0.79 in) |
| Flat plate | Up to 60 × 10 mm (2.36 × 0.39 in) |
| Working speed | 0–10 m/min, adjustable |
| Motor | 5.5 kW (7.5 HP) at 1400 rpm |
| Power supply | 230/400 V three-phase, 21/12 A (other voltages available) |
| Drive | Tempered gear transmission; upper and lower shafts motorized |
| Straightener | 7 adjustable rollers (3 vertical, 4 horizontal) |
| Machine dimensions | 1230 × 780 × 1400 mm (48.4 × 30.7 × 55.1 in) |
| Weight | 746 kg (1,645 lb) |
What's included
- 7-roller straightening device
- Palletized base for moving the machine
Options
- Handrail embossing rollers 01–25 and 201–202 (roller 23 also embosses square bar)
- Handrail and square bar embossing roller set 26
- Square bar embossing roller sets 301, 302, 303 and 304
- Pipe embossing roller sets for 25 mm (1"), 30 mm (1 1/4"), 35 and 40 mm pipe; for 50 and 60 mm pipe; and for 1 1/2", 2" and 2 1/2" pipe
- Roller for the side marking of flat bar
- Inlet guides for handrail (12 mm or 1/2" and 15 mm; 25 and 30 mm; 1" and 1 1/4"; 40 and 50 mm; 1 1/2" and 2"; 60 mm), for square bar and edge square bar, and for pipe (25 and 30 mm; 35 and 40 mm; 50 mm; 60 mm; 1 1/2"; 2"; 2 1/2")
- Roller stand
- Custom-made moulds on request
Features and applications
Key Features
- Cold embossing process – Creates decorative designs in relief without requiring the material to be heated.
- Maximum 60 × 60 mm square tube capacity – Handles larger tubular profiles used in ornamental and architectural metalwork.
- Maximum 20 × 20 mm solid square bar capacity – Suitable for common decorative square-bar applications.
- Maximum 60 × 10 mm plate capacity – Allows decorative embossing of flat material.
- Interchangeable embossing rollers – Supports a wide range of patterns and material profiles.
- Custom roller designs available – Allows manufacturers to create exclusive decorative patterns and proprietary products.
- Motorized upper and lower shafts – Provide synchronized material movement through the embossing process.
- Adjustable working speed from 0 to 10 m/min – Allows production speed to be adapted to the material, design and application.
- Integrated seven-roller straightening system – Helps straighten material as it exits the embossing process.
- Three vertical and four horizontal straightening rollers – Provides multi-directional material alignment.
- Single-operator operation – One worker can feed and process material through the machine.
- High-production capability – Designed for medium- and large-scale ornamental metalworking.
- Up to 20 hours of operation per day – Built for extended production runs.
- Tempered and ground shafts – Designed for demanding industrial operation.
- Tempered gear transmission – Provides robust power transmission.
- Heavy-duty roller bearings – Support continuous operation under production conditions.
- Suitable for multiple metals – Can be used with steel, aluminium, brass, bronze and copper alloys, depending on the tooling and application.
- Palletized lower bench – Makes the machine easier to move and position within the workshop.
- Fully industrial construction – Built for professional ornamental and decorative metal fabrication.
Applications
The Nargesa NOA60 is designed for ornamental metalworking and decorative fabrication where embossed patterns can add visual appeal and value to finished components.
Typical applications include:
- Ornamental railings
- Handrails
- Fences
- Gates
- Window trim
- Door trim
- Decorative bars
- Balustrades
- Decorative panels
- Metal grilles
- Forged ironwork
- Architectural metalwork
- Tables
- Chairs
- Garden furniture
- Urban furniture
- Custom ornamental components
The NOA60 can be configured for different applications using interchangeable rollers designed for:
- Solid square bar
- Square tubing
- Rectangular tubing
- Handrail profiles
- Decorative profiles
- Custom embossed patterns
The machine can be used with different metals depending on the application and tooling, including:
- Steel
- Aluminium
- Brass
- Bronze
- Copper alloys

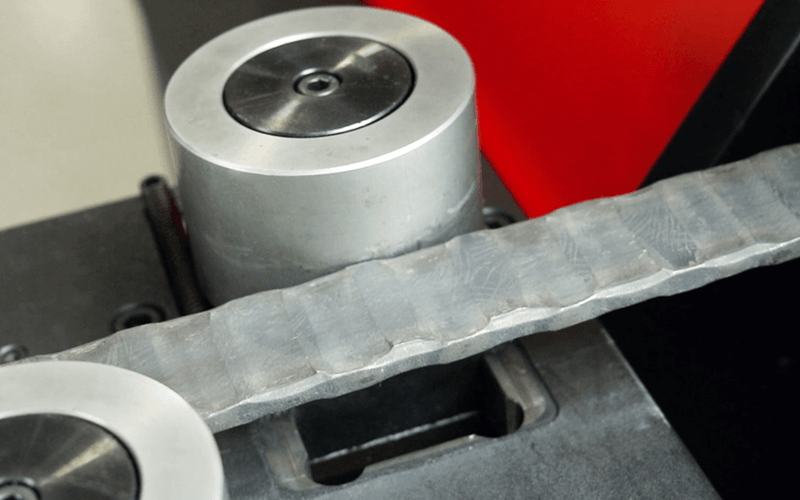

One of the machine's primary advantages is its ability to transform standard metal profiles into decorative components without a material-removal process. The embossing rollers shape the surface of the material to create patterns in relief, helping manufacturers produce higher-value finished products from common steel and metal profiles.
Why Choose the Nargesa NOA60?
The Nargesa NOA60 is designed for fabricators that want to combine ornamental capability with production efficiency.
Rather than relying on hot-forging or individual manual decorative operations, the NOA60 uses a controlled cold embossing process to repeatedly apply decorative patterns to metal components.
The machine is particularly well suited to medium- and large-scale production. A single operator can feed material into the embossing system while the motorized rollers automatically move the material through the machine.
The adjustable speed range of 0 to 10 metres per minute provides flexibility for different materials and patterns, while the integrated seven-roller straightening system helps ensure material remains properly aligned after embossing.
Another major advantage is the extensive roller selection. Fabricators can choose from rollers for different bar, tube and handrail profiles, while Nargesa can also manufacture custom embossing rollers based on customer designs.
For fabricators producing custom architectural components, this creates an opportunity to offer exclusive designs that cannot easily be replicated using standard decorative profiles.
The NOA60 can help manufacturers:
- Add decorative value to standard metal profiles
- Create repeatable embossed designs
- Produce custom ornamental components
- Increase production efficiency
- Reduce reliance on hot-forming processes
- Operate with a single worker
- Produce thousands of components during a working day
- Create exclusive patterns using custom roller designs
Video
Compare Nargesa models
- Nargesa MT500A automatic twisting machine
- Nargesa MT150A automatic twisting machine
- Nargesa NF70 hot wrought iron end machine
- Nargesa PC16 hot wrought iron end machine
- Nargesa PV21 hot forging press
- All Nargesa machines
Frequently Asked Questions
What sizes can the NOA60 emboss?
Square tube up to 60 × 60 mm, solid square bar up to 20 × 20 mm and flat plate up to 60 × 10 mm.
What power does the NOA60 need?
Nargesa specifies a 5.5 kW (7.5 HP) motor on a 230/400 V three-phase supply (21/12 A). Other voltages are available. Confirm your shop’s voltage with BTH Sales before ordering.
Which metals can it emboss?
Nargesa lists steel and aluminum as well as brass, bronze and copper alloys.
Are the embossing rollers included?
The 7-roller straightener is included. Design rollers are chosen from Nargesa’s catalogue, and custom moulds can be made on request.
How long does delivery take?
BTH Sales ships across Canada from St. Marys, ON. This machine has a 4–6 week lead time; contact us for an exact date. Please inquire if you need lift gate delivery.
