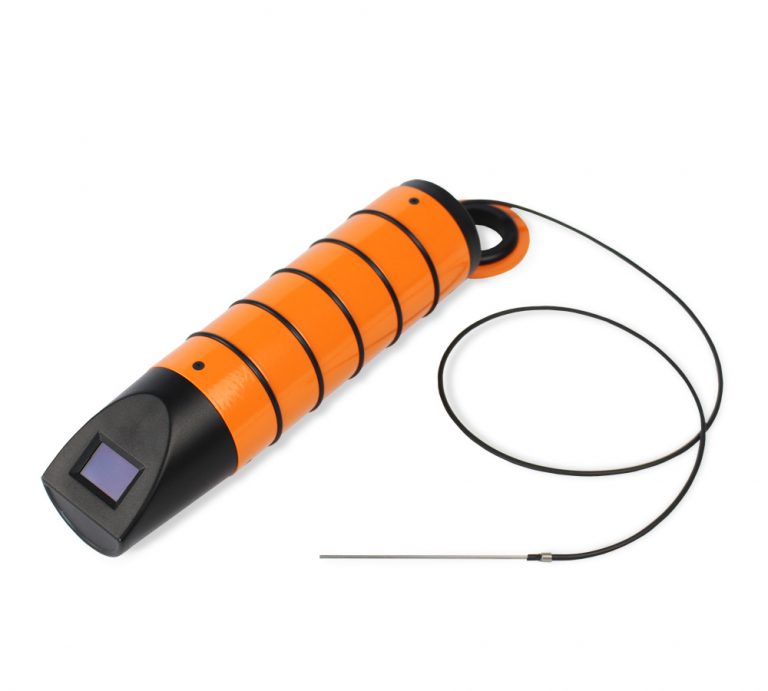

Orbital PRO2stick Oxygen Analyzer
The Orbital Service PRO2stick Oxygen Analyzer is a portable residual oxygen analyzer designed to accurately monitor oxygen levels during tube and pipe purging for orbital TIG welding and high-purity fabrication.
Capable of measuring oxygen concentrations from 1,000 ppm down to 1 ppm O₂, the PRO2stick helps operators verify purge quality before and during welding, reducing the risk of oxidation while improving weld consistency and quality.
Built with a durable aluminum housing, the PRO2stick features a unique shake-to-measure activation for rapid startup, an integrated Bluetooth® Class 1 module for wireless connectivity, and a high-resolution OLED display with automatic screen rotation. Designed for demanding fabrication environments, it delivers reliable oxygen measurements without being affected by hydrogen, humidity, or ozone, making it ideal for stainless steel process piping, pharmaceutical systems, semiconductor fabrication, and other high-purity welding applications.
Key Features
- Residual oxygen analyzer for orbital welding and weld purging applications
- Measures oxygen concentrations from 1,000 ppm down to 1 ppm O₂
- Reliable sensor performance unaffected by hydrogen, humidity, or ozone
- Fast startup with shake-to-measure activation in less than 5 seconds
- Bluetooth® Class 1 connectivity for wireless communication with compatible Orbital Service welding systems, PCs, and mobile devices
- Wireless range up to 100 m (328 ft) under ideal conditions
- 1" OLED colour display with automatic 180° screen rotation
- Integrated audible signal horn for operator alerts
- LED battery status indicator with built-in flashlight
- Rechargeable battery providing up to 11 hours of runtime
- Automatic power-off to extend battery life
- Compact aluminum housing for durability and portability

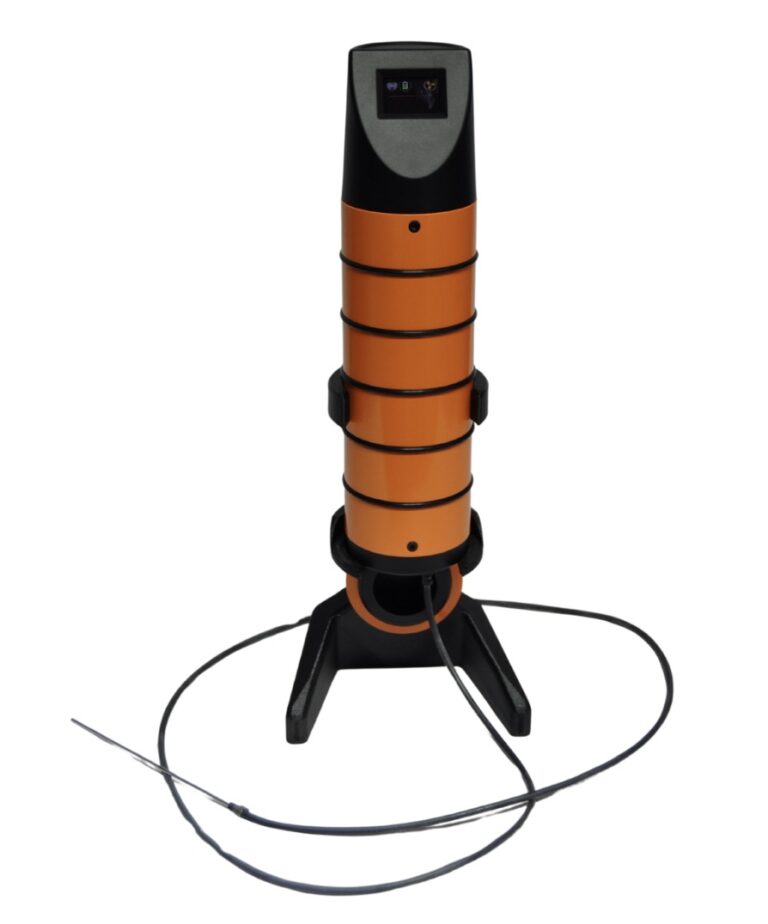

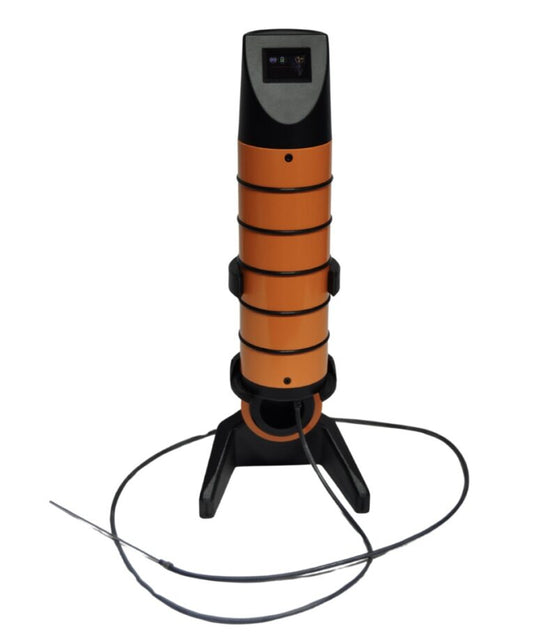

- Optional vertical stand for stationary monitoring applications
Applications
The PRO2stick is designed for monitoring residual oxygen levels during weld purging where internal weld quality is critical.
Typical applications include:
- Orbital TIG welding
- Stainless steel tube and pipe fabrication
- High-purity process piping
- Pharmaceutical and biotechnology systems
- Semiconductor and ultra-high-purity tubing
- Food and beverage processing equipment
- Instrumentation and process gas tubing
- Shop fabrication and field welding
Its ability to measure oxygen levels down to 1 ppm makes it well suited for applications with strict purge quality requirements.
Why Choose the Orbital Service PRO2stick?
Proper purge gas monitoring is essential for producing clean, oxidation-free welds in stainless steel and high-purity piping systems.
The PRO2stick provides fast, highly accurate oxygen measurements in a compact handheld unit, allowing operators to verify purge conditions quickly while maintaining productivity in both fabrication shops and field installations.
Key advantages include:
- Measures residual oxygen down to 1 ppm
- Fast startup with intuitive shake-to-measure operation
- Portable design for shop and field use
- Reliable performance in hydrogen-containing purge environments
- Wireless Bluetooth® connectivity for compatible Orbital Service equipment
- Long battery runtime for extended operation
- Rugged aluminum construction for demanding industrial environments
Included Features
- Portable handheld oxygen analyzer
- Rechargeable battery
- Bluetooth® wireless communication
- OLED display with automatic screen rotation
- Integrated flashlight
- Audible notification horn
- Fast startup functionality
- Oxygen measurement capability down to 1 ppm O₂
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | PRO2stic k |
| Product Type | Residual Oxygen Analyzer |
| Measuring Range | 1,000 ppm to 1 ppm O₂ |
| Sensor Characteristics | Not affected by hydrogen, humidity, or ozone |
| Startup Time | Less than 5 seconds |
| Battery Runtime | Up to 11 hours |
| Display | 1" OLED colour display |
| Display Function | Automatic 180° screen rotation |
| Bluetooth | Class 1 |
| Wireless Range | Up to 100 m (328 ft) under ideal conditions |
| Communication | Compatible with Orbital Service welding systems, PCs, and mobile devices |
| Audible Alert | Integrated signal horn |
| LED Functions | Battery status indicator and flashlight |
| Housing Material | Aluminum |
| Auto Shutoff | Automatic power-off after inactivity |

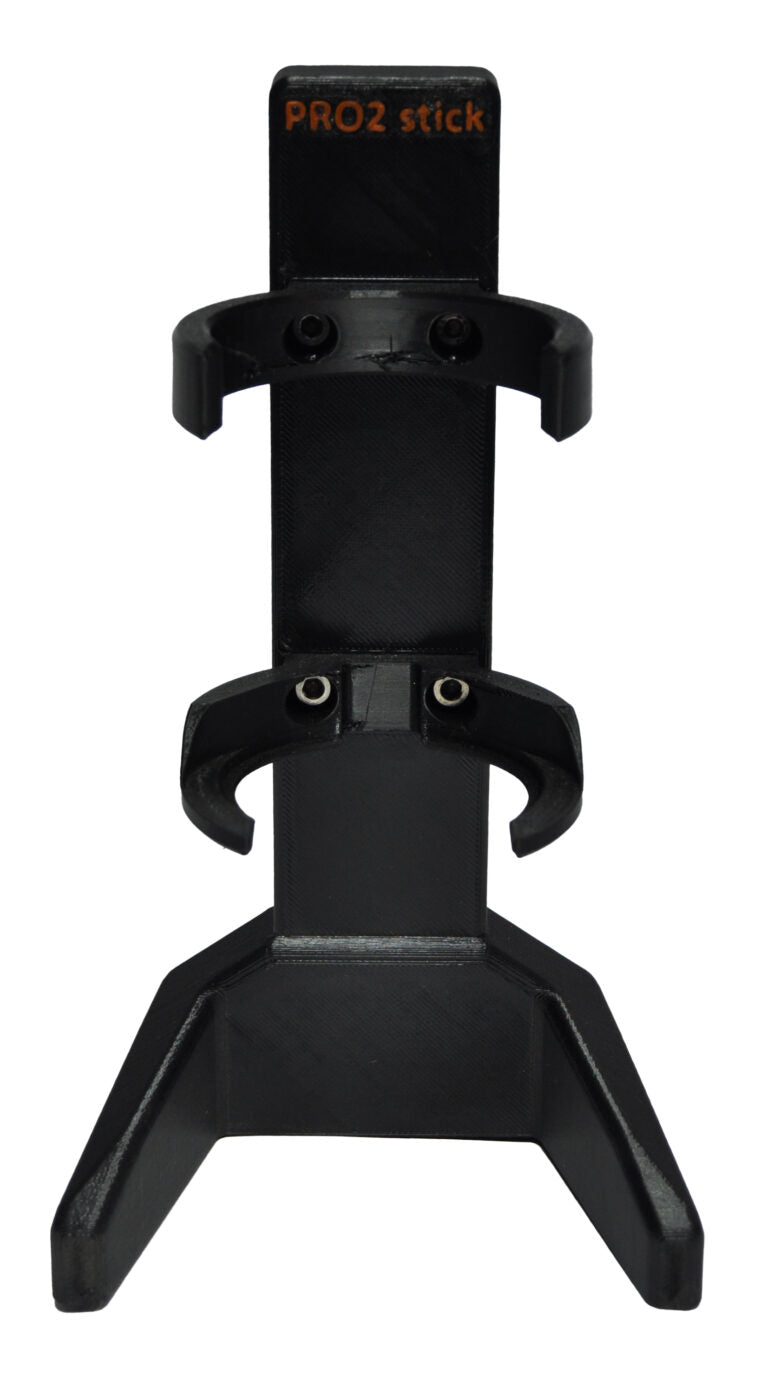

| Optional Accessory | Vertical Stand |
| Analyzer Article Number | PRO2stick100 |
| Stand Article Number | PRO2stick100 (Supportstick for optional stand) |
Frequently Asked Questions
What is the PRO2stick Oxygen Analyzer used for?
The PRO2stick measures residual oxygen levels during weld purging, allowing operators to confirm that purge conditions are suitable before and during orbital TIG welding.
What is the measuring range of the PRO2stick?
The analyzer measures oxygen concentrations from 1,000 ppm down to 1 ppm O₂, making it suitable for high-purity welding applications where extremely low oxygen levels are required.
Why is residual oxygen monitoring important during orbital welding?
Residual oxygen monitoring helps prevent oxidation (often called "sugaring") inside stainless steel tubing and pipe. Proper purge conditions produce cleaner weld roots, improve corrosion resistance, and help ensure consistent weld quality.
How quickly is the PRO2stick ready to use?
The PRO2stick is ready to measure in less than five seconds using its unique shake-to-measure activation, allowing operators to begin monitoring almost immediately.
Can the PRO2stick connect wirelessly to other devices?
Yes. The analyzer features Bluetooth® Class 1 connectivity with a wireless range of up to 100 metres (328 ft) under ideal conditions. It can communicate with compatible Orbital Service welding systems, PCs, and mobile devices.
How long does the battery last?
The integrated rechargeable battery provides up to 11 hours of continuous operation on a full charge, making it suitable for extended workdays.
Is the PRO2stick suitable for field use?
Yes. Its compact aluminum housing, lightweight design, long battery life, and fast startup make it an excellent choice for both fabrication shops and on-site welding applications.
Can the PRO2stick be used in hydrogen-containing purge gas environments?
Yes. The sensor is not affected by hydrogen, humidity, or ozone, providing reliable oxygen measurements in demanding welding and purge gas applications.
