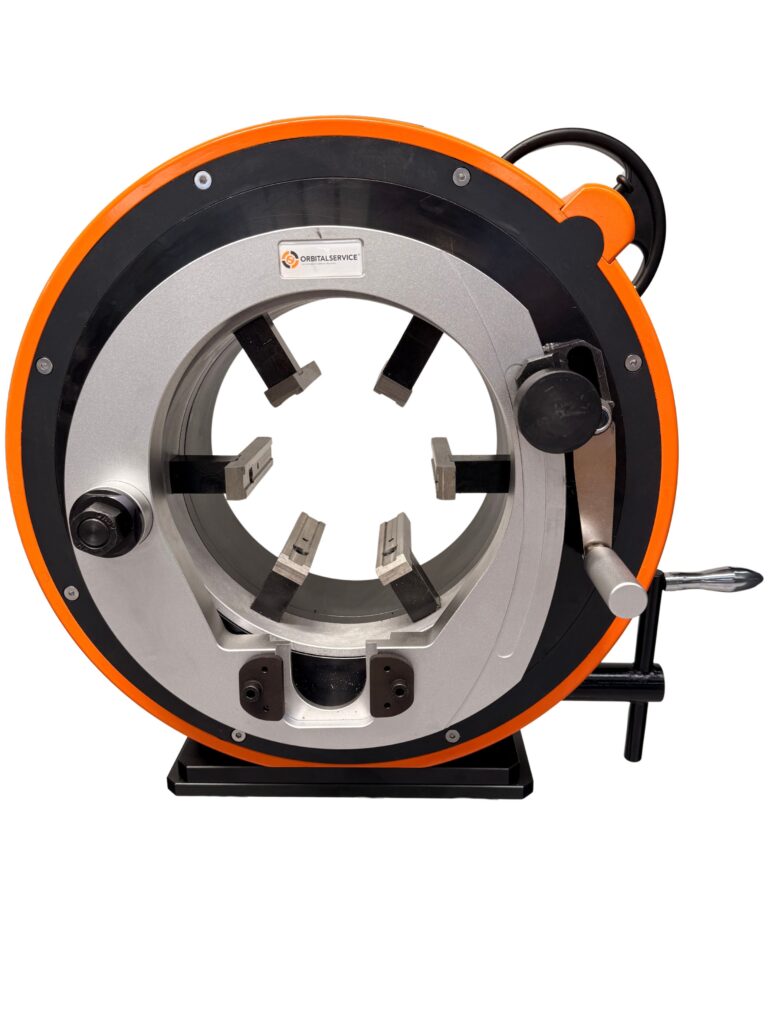

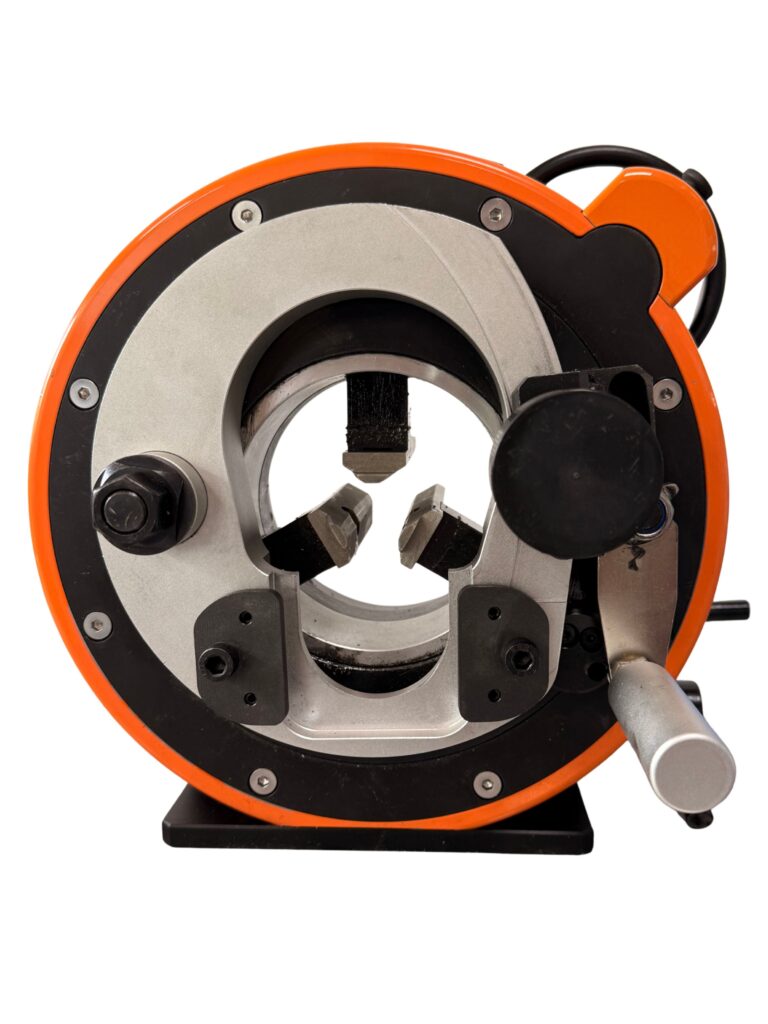

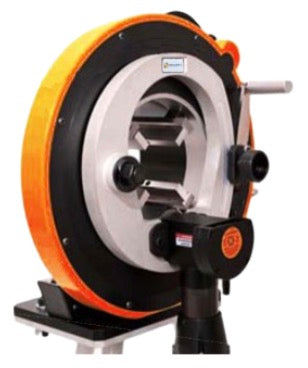

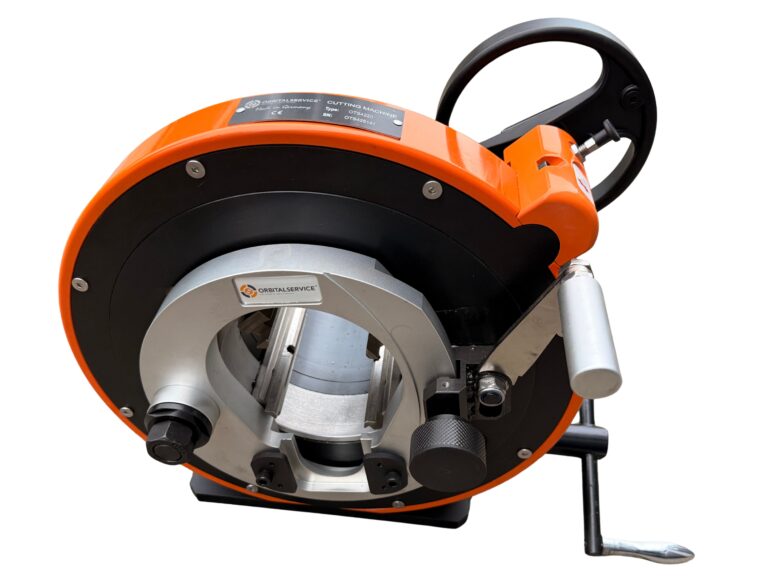

Orbital Service Pipe Cutters

Orbital Service OTS Series Pipe Cutting Machines are compact orbital tube saws designed for fast, precise, and burr-free cutting of stainless steel tube and pipe.

Designed for high-accuracy tube preparation, the OTS Series produces clean, square cuts with tolerances up to 0.25 mm (0.009"), helping reduce deformation, minimize secondary finishing, and improve preparation before orbital welding.

Available in five models, the OTS Series covers pipe outside diameters from Ø 6 mm to Ø 330 mm (0.236" to 12.992"), providing solutions for applications ranging from small process tubing to larger industrial pipe systems.

With compact clamping systems, detachable variable-speed saw motors, and ergonomic handwheel operation, OTS pipe cutting machines provide consistent cutting performance for stainless steel fabrication, hygienic piping, and orbital welding preparation.

Key Features

• Precision orbital pipe cutting design – Produces accurate, repeatable cuts for tube and pipe preparation
• Wide diameter coverage – Five models support pipe sizes from Ø 6 mm to Ø 330 mm (0.236" to 12.992")
• Clean, burr-free cutting performance – Reduces secondary deburring and weld preparation time
• High cutting accuracy – Maintains cut tolerances up to 0.25 mm (0.009")
• Compact clamping system – Provides stable pipe positioning during cutting operations
• Stainless steel clamping jaws – Available in 4-jaw and 6-jaw configurations depending on model size
• Variable-speed detachable saw motor – Adjustable speed range from 90–270 rpm for improved cutting control
• Ergonomic handwheel operation – Helps maintain consistent feed pressure and extend blade life
• Supports wall thicknesses up to 5 mm (0.197")
• Compatible with cutting and beveling blades – Allows tube cutting and weld preparation in one system
• Portable compact design – Suitable for fabrication shops and field installation work
• Multiple power options available – Compatible with 110V and 230V motor configurations
• Expandable accessory system – Optional stands, benches, transport cases, and supports increase flexibility

Applications

The Orbital Service OTS Series is designed for precision tube and pipe cutting in fabrication, process piping, and orbital welding environments.

Common applications include:

• Orbital welding preparation
• Stainless steel tube and pipe fabrication
• Hygienic process piping systems
• Pharmaceutical and food-grade tubing installations
• Semiconductor and high-purity piping systems
• Industrial maintenance and pipe modification
• Tube cutting before beveling and weld preparation
• Shop and field pipe processing applications

The OTS Series is ideal for applications where clean, square cuts and minimal material deformation are required before welding or assembly.

System Configuration & Model Range

The Orbital Service OTS Series includes five pipe cutting machine models, allowing users to select the appropriate system based on required pipe diameter range.

Each model features a compact orbital cutting design, stainless steel clamping jaws, and a detachable variable-speed saw motor.

OTS-3

Designed for smaller diameter tubing and compact fabrication applications.

• Pipe OD range: Ø 6–80 mm (0.236"–3.149")
• 4 stainless steel clamping jaws
• Machine weight: 31 kg (68 lb)

OTS-4

Designed for general tube fabrication and process piping applications.

• Pipe OD range: Ø 12–120 mm (0.472"–4.724")
• 4 stainless steel clamping jaws
• Machine weight: 40 kg (88 lb)

OTS-6

Provides increased capacity for larger process tubing and industrial applications.

• Pipe OD range: Ø 16–171 mm (0.63"–6.73")
• 4 stainless steel clamping jaws
• Machine weight: 55 kg (121 lb)

OTS-8

Designed for larger diameter pipe cutting applications.

• Pipe OD range: Ø 55–228 mm (2.165"–8.976")
• 6 stainless steel clamping jaws
• Machine weight: 60 kg (132 lb)

OTS-12

The largest model in the series for heavy-duty industrial pipe preparation.

• Pipe OD range: Ø 140–330 mm (5.512"–12.992")
• 6 stainless steel clamping jaws
• Machine weight: 81 kg (178 lb)

Why Choose Orbital Service OTS Pipe Cutting Machines?

The OTS Series is designed for fabrication and process piping environments where accurate pipe preparation directly impacts welding quality and assembly efficiency.

By producing consistent, clean cuts with minimal burr formation, these machines help reduce preparation time and improve workflow before orbital welding or installation.

Key advantages include:

• Improved cut consistency for repeated pipe preparation work
• Reduced deburring and secondary finishing requirements
• Compact design for shop and field applications
• Multiple models covering small tubing through large industrial pipe
• Detachable motor system for easier transport and maintenance
• Compatibility with beveling cutters for weld preparation
• Expandable setup with optional stands, benches, and accessories
