Items 280511, 280513 and 280515: Siegmund Fast Clamping Bolt without slot, burnished, in double, triple and quadruple lengths for System 28. Without the O-ring slot the bolt body stays smooth, and Siegmund calls this fast clamping bolt with twistlock the ideal connecting element between its components. BTH Sales is the exclusive Canadian importer of Siegmund.
Specifications
| Siegmund article | 280511 (siegmund.com) | 280513 (siegmund.com) | 280515 (siegmund.com) |
|---|---|---|---|

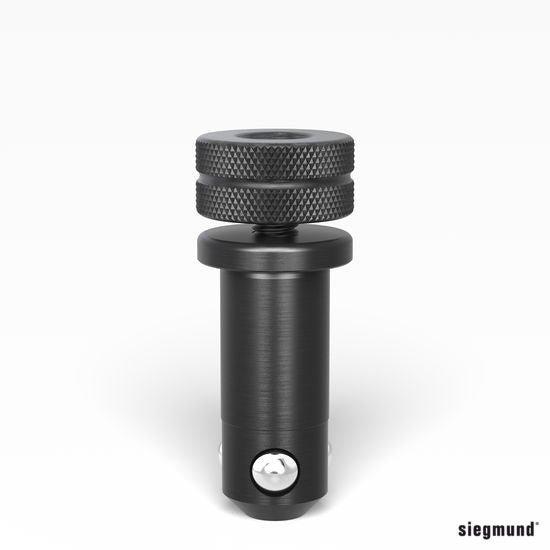

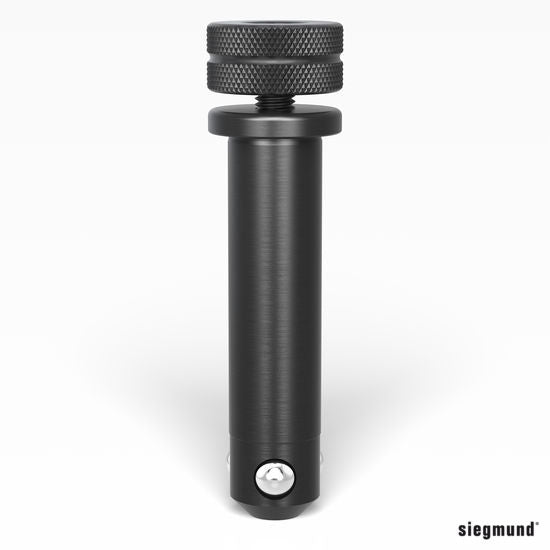

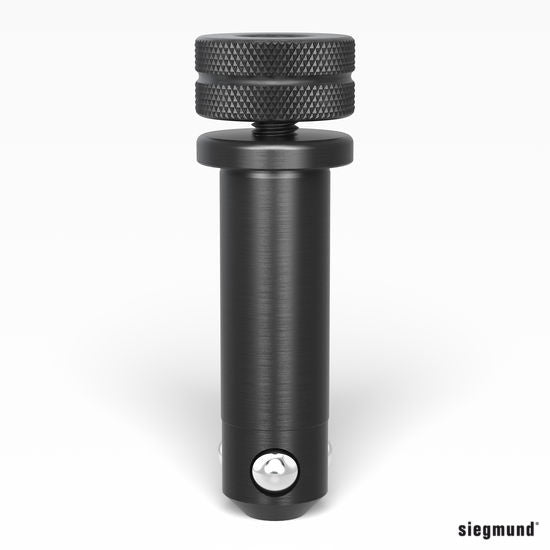

| Description | Fast Clamping Bolt without slot double burnished | Fast Clamping Bolt without slot triple burnished | Fast Clamping Bolt without slot quadruple burnished |
| System | Siegmund System 28 (Ø28 mm bores, 100 mm grid) | ||
| Length | 95 mm (3.74 in) | 120 mm (4.72 in) | 145 mm (5.71 in) |
| Weight | 0.54 kg (1.19 lb) | 0.65 kg (1.43 lb) | 0.76 kg (1.68 lb) |
| Components clamped | 2 | 3 | 4 |
| Hex socket | size 6 | ||
| Tightening torque, steel | 25 Nm | ||
| Tightening torque, aluminum | 10 Nm | ||
| Finish | Burnished | ||
| GTIN | 4251805924466 | 4251805924473 | 4251805924541 |
Compatibility
- Fits: Siegmund System 28 welding tables and tooling with Ø28 mm bores on a 100 mm grid. Siegmund System 28 accessories also fit other 28 mm system welding tables with Ø28 mm bores on a 100 mm grid. Compatible tables from other manufacturers are often made from different materials and to different standards, so quality varies by manufacturer, compared with Siegmund's X8.7 tool steel.
- Not compatible: System 16 (Ø16 mm) tables; Siegmund builds each system around one bore size.
- Works with: other Siegmund System 28 clamps, bolts, stops, squares and U-squares on the same table.
- Not for: connecting tables and U-shaped squares (Siegmund). Siegmund's connecting bolts are designed for that.
- Care & grounding: anti-spatter spray, CleanBasic cleaner, Ground Connection Comfort (S16/S28).
What's included
Choose one option; each option is one piece:
- 1 x Siegmund Fast Clamping Bolt without slot double burnished (280511)
- 1 x Siegmund Fast Clamping Bolt without slot triple burnished (280513)
- 1 x Siegmund Fast Clamping Bolt without slot quadruple burnished (280515)
Engineering support & demos
Engineering support comes with your purchase: fixture design, layout drawings, CAD and 3D models, site visits and cobot cell planning, handled by Travis Hardcastle at BTH Sales or by Siegmund directly. BTH Sales does not sell cobots; for cobot cells we help with table integration and fixturing (see cobot welding with Siegmund tables). Live demos at our St. Marys showroom are by appointment (book a demo), and we offer video demos if you are outside Ontario. BTH Sales is family-owned, founded in 2001, and has been the exclusive Canadian importer of Siegmund since 2018.
Typical uses
- Connecting Siegmund System 28 components with a twistlock bolt (Siegmund).
- Siegmund's recommendation when working with aluminum profiles.
- When clamping aluminum parts, tighten hand-tight only (Siegmund).
- Siegmund describes System 28 as ideal for light to heavy components and designed for maximum clamping forces, multi-ton structures and high distortion forces.
Industries served: Siegmund's published practical examples show its welding tables and tooling in these sectors: Agriculture; Interior; Lighting and electrical engineering; Machine tools and plant construction; Measurement and testing technology; Motorcycle engineering; Revolving door systems; Robotic technology; Stage technology; Stainless steel processing; Steel, sheet metal and metal construction; Textile production; Train Construction; Vehicle construction; Welding technology; Woodworking.
Frequently Asked Questions
Can I use this bolt to connect two tables?
No. Siegmund says this bolt must not be used for connecting tables and U-shaped squares. For that, use a Siegmund System 28 connecting bolt.
How tight should I clamp aluminum parts?
Siegmund says the clamping torque depends on the material, and that when clamping aluminum parts the bolts must only be tightened hand-tight.
Will it fit other 28 mm welding tables?
Yes, if the table has Ø28 mm bores on a 100 mm grid. Check the bore diameter and grid before ordering. Compatible tables from other manufacturers are often made from different materials and to different standards, so quality varies by manufacturer, compared with Siegmund's X8.7 tool steel.
Related parts
- System 28 Fast Clamping Bolt Adjustable without Slot
- System 28 Connecting Bolt
- System 28 spare parts for bolts
- All Siegmund System 28 bolts
Ships across Canada from 5 Industrial Rd, St. Marys, ON N4X 1G2, or pick up from our warehouse. Most orders ship within 48 hours. Email sales@bthsales.ca or call +1-519-461-1381 with questions or for a freight quote.
