Siegmund Set 3 Aluminum for System 28 (item no. 2-283300.A) is a 108-piece tooling kit for Siegmund System 28 welding and clamping tables. It includes 18 clamps, 22 prisms, 36 bolts, 20 stops, 10 squares and tool cart, plus the Siegmund accessories set 283999. It also includes the Siegmund 280910 tool cart. Order it in Canada from BTH Sales.
Key specs
| System | Siegmund System 28 (Ø 28 mm (1.1 in) boreholes) |
|---|---|
| Manufacturer article no. | 2-283300.A (ERP 28003496) |
| GTIN/EAN | 4251805921250 |
| Set weight | 189.48 kg (418 lb) (manufacturer data) |
| Materials | as listed per item in the table above (Siegmund item descriptions) |
| Manufacturer | Bernd Siegmund GmbH, Germany |

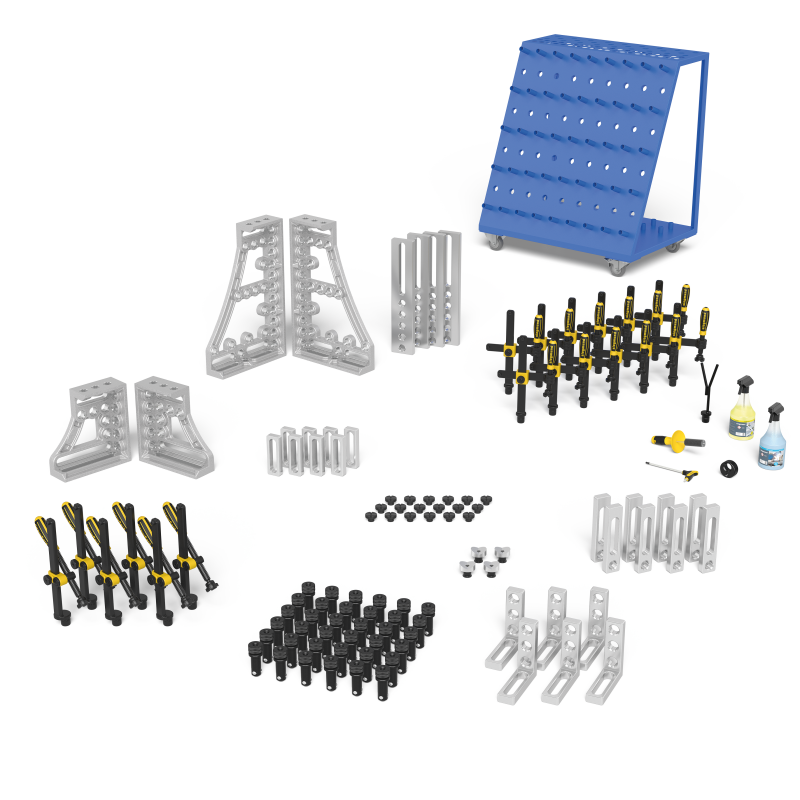

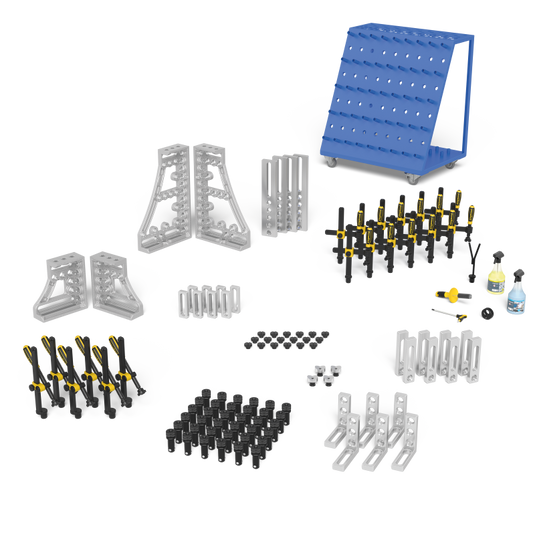

What's included
| Qty | Item no. | Name |
|---|---|---|
| 12 | 280610.N | Professional Screw Clamp nitrided |
| 6 | 280630.N | Professional Screw Clamp 45°/90° nitrided |
| 18 | 280659.PA | Prism for Screw Clamps Polyamide |
| 36 | 280511 | Fast Clamping Bolt without slot double burnished |
| 8 | 280410.A | Universal Stop 150 L Aluminum |
| 8 | 280420.A | Universal Stop 225 L Aluminum |
| 6 | 280110.A | Stop and Clamping Square 175 L Aluminum |
| 4 | 280430.C | Universal Stop 500 S Chromed |
| 4 | 280648.1.A | Prism Ø 50 135° with screwed-in collar Aluminum |
| 1 | 280120 | Stop and Clamping Square 300 GK left Aluminum-Titanium |
| 1 | 280121 | Stop and Clamping Square 300 GK right Aluminum-Titanium |
| 1 | 280138 | Stop and Clamping Square 600 GK left Aluminum-Titanium |
| 1 | 280139 | Stop and Clamping Square 600 GK right Aluminum-Titanium |
| 1 | 280910 | Tool Cart powder coated finish |
| 1 | 283999 | Accessories-Set (included in Set 1 - Set 5) |
Total: 108 pieces (per Siegmund's listing; paired left/right squares count as two).
Accessories set 283999 contents
- 1 × 280402.N Eccentric stop Ø 60 with M10 thread, nitrided
- 1 × 280852.1 Hex wrench, size 6
- 1 × 280820 Brush Ø 30 with protective cover
- 1 × 000914 CleanBasic, 1 litre spray bottle
- 1 × 000924 Anti-Spatter, 1 litre spray bottle
- 1 × 280920 Burner (torch) holder, burnished
Compatibility
It fits all Siegmund System 28 welding tables (Ø 28 mm bores). It is not compatible with System 16 tables, which use 16 mm bores.
Compare System 28 sets
- Set 1 – System 28 (33 pcs)
- Set 2 – System 28 (57 pcs)
- Set 3 – System 28 (77 pcs)
- Set 4 – System 28 (110 pcs)
- Set 5 – System 28 (128 pcs)
- Basic Set 1 – System 28 (37 pcs)
- Basic Set 2 – System 28 (51 pcs)
- Basic Set 3 – System 28 (69 pcs)
- Set 1 Aluminum – System 28 (47 pcs)
- Set 2 Aluminum – System 28 (77 pcs)
- Set 4 Aluminum – System 28 (148 pcs)
- All Siegmund System 28 table sets
Frequently Asked Questions
How many pieces are in Siegmund System 28 Set 3 Aluminum?
108, including the 283999 accessories set (eccentric stop, hex wrench, bore brush, CleanBasic, Anti-Spatter and burner holder).
What is the Siegmund item number for Set 3 Aluminum, System 28?
2-283300.A.
Which tables does Set 3 Aluminum fit?
It fits all Siegmund System 28 welding tables (Ø 28 mm bores). It is not compatible with System 16 tables, which use 16 mm bores.
How much does the set weigh?
About 189 kg (189.48 kg according to Siegmund).
Do you ship Set 3 Aluminum across Canada?
Yes. BTH Sales ships across Canada from its warehouse in St. Marys, Ontario. Most orders ship within 48 hours of receipt.
