The Siegmund Workstation 1208 is a System 16 workstation with a 1200 x 800 mm perforated plate in through-hardened X8.7 tool steel, plasma nitrided and BAR-coated, approx. 12 mm thick, with Ø16 mm bores on a 50 x 50 mm grid and 600 mm of drawer space on the left and right.
Specifications
| Version | 164401 Workstation 1208 incl. Shelves | 164407 Workstation 1208 half closed incl. 3 drawers | 164409 Workstation 1208 closed incl. 6 drawers |
|---|---|---|---|
| System | Siegmund System 16 (Ø16 mm bores, 50 mm grid) | ||
| Dimensions (L x W x H) | 1200 x 800 x 850 mm (47.24 x 31.50 x 33.46 in) | ||
| Weight | 129.94 kg (286.47 lb) | 152.66 kg (336.56 lb) | 185.16 kg (408.21 lb) |
| Optional Accessory: | Perforated plate with Plasma Nitration (Item No. 2-164004.XX) for $250.00 | ||
| Perforated plate | 164004.X7, 1200 x 800 mm, X8.7 tool steel, plasma nitrided and BAR-coated, approx. 12 mm thick | ||
| Max. load capacity | Base plate 1000 kg (2,205 lb) without plate; castors 400 kg (882 lb) without plate | ||
| Drawer space | 600 mm on the left and right | ||
What's included
Choose a version, then choose No Set or Tool-Set A, B or C. Siegmund lists these delivery contents:
- 164401 incl. Shelves: 1x 004002.1 Workstation 1208 basic frame, 1x 164004.X7 perforated plate, 1x 164030 clamp holder, 1x 004620 shelf, 1x 164635 bolt and prism holder, 1x 004025.1 toolwall incl. shelf.

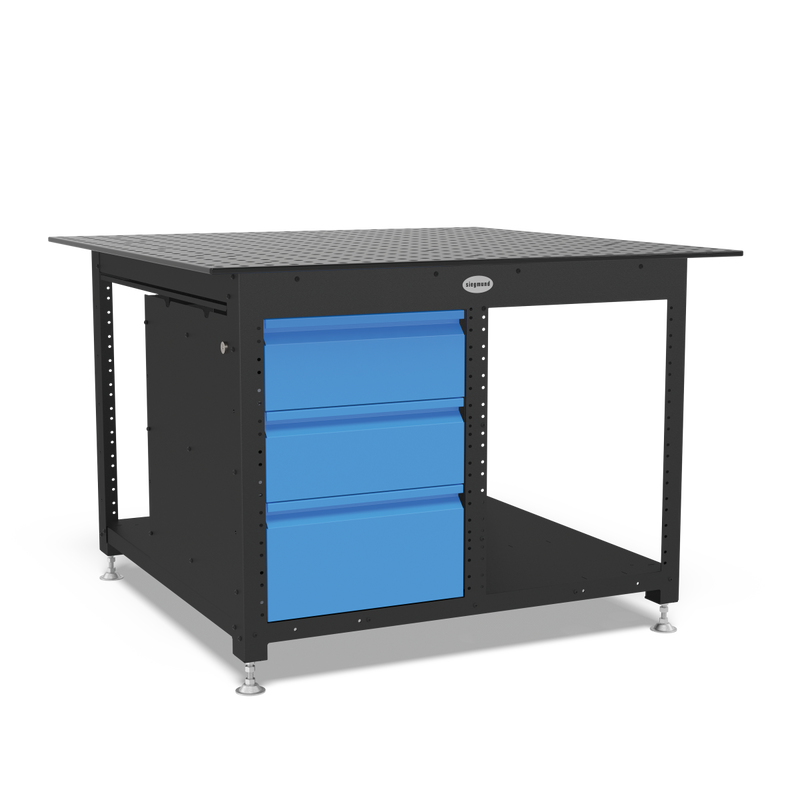

- 164407 half closed incl. 3 drawers: 1x 004002.1 basic frame, 1x 164004.X7 perforated plate, 2x 004230 drawer 180 mm, 1x 004235 drawer 240 mm, 1x 004120 set of side walls.

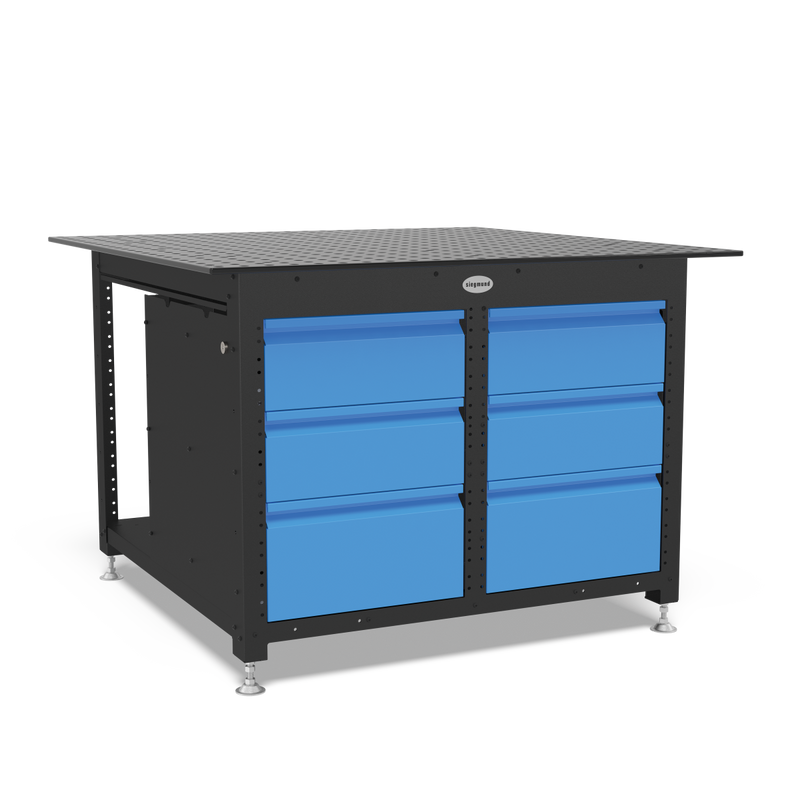

- 164409 closed incl. 6 drawers: 1x 004002.1 basic frame, 1x 164004.X7 perforated plate, 4x 004230 drawer 180 mm, 2x 004235 drawer 240 mm, 2x 004120 sets of side walls.
Tool-Sets A, B and C

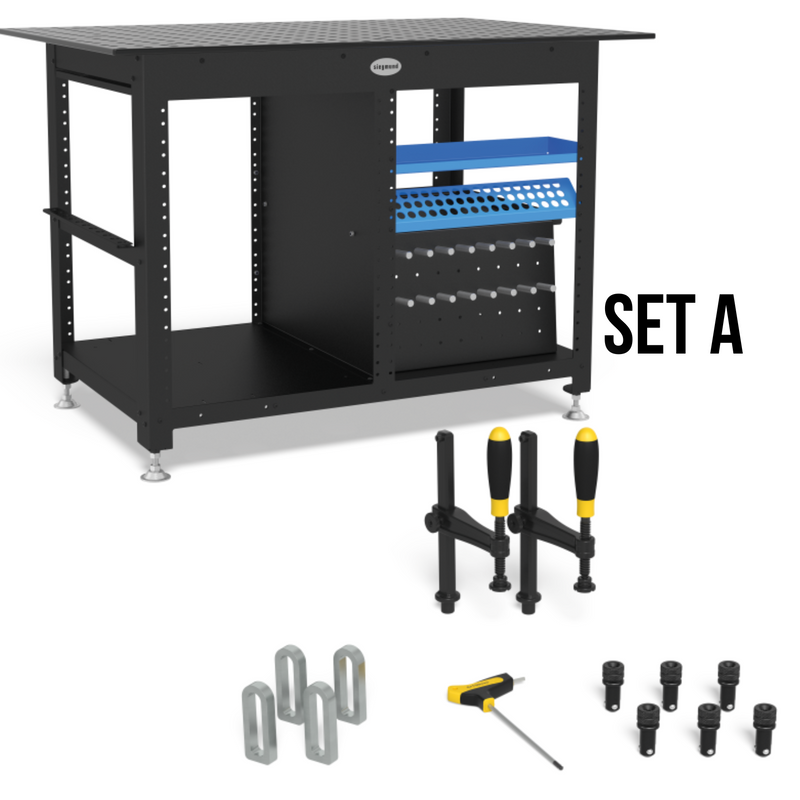

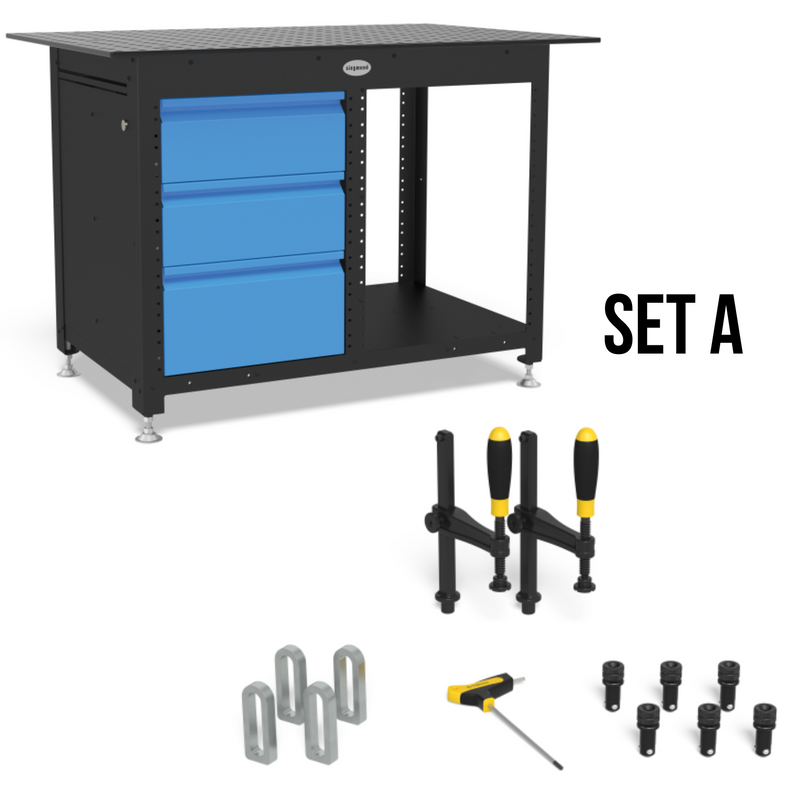

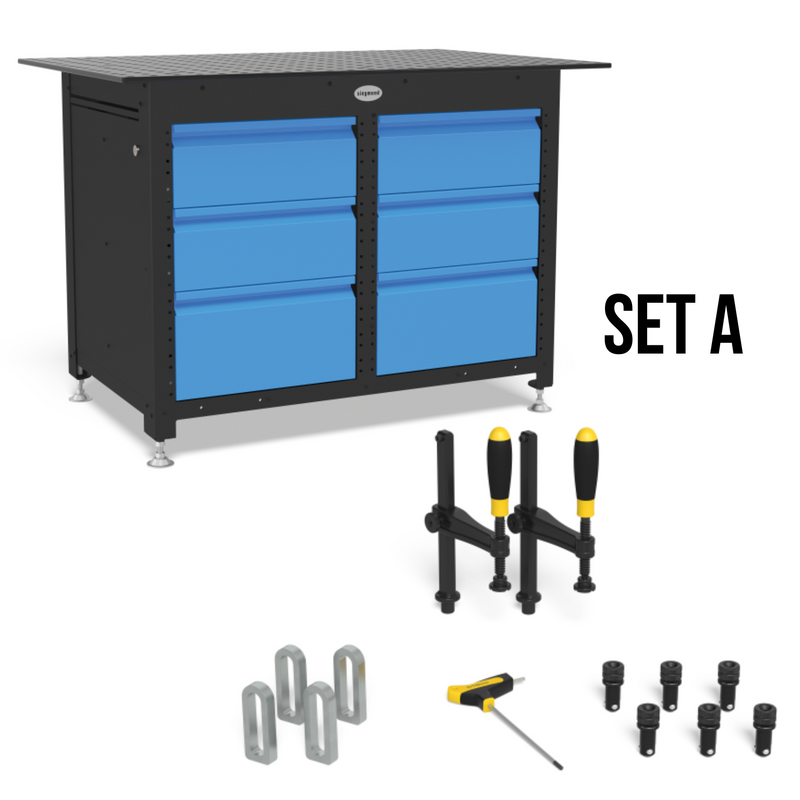

- Tool-Set A (167320, 2.64 kg): 2x 160620 clamp, 6x 160511 bolt, 4x 160412 stop, 1x 160852 hex wrench.

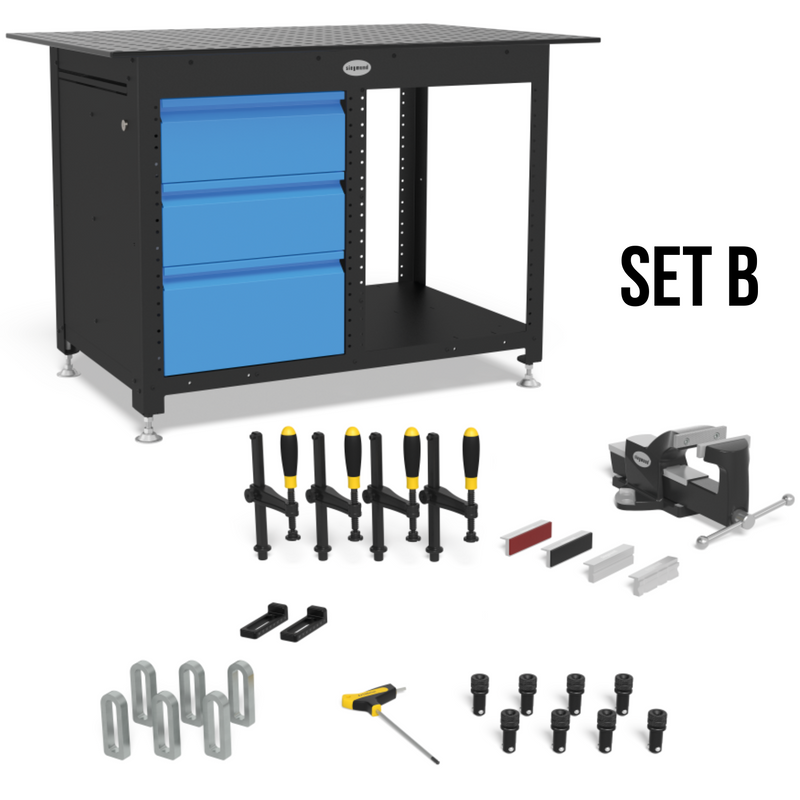

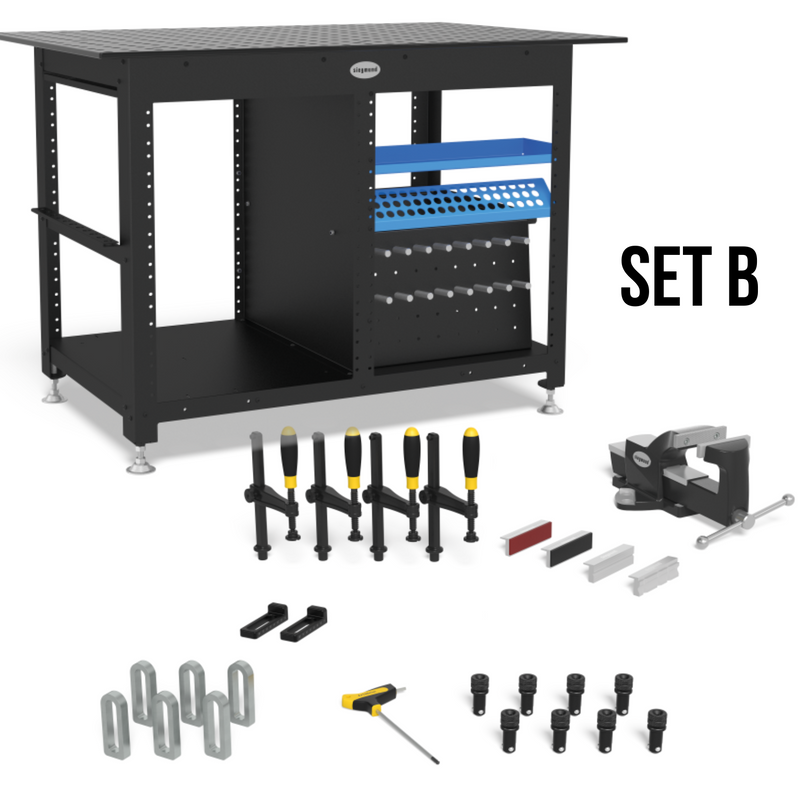

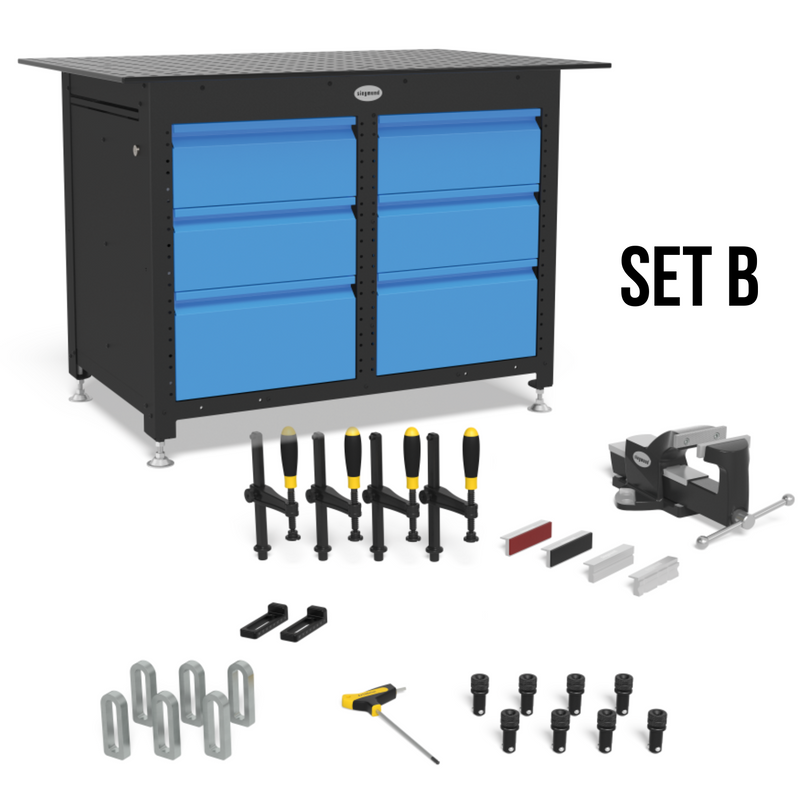

- Tool-Set B (167340.1, 15.54 kg): 4x 160620 clamp, 8x 160511 bolt, 6x 160412 stop, 2x 160108.N square, 1x 160852 hex wrench, 1x 164310 bench vice incl. set of vice jaw covers.

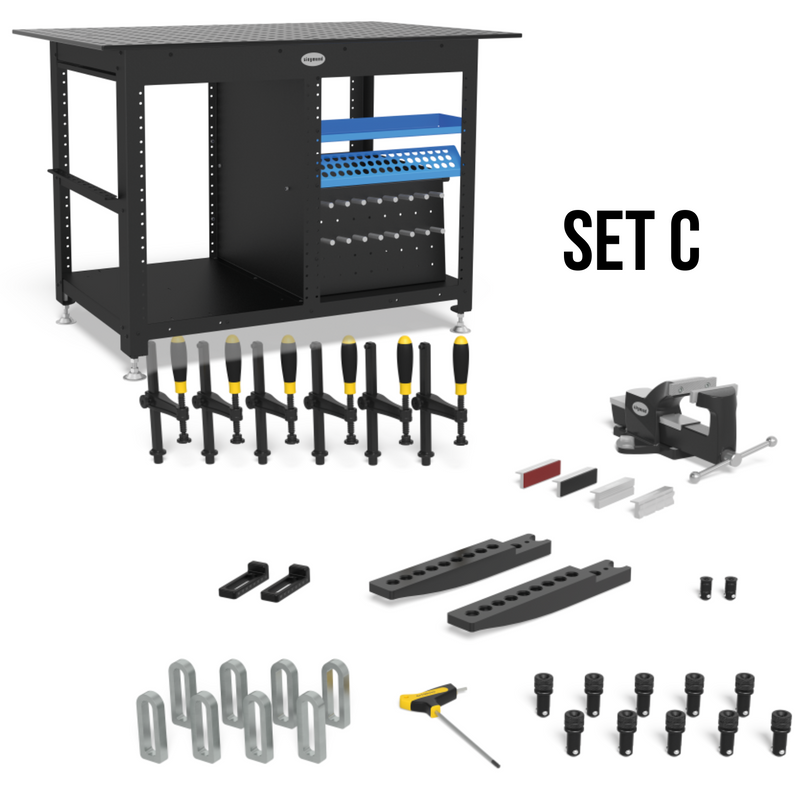

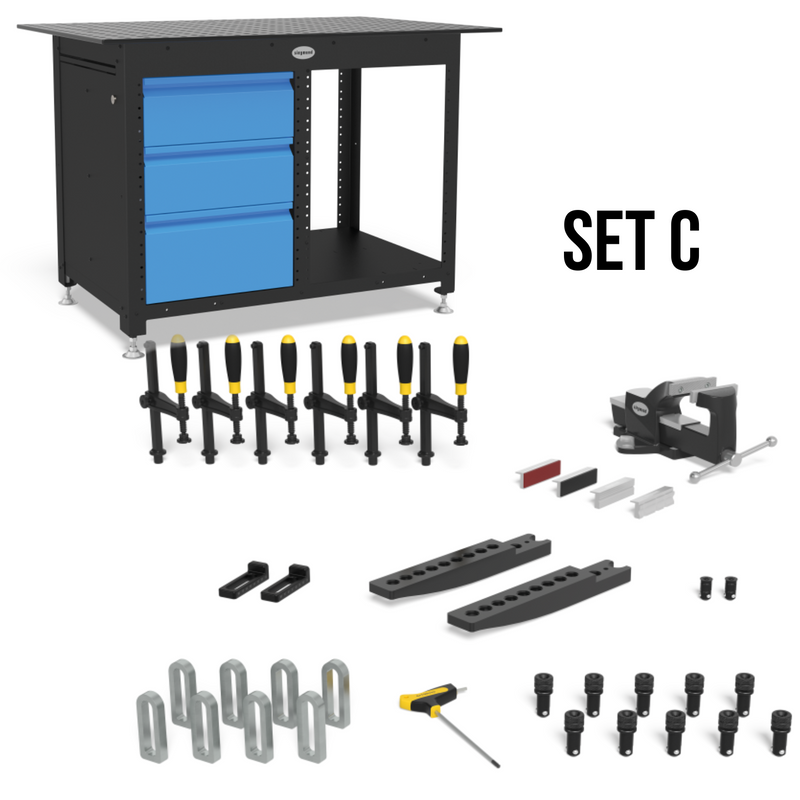

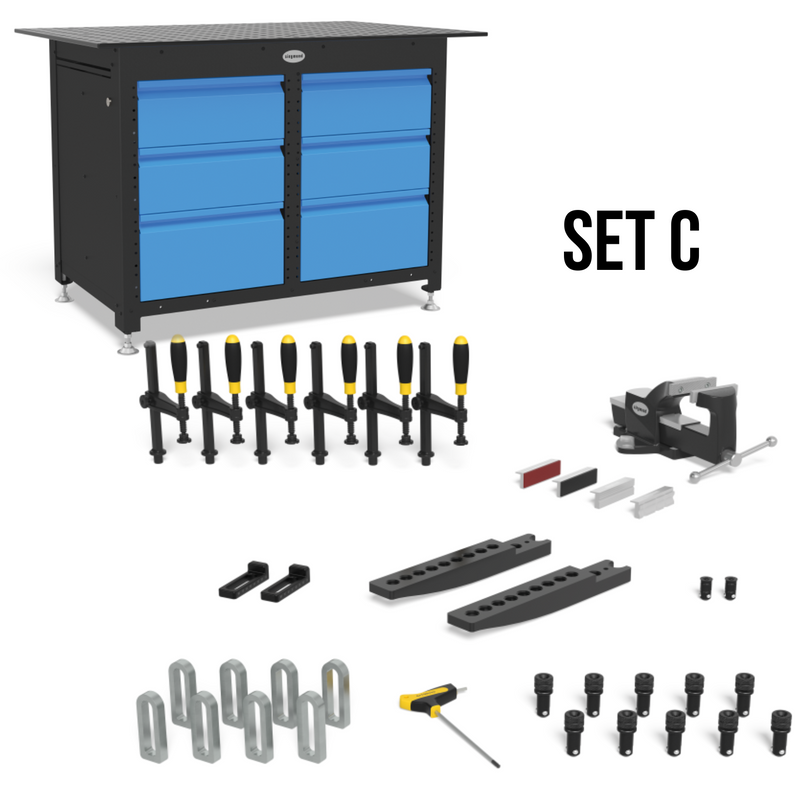

- Tool-Set C (167360, 21.78 kg): 6x 160620 clamp, 10x 160511 bolt, 8x 160412 stop, 2x 160108.N square, 2x 164050 extension for perforated plates, 2x 160528 flush mount bolt, 1x 160852 hex wrench, 1x 164310 bench vice incl. set of vice jaw covers.
Works with this table
-
System 16 - Workstation - Perforated plate S355J2+N 1200x800x12 Plasma nitrided (PLATE ONLY)
$1,423.00
-
Siegmund System 16 - Basic Screw Clamp
$77.00
-
Siegmund System 16 - Fast Clamping Bolt without Slot
From $81.00
-
Siegmund System 16 - Flex Stop 12x83 Aluminum
$38.00
-
Siegmund System 16 - Stop and Clamping Square 90 X
$86.00
-
Siegmund System 16 - Flush Mount Bolt
From $68.00
-
Siegmund System 16 & 28 - Anti-Splatter
From $38.00
-
Siegmund System 16 & 28 - Clean Basic
From $32.00
Compatibility
- Fits: Siegmund System 16 bolts, clamps, stops and squares, which are made for Ø16 mm bores on a 50 x 50 mm grid.
- Not compatible: System 28 (Ø28 mm) accessories; Siegmund builds each system around one bore size.
- Options: Siegmund offers drawers with clip rail (004220.WS to 004235.WS, 50 kg load capacity each) for workstations without side walls, and equipment with 4 castors for the Workstation 1208 (004100.1, 400 kg); feet and castors can be switched.
- Related products: 164004.P.1 System 16 - Workstation - Perforated plate S355J2+N 1200x800x12 Plasma nitrided (PLATE ONLY), 160620 Siegmund System 16 - Basic Screw Clamp, 160511 Siegmund System 16 - Fast Clamping Bolt Without Slot, 160412 Siegmund System 16 - Flex Stop 12x83 Aluminum, 160108.N Siegmund System 16 - Stop & Clamping Square 90X, 160528 Siegmund System 16 - Flush Mount Bolt.
- Care & grounding: anti-spatter spray, CleanBasic cleaner, Ground Connection Comfort (S16/S28).
BTH Sales is the exclusive Canadian importer of Siegmund.
Typical uses
- Welding, drilling and sawing at one modular workplace.
- Work preparation and small fixtures next to a larger System 16 welding table.
- Storing clamps, bolts and prisms at the bench with the clamp holder and bolt and prism holder (164401 version).
Engineering support & demos
Engineering support comes with your purchase: fixture design, layout drawings, CAD and 3D models, site visits and cobot cell planning, handled by Travis Hardcastle at BTH Sales or by Siegmund directly. Live demos at our St. Marys showroom are by appointment (book a demo), and we offer video demos if you are outside Ontario. BTH Sales is family-owned, founded in 2001, and has been the exclusive Canadian importer of Siegmund since 2018.
Industries served: Siegmund's published practical examples show its welding tables and tooling in these sectors: Agriculture; Interior; Lighting and electrical engineering; Machine tools and plant construction; Measurement and testing technology; Motorcycle engineering; Revolving door systems; Robotic technology; Stage technology; Stainless steel processing; Steel, sheet metal and metal construction; Textile production; Train Construction; Vehicle construction; Welding technology; Woodworking.
Ships across Canada by freight from 5 Industrial Rd, St. Marys, ON N4X 1G2, or pick up from our warehouse. Email sales@bthsales.ca or call +1-519-461-1381 for a freight quote and delivery estimate.
Frequently Asked Questions
Which Workstation 1208 versions are there?
Siegmund offers 164401 incl. Shelves (129.94 kg), 164407 half closed incl. 3 drawers (152.66 kg) and 164409 closed incl. 6 drawers (185.16 kg). All three measure 1200 x 800 x 850 mm.
What is the load capacity?
Siegmund lists a maximum load capacity of 1000 kg for the base plate without plate, and 400 kg on castors without plate.
What is in Tool-Set A, B and C?
Set A has 2 clamps, 6 bolts, 4 stops and a hex wrench. Set B has 4 clamps, 8 bolts, 6 stops, 2 squares, a hex wrench and a bench vice. Set C has 6 clamps, 10 bolts, 8 stops, 2 squares, 2 plate extensions, 2 flush mount bolts, a hex wrench and a bench vice.
What plate does the workstation use?
It comes with perforated plate 164004.X7, 1200 x 800 mm, in X8.7 tool steel, plasma nitrided and BAR-coated, approx. 12 mm thick, with Ø16 mm bores on a 50 x 50 mm grid.
Can I add castors?
Yes. Siegmund offers equipment with 4 castors for the Workstation 1208 (004100.1) rated at 400 kg, and you can switch between feet and castors.
