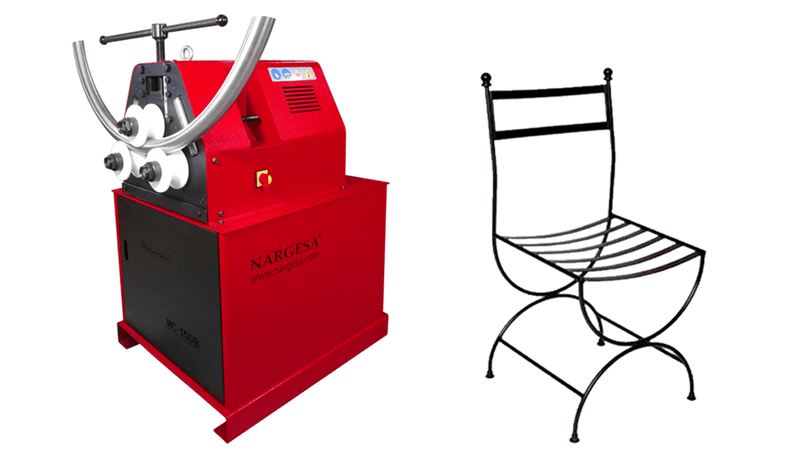

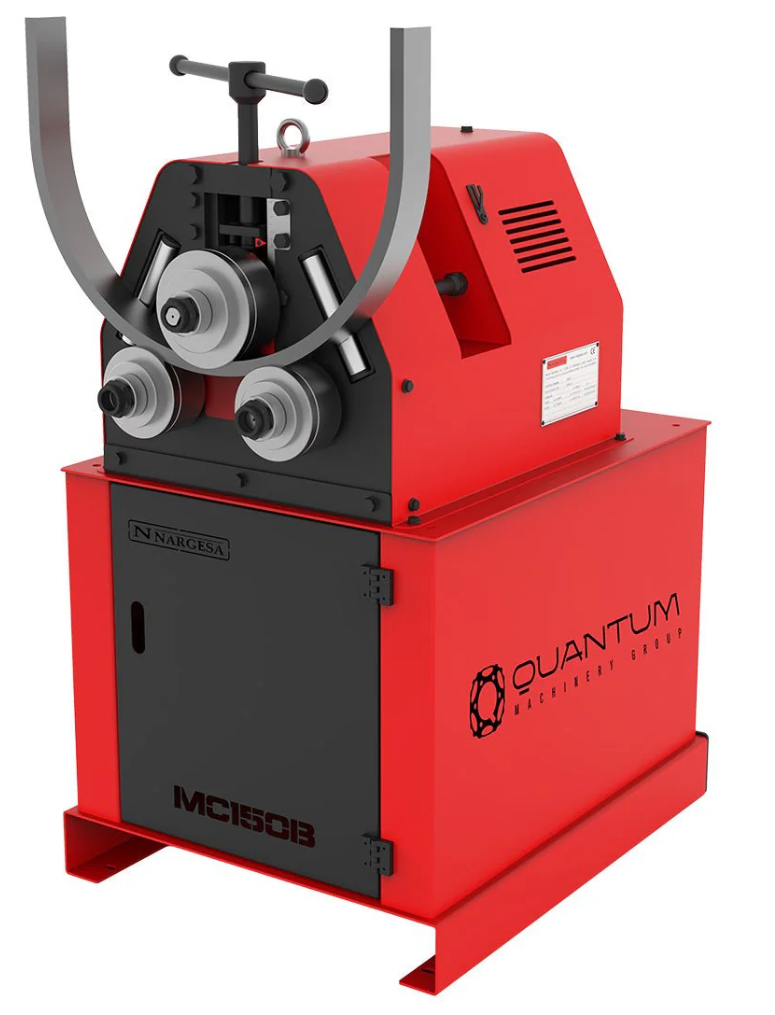

The Nargesa MC150B is a two-driven-roller pyramid section and pipe bender that rolls round pipe up to 2" (50 mm) plus flat bar, tee, channel, angle and solid bar. It runs on 230 V single-phase power, with side corrector rollers for spirals, so it suits smaller shops on a budget.
Key specs
| Max. round pipe | 2" (50 mm) |
|---|---|
| Rollers | 2 driven; upper shaft adjustment |
| Axes | 40 mm (1.57 in) diameter, 74 mm (2.91 in) useful length |
| Roller speed | 6 rpm |
| Motor | 0.75 kW (1 HP) |
| Power supply | 230 V single-phase |
| Machine dimensions | 680 × 950 × 1240 mm (26.8" × 37.4" × 48.8") |
| Weight | 270 kg (595 lb) |
What's included
- Standard rollers (MC150B/MC200/MC200H set)
- Side corrector rollers for spirals
- Delivered fully assembled
Options
- Treated steel and Sustarin rollers
- High-precision digital radius gauge
Features and applications
Key Features
- Industrial roll bender for tube, pipe, bar, and structural profile bending
- Supports both horizontal and vertical working positions
- Dual motorized lower rollers provide improved material traction
- Hydraulic bending system for controlled and repeatable forming
- Manual upper roller adjustment for precise radius control
- Side correction rollers support spiral and staircase applications
- Reinforced welded steel frame for long-term durability
- Interchangeable tooling accommodates multiple profile geometries
- Suitable for steel, stainless steel, aluminum, brass, and copper
- Compact machine footprint for fabrication shops and production environments
- Manufactured entirely in Spain
Applications
The MC150B is designed for fabrication applications requiring accurate curved profiles, tubes, and structural components.
Typical applications include:
- Pipe and tube bending
- Structural profile rolling
- Railing and handrail fabrication
- Gate and fence manufacturing
- Greenhouse construction
- Architectural metal fabrication
- Spiral staircase components
- Automotive and chassis fabrication
- Ornamental ironwork
- General metal fabrication
- Curved frames and structural assemblies
The machine's horizontal and vertical configurations provide additional flexibility when forming longer or heavier workpieces, while the side correction rollers allow the MC150B to produce spiral and helical profiles for applications such as staircases and architectural structures.
Why Choose the Nargesa MC150B?
A versatile roll bender can eliminate the need for multiple dedicated machines when a fabrication shop regularly works with different tube, bar, and structural profiles. The MC150B is designed around this flexibility, allowing operators to change tooling and configure the machine for different bending applications.
Its dual motorized rollers provide controlled material movement, while the hydraulic bending system allows operators to progressively form profiles to the required radius.
Key advantages include:
- Bends multiple tube, pipe, bar, and structural profile shapes
- Horizontal and vertical operation provides greater handling flexibility
- Dual motorized rollers improve material traction
- Hydraulic bending provides controlled forming pressure
- Side correction rollers support spiral and helical bending
- Interchangeable tooling expands the machine's application range
- Processes steel, stainless steel, aluminum, brass, and copper
- Suitable for both custom fabrication and repetitive production work
- Manufactured in Spain for professional metalworking applications
For fabrication shops producing railings, gates, architectural structures, curved frames, spiral staircases, and other formed components, the MC150B provides a flexible and repeatable solution for profile bending.
Video
Capacity charts and documents
Compare Nargesa models
- Nargesa MC650CNC CNC section & pipe bender
- Nargesa MC550CNC CNC pipe & profile bender
- Nargesa MC650 section & pipe bender
- Nargesa MC550 section & tube bender
- Nargesa MC400 section bender
- Nargesa MC200H hydraulic section bender
- Nargesa MC200 section bender
- All Nargesa machines
Frequently Asked Questions
What size pipe can the MC150B bend?
Round pipe up to 2" (50 mm). Other profile capacities are in Nargesa’s section bending capacity chart.
What power does the MC150B need?
Nargesa specifies a 0.75 kW (1 HP) motor on 230 V single-phase. Contact Nargesa through BTH Sales about other voltages. Confirm your shop’s voltage with BTH Sales before ordering.
Can it bend spirals?
Yes. Side corrector rollers control deformation for spirals and spiral staircases.
Which materials can it bend?
Iron, carbon steel, stainless steel, brass, copper and aluminum in tube and profile form.
How long does delivery take?
BTH Sales ships across Canada from St. Marys, ON. This machine has a 4–6 week lead time; contact us for an exact date.
