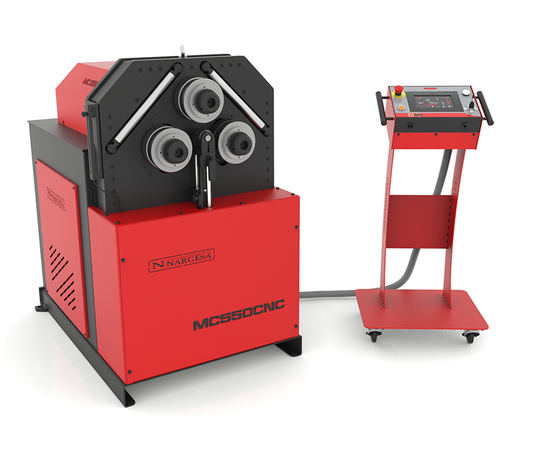

Nargesa MC550CNC CNC Pipe & Profile Bending Machine

The Nargesa MC550CNC CNC Pipe & Profile Bending Machine is a fully automated industrial bending system designed for precision forming of round tube, square tube, flat bar, angle iron, solid bar, and structural profiles. Manufactured entirely in Spain, the MC550CNC combines heavy-duty three-roll bending technology with advanced CNC automation to deliver exceptional accuracy, repeatability, and production efficiency.

Designed for both custom fabrication and high-volume manufacturing, the MC550CNC eliminates much of the trial-and-error traditionally associated with profile rolling. Its intelligent control system automatically predicts bend radii, reducing setup time, minimizing material waste, and allowing operators to produce complex curved components with greater confidence.

Built around a reinforced welded steel frame and an advanced ESA S625 CNC control system, the MC550CNC is engineered for continuous industrial operation. Whether producing a single custom component or hundreds of identical parts, the machine delivers the precision and repeatability required by modern fabrication environments.

Key Features

• Maximum round tube capacity of 3" (76.2 mm) for large tube and profile bending applications
• Fully integrated CNC control system simplifies programming and improves repeatability
• Automatic radius prediction technology reduces setup time and minimizes material waste
• Three driven traction rollers provide improved material control and smoother deformation throughout the bending process
• Programmable multi-step bending sequences allow operators to create complex profiles and curved components
• Stores more than 10,000 bending programs for fast production changeovers and repeat manufacturing
• Adjustable roller speeds provide greater control across different materials and profile types
• Vertical and horizontal operating positions increase flexibility when handling long workpieces
• Industry 4.0 connectivity and remote diagnostics support modern manufacturing environments
• Heavy-duty welded steel construction is designed for continuous industrial use
• Manufactured entirely in Spain using precision-machined components and industrial-grade materials

Applications

The MC550CNC is designed for fabrication shops and manufacturers that require precise, repeatable profile rolling across a wide range of industrial applications.

Typical applications include:

• Structural steel fabrication
• Railings, gates, and architectural metalwork
• Greenhouses and pergola manufacturing
• Spiral staircases and curved structural frameworks
• Industrial piping systems
• Process equipment fabrication
• Urban furniture manufacturing
• Heat exchanger and coil production
• Automotive component manufacturing
• Specialty metal forming and custom fabrication

The machine is particularly well suited for applications that involve multiple bend radii, repeated production runs, or complex geometries that would be difficult to reproduce using conventional manual profile rollers.

Why Choose the Nargesa MC550CNC?

The biggest advantage of the MC550CNC is its ability to combine heavy-duty bending capacity with intelligent CNC automation.

Traditional section bending often requires multiple test pieces to determine the correct roller position and bending sequence. The MC550CNC significantly reduces this process through its automatic radius prediction system, allowing operators to achieve accurate results more quickly while reducing wasted material.

The machine's ability to store more than 10,000 programs also makes it an excellent choice for manufacturers producing recurring parts. Previously saved programs can be recalled instantly, eliminating repetitive setup procedures and improving overall productivity.

Combined with Industry 4.0 connectivity, encoder-controlled movement, and a robust three-roll drive system, the MC550CNC provides fabricators with a powerful and highly flexible solution for modern profile bending applications.

Included Accessories

The MC550CNC comes standard with:

• Nine standard rollers for multiple profile configurations
• CNC control system installed and configured
• Palletized transport base
• Fully assembled machine delivery

Optional Accessories

Optional accessories include:

• Treated steel rollers for heavy-duty applications
• Sustarin rollers for stainless steel and delicate materials
• Digital radius measuring gauge
• Custom roller configurations for specialized profiles
• Protective export packaging
