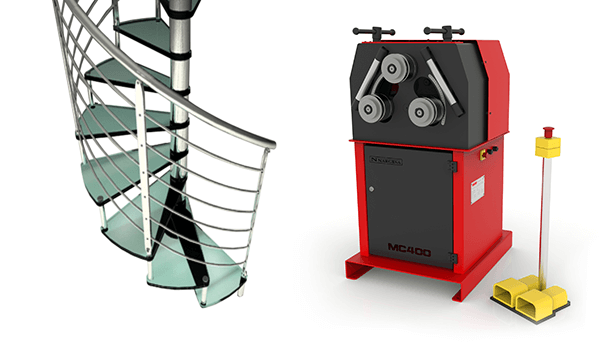

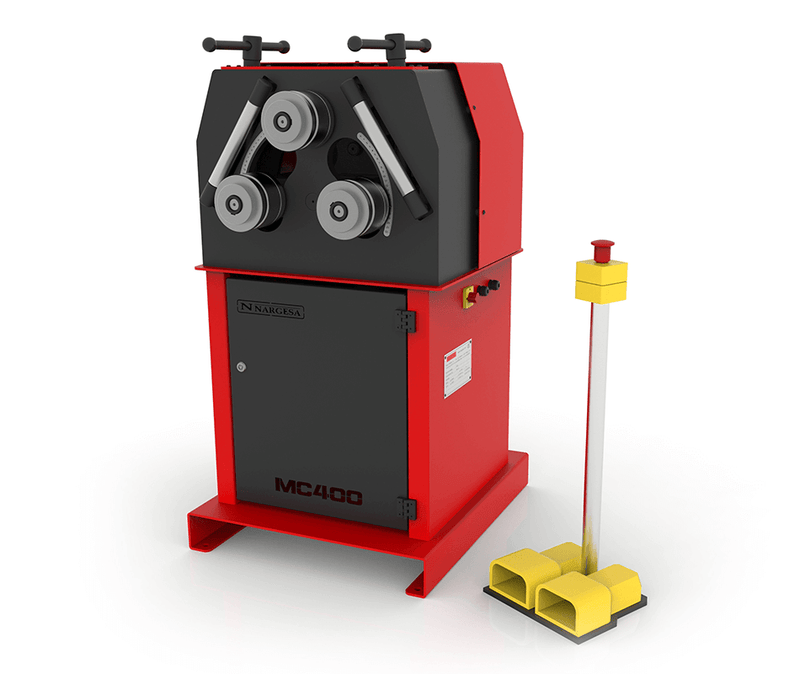

Nargesa MC400 Section Bending Machine

The Nargesa MC400 Section Bending Machine is a heavy-duty industrial roll bender designed for precision bending of round tube, square and rectangular tube, flat bar, angle iron, solid bar, and structural profiles. Manufactured entirely in Spain, the MC400 combines a reinforced welded steel frame, three driven rollers, and hardened transmission components to deliver controlled and repeatable profile bending for demanding fabrication applications.

With a maximum round tube capacity of 2-1/2" (63.5 mm), the MC400 is well suited for fabrication shops producing railings, gates, structural components, greenhouse frames, spiral staircases, heat exchanger coils, furniture, and ornamental metalwork.

The machine operates in both vertical and horizontal positions, giving fabricators greater flexibility when handling larger or more complex workpieces. Three traction rollers provide consistent material movement and improved grip, while adjustable roller positioning allows operators to achieve tighter bending radii and maintain greater control over the finished profile.

The MC400 is designed for working with steel, stainless steel, aluminum, brass, and copper, making it a versatile solution for professional metal fabrication and profile rolling applications.

Key Features

• Heavy-duty industrial section and pipe bending machine
• Maximum round tube capacity of 2-1/2" (63.5 mm)
• Three traction rollers provide consistent material grip and controlled bending
• Hardened and rectified steel shafts for durability and precise operation
• Vertical and horizontal working positions for improved handling flexibility
• Adjustable lower rollers allow tighter bending radii
• Side correction rollers support spiral and helical bending applications
• Millimeter positioning scales help provide repeatable machine setup
• Reinforced welded steel frame construction for demanding fabrication environments
• Includes 9 standard rollers and washers
• Suitable for steel, stainless steel, aluminum, brass, and copper
• Fully assembled and ready for operation
• Manufactured entirely in Spain

Applications

The Nargesa MC400 is designed for professional metal fabrication applications requiring accurate and repeatable bending of tubing, bar, and structural profiles.

Typical applications include:

• Railings and gates
• Greenhouse and structural fabrication
• Spiral staircases
• Heat exchanger coil manufacturing
• Furniture fabrication
• Ornamental ironwork
• Pipe and profile rolling
• Industrial metal fabrication

The MC400 can be configured for bending a wide range of profiles, including:

• Round tube
• Square and rectangular tube
• Flat bar
• Angle iron
• U-profile
• T-profile
• Solid round bar
• Solid square bar

The three-roller configuration provides consistent traction during the bending process, while the adjustable roller arrangement allows fabricators to produce curves, arches, spirals, and other formed profiles with greater control.

Why Choose the MC400?

The MC400 is designed for fabricators who need a versatile section bending machine capable of handling a wide range of profiles and materials. Its three traction rollers provide positive material control, while the adjustable roller system allows operators to achieve accurate bending results across different applications.

The ability to operate the machine in both vertical and horizontal positions also provides additional flexibility when working with larger or more complex workpieces.

Key advantages include:

• Three traction rollers for improved material control
• Maximum round tube capacity of 2-1/2" (63.5 mm)
• Supports a wide variety of tube, bar, and structural profiles
• Vertical and horizontal operating positions
• Adjustable rollers for controlled bending radii
• Side correction rollers for spiral and helical applications
• Millimeter positioning scales for repeatable setup
• Durable construction for professional fabrication environments
• Compatible with steel, stainless steel, aluminum, brass, and copper
• Includes 9 standard roller configurations
• Manufactured entirely in Spain

For fabricators producing railings, gates, greenhouse structures, spiral staircases, heat exchanger coils, furniture, ornamental ironwork, and rolled profiles, the MC400 provides the capacity and flexibility required for a wide range of profile bending applications.

Included Accessories

• 9 standard rollers and washers
• Adjustable roller configurations
• Palletized lower table for easy transport
• Fully assembled machine ready for setup

Optional Accessories

• Treated steel rollers
• Sustarin rollers for stainless steel and delicate materials
• High-precision digital radius gauge
• Wooden export packaging
