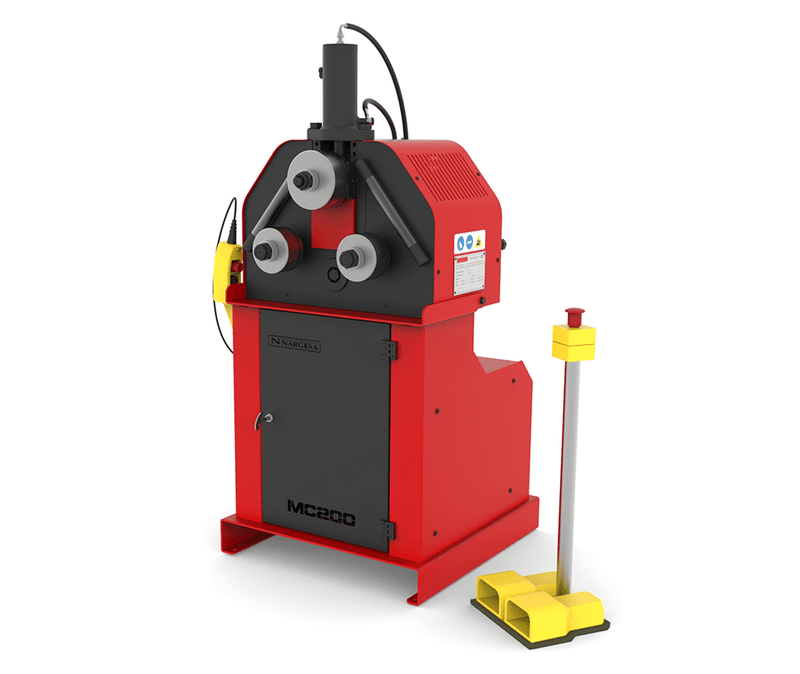

Nargesa MC200H Hydraulic Section Bending Machine

The Nargesa MC200H Hydraulic Section Bending Machine is a heavy-duty hydraulic roll bender designed for bending round tube, square and rectangular tube, flat bar, angle iron, solid bar, and structural profiles with precision and repeatability. Manufactured entirely in Spain, the MC200H combines the proven versatility of the MC200 with a hydraulic upper shaft adjustment system that provides increased bending force, improved repeatability, and reduced operator effort when working with larger profiles and tighter radii.

Built with a reinforced welded steel frame, dual traction rollers, hardened steel shafts, and hydraulic bending adjustment, the MC200H is designed for fabrication shops, ornamental ironwork, greenhouse manufacturing, heat exchanger production, and industrial metalworking applications.

The machine can operate in both vertical and horizontal positions, providing greater flexibility when handling large or complex workpieces. Its hydraulic upper shaft system provides controlled positioning during bending, while the dual motorized lower rollers maintain consistent material traction throughout the process.

Key Features

• Hydraulic section and pipe bending machine for professional fabrication applications
• Hydraulic upper shaft adjustment provides increased bending force and operator control
• Dual motorized lower traction rollers for consistent material grip
• Hardened and rectified steel shafts for durability and precise bending
• Reinforced welded steel frame construction

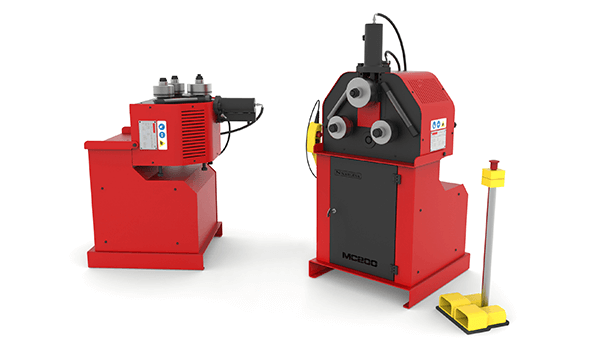

• Vertical and horizontal working positions
• Side correction rollers for spiral and helical bending applications
• Millimeter positioning scale for repeatable machine setup
• Position sensor system for repetitive production work
• Includes 9 standard rollers and washers
• Suitable for steel, stainless steel, aluminum, brass, and copper
• Fully assembled and ready for operation
• Manufactured entirely in Spain


Applications

The Nargesa MC200H is designed for fabrication applications requiring controlled and repeatable bending of tubing, bar, and structural profiles.

Typical applications include:

• Railings and gates
• Greenhouse and structural fabrication
• Spiral staircases
• Furniture manufacturing
• Ornamental ironwork
• Heat exchanger coil bending
• Pipe and profile rolling
• Industrial metal fabrication

The MC200H can be configured for bending a wide range of profiles, including:

• Round tube
• Square and rectangular tube
• Flat bar
• Angle iron
• U-profile
• T-profile
• Solid round bar
• Solid square bar

With a maximum round pipe capacity of 2-1/2" (70 mm), the MC200H provides the bending capacity needed for a wide range of professional metalworking applications. The hydraulic upper shaft system also helps reduce manual adjustment effort when working with larger profiles or applications requiring greater bending force.

Why Choose the MC200H?

The MC200H is designed for fabricators who need greater bending control and hydraulic adjustment than a conventional manual roll bender can provide. Its hydraulic upper shaft system allows the operator to apply controlled bending force while improving repeatability between workpieces.

The combination of dual traction rollers, adjustable shaft positioning, and vertical or horizontal operation makes the MC200H suitable for both general fabrication and more demanding profile bending applications.

Key advantages include:

• Hydraulic upper shaft adjustment for increased bending force
• Reduced operator effort when adjusting the bending position
• Dual traction rollers for consistent material movement
• Suitable for larger profiles and tighter bending radii
• Maximum round pipe capacity of 2-1/2" (70 mm)
• Vertical and horizontal operating positions
• Side correction rollers for spiral and helical bending
• Position sensor system for repetitive production work
• Millimeter positioning scale for repeatable setup
• Supports steel, stainless steel, aluminum, brass, and copper
• Includes 9 standard roller configurations
• Manufactured entirely in Spain

For fabricators producing railings, gates, greenhouse structures, spiral staircases, heat exchanger coils, ornamental ironwork, furniture, and structural profiles, the MC200H provides the added hydraulic control and bending force needed for demanding profile forming applications.

Included Accessories

• 9 standard rollers and washers
• Adjustable roller configurations
• Millimeter positioning scale
• Palletized base for easy transport
• Fully assembled machine ready for operation

Optional & Additional Accessories

• Treated steel rollers
• Sustarin rollers for stainless steel and surface-sensitive materials
• High-precision digital radius gauge
• Wooden export packaging

Technical Specifications
