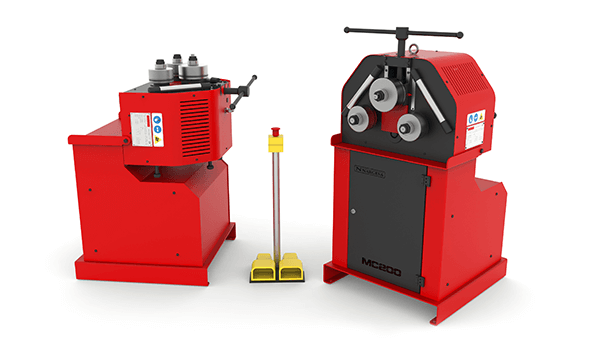

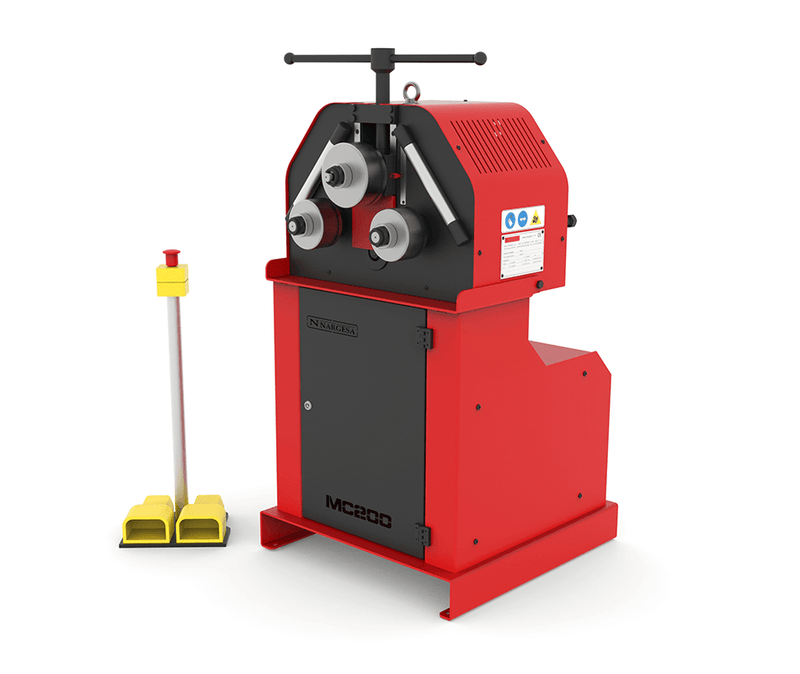

The Nargesa MC200 is a two-driven-roller section and ring roller bender that rolls round pipe up to 2 1/2" (63.5 mm) plus square tube, flat bar, angle and other profiles. A millimetre scale on the upper axis makes bends repeatable, so it suits shops making railings, furniture and greenhouses.
Key specs
| Max. round pipe | 2 1/2" (63.5 mm) |
|---|---|
| Rollers | 2 driven lower rollers; adjustable upper axis with millimetre scale |
| Axes | 40 mm (1.57 in) diameter, 74 mm (2.91 in) useful length |
| Roller speed | 8 rpm |
| Motor | 1.1 kW (1.5 HP) |
| Power supply | 230/400 V three-phase; single-phase on request (other voltages available) |
| Machine dimensions | 790 × 810 × 1300 mm (31.1" × 31.9" × 51.2") |
| Weight | 320 kg (705 lb) |
What's included
- Standard rollers (MC150B/MC200/MC200H set)
- Side corrector rollers for spiral bending
- Delivered fully assembled on a palletized base
Options
- Treated steel and Sustarin rollers
- High-precision digital radius gauge
Features and applications
Key Features
- Heavy-duty industrial section and pipe bending machine
- Dual motorized lower rollers provide improved traction and material control
- Hardened and rectified steel shafts for durability and consistent bending
- Vertical and horizontal operating positions for greater flexibility
- Adjustable upper shaft for precise bending radius control
- Side correction rollers for spiral and helical bending
- Reinforced welded steel frame designed for demanding fabrication environments
- Includes 9 standard rollers and washers
- Processes steel, stainless steel, aluminum, brass, and copper
- Suitable for round, square, rectangular, flat, angle, U-channel, and T-profile materials
- Fully assembled and ready for operation
- Manufactured entirely in Spain
Applications
The MC200 is designed for fabrication environments where accurate and repeatable bending of metal profiles is required.
Typical applications include:
- Railings and gates
- Architectural metalwork
- Greenhouse construction
- Spiral staircases
- Furniture manufacturing
- Decorative and ornamental ironwork
- Pipe and profile rolling
- Automotive and chassis fabrication
- Structural metal fabrication
- Curved frames and arches
- Helical and spiral components
Its vertical and horizontal operating positions make the MC200 particularly useful for fabricators working with larger profiles or longer workpieces that can be difficult to handle on smaller roll benders.
Why Choose the Nargesa MC200?
Producing accurate curves in tube and structural profiles requires controlled roller movement, adequate traction, and consistent pressure throughout the bending process. The MC200 is designed to provide these capabilities while giving fabricators the flexibility to work with a wide variety of profile shapes and materials.
The dual traction rollers maintain positive contact with the workpiece, while the adjustable upper shaft allows operators to progressively control the bending radius. Side correction rollers further expand the machine's capabilities for spiral and helical applications.
Key Advantages
- Heavy-duty construction for professional fabrication environments
- Dual traction rollers improve grip and reduce material slippage
- Vertical and horizontal operation accommodates different workpiece sizes
- Adjustable upper roller provides controlled radius adjustment
- Side correction rollers enable spiral and helical bending
- Handles a wide range of tube, bar, and structural profiles
- Suitable for both standard and specialized fabrication work
- Processes multiple metals including stainless steel and aluminum
- Includes a versatile set of 9 standard rollers
- Manufactured and assembled in Spain
For fabricators producing railings, gates, architectural structures, furniture, spirals, arches, and other curved metal components, the MC200 provides a versatile solution for repeatable profile bending.
Video
Capacity charts and documents
Compare Nargesa models
- Nargesa MC650CNC CNC section & pipe bender
- Nargesa MC550CNC CNC pipe & profile bender
- Nargesa MC650 section & pipe bender
- Nargesa MC550 section & tube bender
- Nargesa MC400 section bender
- Nargesa MC200H hydraulic section bender
- Nargesa MC150B roll bender
- All Nargesa machines
Frequently Asked Questions
What size pipe can the MC200 bend?
Round pipe up to 2 1/2" (63.5 mm). Other profile capacities are in Nargesa’s section bending capacity chart.
What power does the MC200 need?
Nargesa specifies a 1.1 kW (1.5 HP) motor on a 230/400 V three-phase supply. Single-phase is available on request. Other voltages are available. Confirm your shop’s voltage with BTH Sales before ordering.
How is it different from the MC200H?
The MC200H adjusts the upper axis hydraulically and reaches 70 mm round pipe. The MC200 is adjusted manually.
What profiles can it roll?
Round, square and rectangular tube, solid bar, flat bar, angle and other profiles with the standard rollers and washers.
How long does delivery take?
BTH Sales ships across Canada from St. Marys, ON. This machine has a 4–6 week lead time; contact us for an exact date. Please inquire if you need lift gate delivery.
