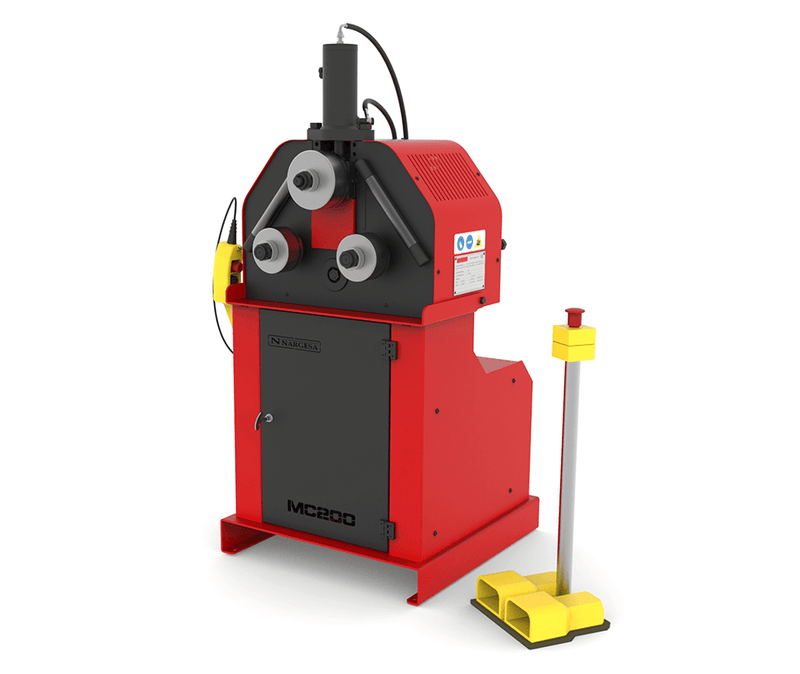

The Nargesa MC200H is a two-driven-roller section bender with hydraulic upper-axis adjustment that rolls round pipe up to 2 1/2" (70 mm), plus square tube, solid bar, channel, tee, angle and flat bar. It comes with 9 standard rollers and works vertically or horizontally.
Key specs
| Max. round pipe | 2 1/2" (70 mm) |
|---|---|
| Rollers | 2 driven knurled lower rollers; hydraulic upper axis |
| Axes | 40 mm (1.57 in) diameter, 74 mm (2.91 in) useful length; 286 mm (11.3 in) between lower axes |
| Roller speed | 8 rpm |
| Motor | 1.85 kW (2.5 CV) |
| Power supply | 230/400 V three-phase |
| Working position | Vertical or horizontal |
| Machine dimensions | 790 × 810 × 1540 mm (31.1" × 31.9" × 60.6") |
| Weight | 360 kg (794 lb) |
What's included
- 9 standard rollers and washers (MC150B/MC200/MC200H set)
- Side corrector rollers for spirals
- Delivered fully assembled on a palletized base
Options
- Treated steel rollers (F155, 62 Rc)
- Sustarin rollers for stainless and aluminum up to 2.5 mm wall
- High-precision digital radius gauge
Features and applications
Key Features
- Hydraulic section and pipe bending machine for professional fabrication applications
- Hydraulic upper shaft adjustment provides increased bending force and operator control
- Dual motorized lower traction rollers for consistent material grip
- Hardened and rectified steel shafts for durability and precise bending
- Reinforced welded steel frame construction

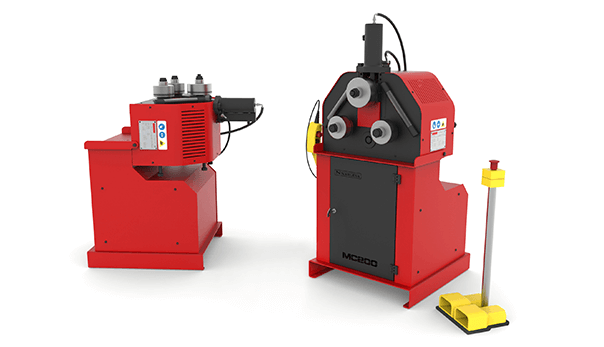

- Vertical and horizontal working positions
- Side correction rollers for spiral and helical bending applications
- Millimeter positioning scale for repeatable machine setup
- Position sensor system for repetitive production work
- Includes 9 standard rollers and washers
- Suitable for steel, stainless steel, aluminum, brass, and copper
- Fully assembled and ready for operation
- Manufactured entirely in Spain
Applications
The Nargesa MC200H is designed for fabrication applications requiring controlled and repeatable bending of tubing, bar, and structural profiles.
Typical applications include:
- Railings and gates
- Greenhouse and structural fabrication
- Spiral staircases
- Furniture manufacturing
- Ornamental ironwork
- Heat exchanger coil bending
- Pipe and profile rolling
- Industrial metal fabrication
The MC200H can be configured for bending a wide range of profiles, including:
- Round tube
- Square and rectangular tube
- Flat bar
- Angle iron
- U-profile
- T-profile
- Solid round bar
- Solid square bar
With a maximum round pipe capacity of 2-1/2" (70 mm), the MC200H provides the bending capacity needed for a wide range of professional metalworking applications. The hydraulic upper shaft system also helps reduce manual adjustment effort when working with larger profiles or applications requiring greater bending force.
Why Choose the MC200H?
The MC200H is designed for fabricators who need greater bending control and hydraulic adjustment than a conventional manual roll bender can provide. Its hydraulic upper shaft system allows the operator to apply controlled bending force while improving repeatability between workpieces.
The combination of dual traction rollers, adjustable shaft positioning, and vertical or horizontal operation makes the MC200H suitable for both general fabrication and more demanding profile bending applications.
Key advantages include:
- Hydraulic upper shaft adjustment for increased bending force
- Reduced operator effort when adjusting the bending position
- Dual traction rollers for consistent material movement
- Suitable for larger profiles and tighter bending radii
- Maximum round pipe capacity of 2-1/2" (70 mm)
- Vertical and horizontal operating positions
- Side correction rollers for spiral and helical bending
- Position sensor system for repetitive production work
- Millimeter positioning scale for repeatable setup
- Supports steel, stainless steel, aluminum, brass, and copper
- Includes 9 standard roller configurations
- Manufactured entirely in Spain
For fabricators producing railings, gates, greenhouse structures, spiral staircases, heat exchanger coils, ornamental ironwork, furniture, and structural profiles, the MC200H provides the added hydraulic control and bending force needed for demanding profile forming applications.
Capacity charts and documents
Compare Nargesa models
- Nargesa MC650CNC CNC section & pipe bender
- Nargesa MC550CNC CNC pipe & profile bender
- Nargesa MC650 section & pipe bender
- Nargesa MC550 section & tube bender
- Nargesa MC400 section bender
- Nargesa MC200 section bender
- Nargesa MC150B roll bender
- All Nargesa machines
Frequently Asked Questions
What size pipe can the MC200H bend?
Round pipe up to 2 1/2" (70 mm). Other profile capacities are in Nargesa’s section bending capacity chart.
What power does the MC200H need?
Nargesa specifies a 1.85 kW (2.5 CV) motor on a 230/400 V three-phase supply. Confirm your shop’s voltage with BTH Sales before ordering.
How is the MC200H different from the MC200?
The MC200H adjusts the upper axis with a hydraulic piston, which Nargesa says bends large pipes and profiles without distortion or effort. The MC200 adjusts it manually.
Can it bend spirals?
Yes. Side corrector rollers control deformation for spiral bending.
How long does delivery take?
BTH Sales ships across Canada from St. Marys, ON. This machine has a 4–6 week lead time; contact us for an exact date.
