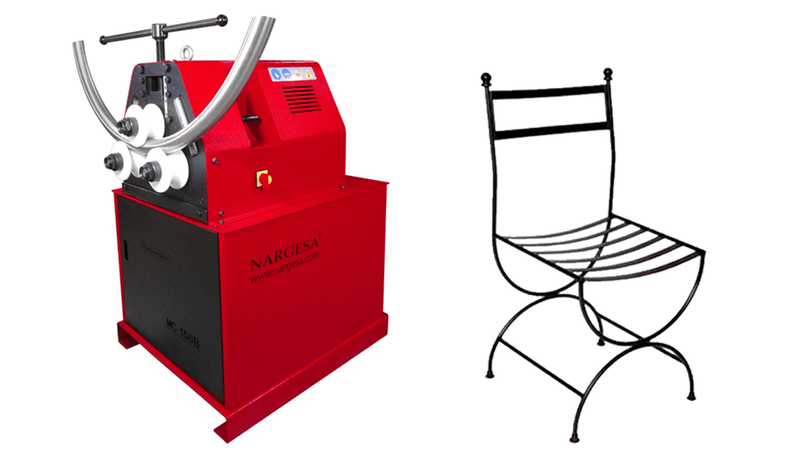

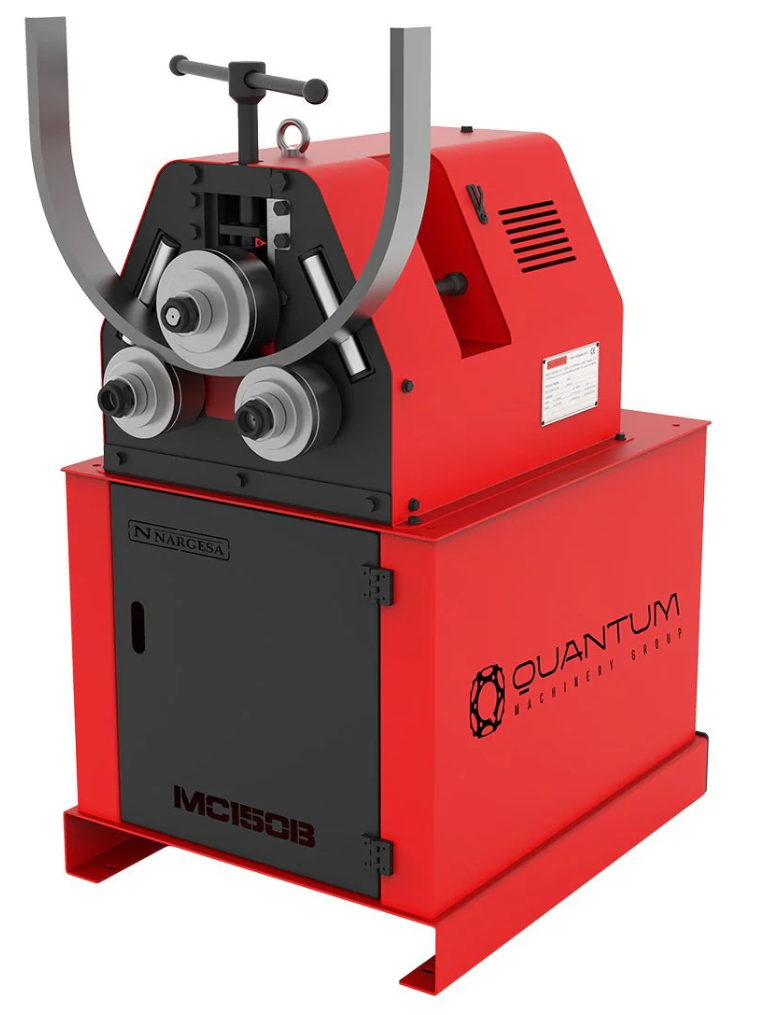

Nargesa MC150B Roll Bender

The Nargesa MC150B Roll Bender is an industrial section and pipe bending machine designed for precision rolling and forming of tube, pipe, flat bar, angle, channel, solid bar, and structural profiles. Manufactured entirely in Spain, the MC150B provides controlled, repeatable bending for fabrication shops, ornamental ironwork, architectural metalworking, and production environments.

The MC150B combines a hydraulic bending system with dual motorized lower rollers, providing consistent material traction and controlled forming throughout the bending process. Its unique horizontal and vertical operating positions give fabricators greater flexibility when handling larger workpieces, longer profiles, and different bending applications.

With interchangeable tooling and the ability to process steel, stainless steel, aluminum, brass, and copper, the MC150B is a versatile roll bender for shops producing curved tubes, rails, frames, structural profiles, spiral components, and other formed metal assemblies.

Key Features

• Industrial roll bender for tube, pipe, bar, and structural profile bending
• Supports both horizontal and vertical working positions
• Dual motorized lower rollers provide improved material traction
• Hydraulic bending system for controlled and repeatable forming
• Manual upper roller adjustment for precise radius control
• Side correction rollers support spiral and staircase applications
• Reinforced welded steel frame for long-term durability
• Interchangeable tooling accommodates multiple profile geometries
• Suitable for steel, stainless steel, aluminum, brass, and copper
• Compact machine footprint for fabrication shops and production environments
• Manufactured entirely in Spain

Applications

The MC150B is designed for fabrication applications requiring accurate curved profiles, tubes, and structural components.

Typical applications include:

• Pipe and tube bending
• Structural profile rolling
• Railing and handrail fabrication
• Gate and fence manufacturing
• Greenhouse construction
• Architectural metal fabrication
• Spiral staircase components
• Automotive and chassis fabrication
• Ornamental ironwork
• General metal fabrication
• Curved frames and structural assemblies

The machine's horizontal and vertical configurations provide additional flexibility when forming longer or heavier workpieces, while the side correction rollers allow the MC150B to produce spiral and helical profiles for applications such as staircases and architectural structures.

System Configuration & Design

The MC150B uses a three-roll bending configuration with two motorized lower rollers and an adjustable upper shaft. Material passes between the rollers while the upper roller applies controlled bending pressure to gradually form the required radius.

Core system components include:

• Reinforced welded steel machine frame
• Two motorized lower rollers
• Hydraulic upper roller adjustment system
• Manual radius adjustment
• Side correction rollers
• Interchangeable profile tooling
• Horizontal and vertical operating configurations

The dual motorized lower rollers provide positive traction on the workpiece during bending, helping maintain consistent material movement and reducing the likelihood of slipping during the forming process.

The side correction rollers provide additional control when producing spiral, helical, and staircase profiles, while the machine's interchangeable tooling allows the same roll bender to accommodate a wide variety of profile shapes.

Why Choose the Nargesa MC150B?

A versatile roll bender can eliminate the need for multiple dedicated machines when a fabrication shop regularly works with different tube, bar, and structural profiles. The MC150B is designed around this flexibility, allowing operators to change tooling and configure the machine for different bending applications.

Its dual motorized rollers provide controlled material movement, while the hydraulic bending system allows operators to progressively form profiles to the required radius.

Key advantages include:

• Bends multiple tube, pipe, bar, and structural profile shapes
• Horizontal and vertical operation provides greater handling flexibility
• Dual motorized rollers improve material traction
• Hydraulic bending provides controlled forming pressure
• Side correction rollers support spiral and helical bending
• Interchangeable tooling expands the machine's application range
• Processes steel, stainless steel, aluminum, brass, and copper
• Suitable for both custom fabrication and repetitive production work
• Manufactured in Spain for professional metalworking applications

For fabrication shops producing railings, gates, architectural structures, curved frames, spiral staircases, and other formed components, the MC150B provides a flexible and repeatable solution for profile bending.

Standard Tooling

The MC150B includes tooling configurations for a range of common profiles, including:

• Square and rectangular tube
• Square bar
• Flat bar
• Angle iron
• C-channel
• T-channel
• Round profiles
• Multiple additional profile geometries
