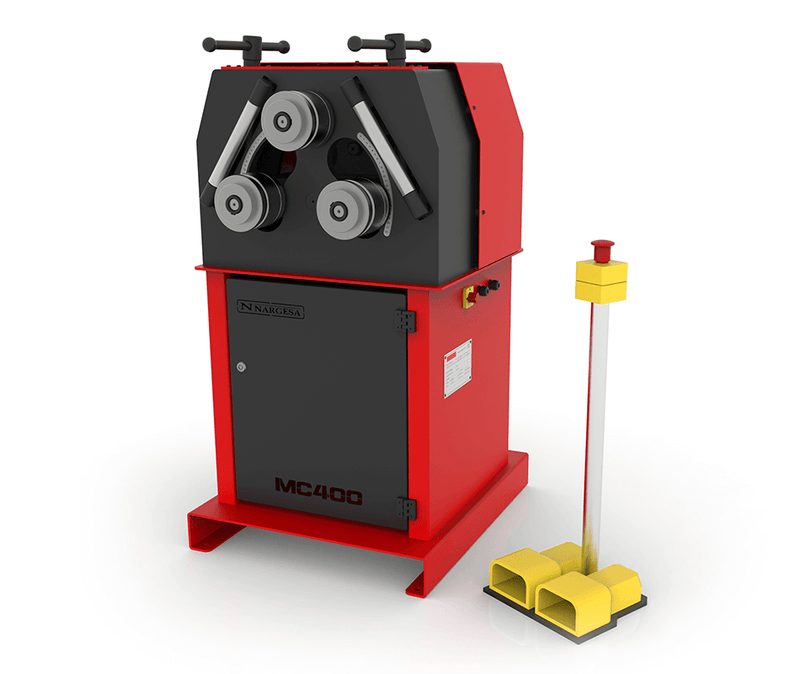

The Nargesa MC400 is a three-driven-roller section bender that rolls round pipe up to 2 1/2" (63.5 mm) plus square tube, flat bar and other profiles. Adjustable lower rollers allow tighter diameters and less wasted material, so it suits shops making railings, furniture and greenhouses.
Key specs
| Max. round pipe | 2 1/2" (63.5 mm) |
|---|---|
| Rollers | 3 driven, 130 mm (5.12 in) diameter |
| Axes | 40 mm (1.57 in) diameter, 80 mm (3.15 in) useful length |
| Roller speed | 7 rpm |
| Motor | 1.1 kW (1.5 HP) |
| Power supply | 230/400 V three-phase |
| Machine dimensions | 660 × 760 × 1250 mm (26 × 29.9 × 49.2 in) |
| Weight | 365 kg (805 lb) |
What's included
- Standard MC400 rollers (F1140 steel, treated and ground)
- Delivered fully assembled on a palletized base
Options
- Treated steel and Sustarin rollers
- High-precision digital radius gauge
Features and applications
Key Features
- Heavy-duty industrial section and pipe bending machine
- Maximum round tube capacity of 2-1/2" (63.5 mm)
- Three traction rollers provide consistent material grip and controlled bending
- Hardened and rectified steel shafts for durability and precise operation
- Vertical and horizontal working positions for improved handling flexibility
- Adjustable lower rollers allow tighter bending radii
- Side correction rollers support spiral and helical bending applications
- Millimeter positioning scales help provide repeatable machine setup
- Reinforced welded steel frame construction for demanding fabrication environments
- Includes 9 standard rollers and washers
- Suitable for steel, stainless steel, aluminum, brass, and copper
- Fully assembled and ready for operation
- Manufactured entirely in Spain
Applications
The Nargesa MC400 is designed for professional metal fabrication applications requiring accurate and repeatable bending of tubing, bar, and structural profiles.
Typical applications include:
- Railings and gates
- Greenhouse and structural fabrication

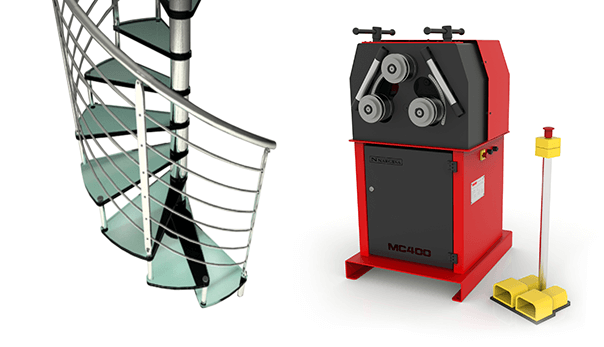

- Spiral staircases
- Heat exchanger coil manufacturing
- Furniture fabrication
- Ornamental ironwork
- Pipe and profile rolling
- Industrial metal fabrication
The MC400 can be configured for bending a wide range of profiles, including:
- Round tube
- Square and rectangular tube
- Flat bar
- Angle iron
- U-profile
- T-profile
- Solid round bar
- Solid square bar
The three-roller configuration provides consistent traction during the bending process, while the adjustable roller arrangement allows fabricators to produce curves, arches, spirals, and other formed profiles with greater control.
Why Choose the MC400?
The MC400 is designed for fabricators who need a versatile section bending machine capable of handling a wide range of profiles and materials. Its three traction rollers provide positive material control, while the adjustable roller system allows operators to achieve accurate bending results across different applications.
The ability to operate the machine in both vertical and horizontal positions also provides additional flexibility when working with larger or more complex workpieces.
Key advantages include:
- Three traction rollers for improved material control
- Maximum round tube capacity of 2-1/2" (63.5 mm)
- Supports a wide variety of tube, bar, and structural profiles
- Vertical and horizontal operating positions
- Adjustable rollers for controlled bending radii
- Side correction rollers for spiral and helical applications
- Millimeter positioning scales for repeatable setup
- Durable construction for professional fabrication environments
- Compatible with steel, stainless steel, aluminum, brass, and copper
- Includes 9 standard roller configurations
- Manufactured entirely in Spain
For fabricators producing railings, gates, greenhouse structures, spiral staircases, heat exchanger coils, furniture, ornamental ironwork, and rolled profiles, the MC400 provides the capacity and flexibility required for a wide range of profile bending applications.
Video
Capacity charts and documents
Compare Nargesa models
- Nargesa MC650CNC CNC section & pipe bender
- Nargesa MC550CNC CNC pipe & profile bender
- Nargesa MC650 section & pipe bender
- Nargesa MC550 section & tube bender
- Nargesa MC200H hydraulic section bender
- Nargesa MC200 section bender
- Nargesa MC150B roll bender
- All Nargesa machines
Frequently Asked Questions
What size pipe can the MC400 bend?
Round pipe up to 2 1/2" (63.5 mm). Other profile capacities are in Nargesa’s section bending capacity chart.
What power does the MC400 need?
Nargesa specifies a 1.1 kW (1.5 HP) motor on a 230/400 V three-phase supply. Single-phase is available on request. Confirm your shop’s voltage with BTH Sales before ordering.
Why three driven rollers?
Nargesa calls three traction rollers essential for bending pipe with a good finish, and the adjustable lower rollers allow smaller bend diameters.
How is it different from the MC200?
The MC400 drives all three rollers and adjusts the lower rollers. The MC200 has two driven rollers and adjusts the upper axis.
How long does delivery take?
BTH Sales ships across Canada from St. Marys, ON. This machine has a 4–6 week lead time; contact us for an exact date.
