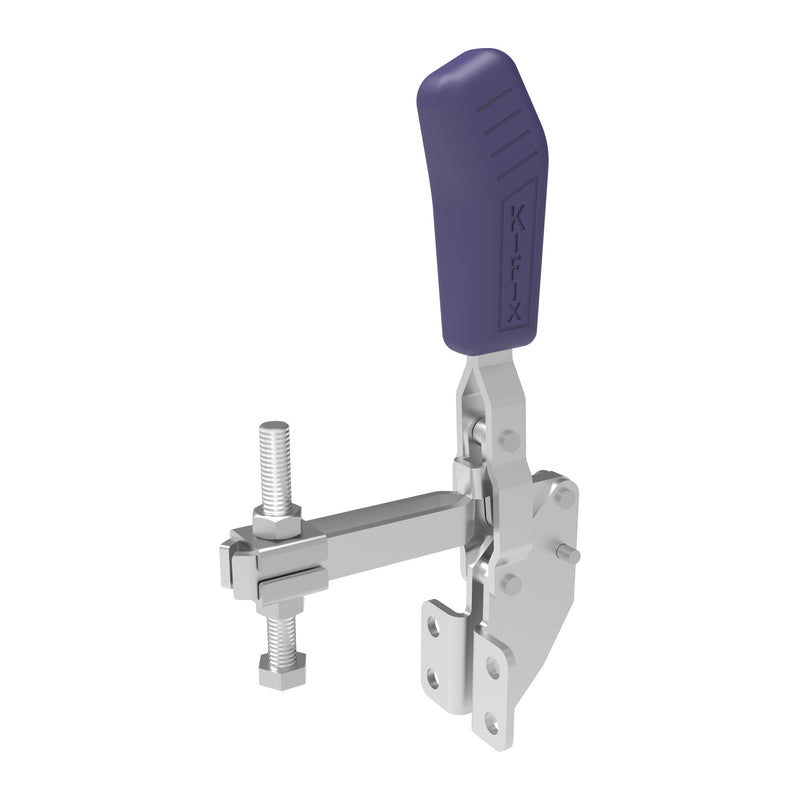

The Kifix KF-211 is a vertical hold-down toggle clamp rated at 150 kgf (330 lbf) holding force, with an M8 spindle thread, for assembly and light welding fixtures. This model has a flanged base, U-bar arm. Kifix toggle clamps are made in Brazil, and BTH Sales is the exclusive Canadian importer of Kifix.
Ships across Canada from our St. Marys, Ontario warehouse.
Choosing between the KF-211 and the KF-311? The KF-211 is the lighter, more compact clamp: 150 kgf (330 lbf), an M8 spindle thread and an overall height of 207 mm, against 250 kgf (550 lbf), M10 and 260 mm on the KF-311.
Key specs
| Holding force | 150 kgf (330 lbf) |
|---|---|
| Opening angle | 100° |
| Spindle thread | M8 |
| Base | Flanged base |
| Arm | U-bar |
| Weight | 0.480 kg (1.056 lb) |
| Brand | Kifix (Brazil) |
Dimensions

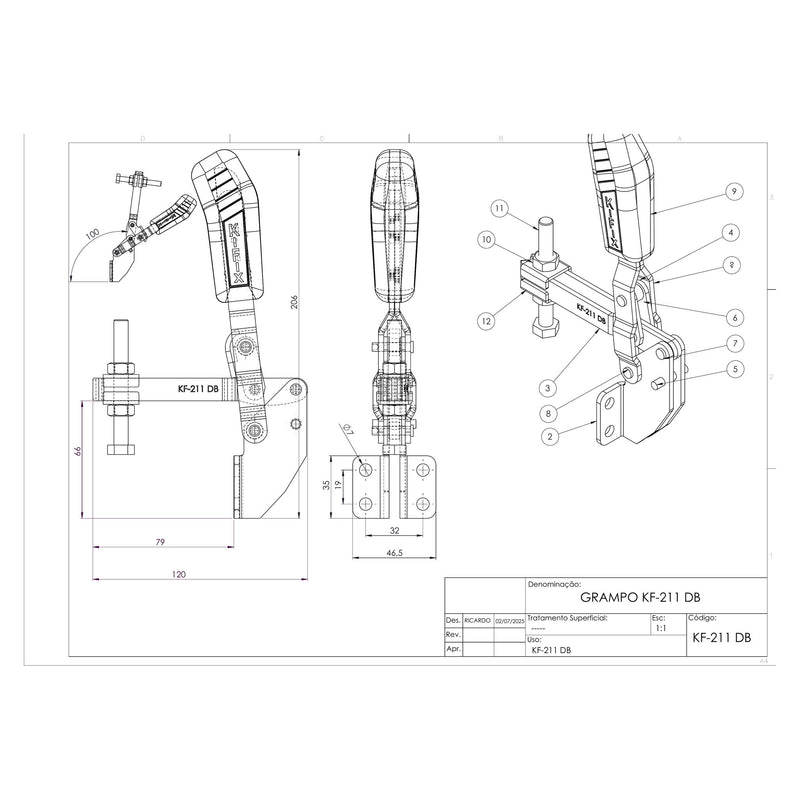

Letters refer to the Kifix dimension drawing in the image gallery.
| A | 207 mm (8.15 in) |
|---|---|
| B | 120 mm (4.72 in) |
| C | 65 mm (2.56 in) |
| D | 19 mm (0.75 in) |
| E | 32 mm (1.26 in) |
| F | 35 mm (1.38 in) |
| G | 46.5 mm (1.83 in) |
| H | 79 mm (3.11 in) |
| J | 7.0 mm (0.28 in) |
Compare
The Kifix KF-211 is comparable in style to the DESTACO 202-U and Carr Lane CL-253-VTC.
DESTACO and Carr Lane are trademarks of their respective owners; BTH Sales and Kifix are not affiliated with them. Part numbers are shown for identification and comparison only; check holding force and dimensions before substituting.
Compatibility
Planning a fixture on a welding table? See our Siegmund welding tables and tooling, System 16 clamps and System 28 clamps. The KF-211 DB adapter fit is listed below.
Mounting on a Siegmund welding table
The KF-211 DB (flanged base) has a 32 × 19 mm base hole pattern, which matches these Siegmund toggle-clamp adapters:
- 2-280715 and 2-280715.1 (System 28): Siegmund System 28 Adapter With Hole Pattern
- 2-160715 (System 16)
- 2-220715 (System 22)
Contact us for 2-160715 or 2-220715.
Typical uses
- Quick-action hold-down in jigs and fixtures: Kifix vertical clamps lock with the handle upright, on an adaptable base, with an arm that carries the clamping spindle
- Welding fixtures: Kifix makes adapters that mount its quick-action clamps directly on welding tables, to simplify welding and improve efficiency and precision
Industries served: Kifix makes quick-action clamps for all industrial segments, highlighting aeronautical, automotive, agricultural, furniture, food, chemical, pharmaceutical, cosmetic and metal-mechanical.
What's included
1 × Kifix KF-211 DB clamp.
Frequently Asked Questions
Can I mount the KF-211 on a Siegmund welding table?
Yes, the KF-211 DB (flanged base) has a 32 × 19 mm base hole pattern that matches Siegmund toggle-clamp adapters 2-280715 and 2-280715.1 (System 28), 2-160715 (System 16) and 2-220715 (System 22). The System 28 adapters are available from BTH Sales (Siegmund System 28 Adapter With Hole Pattern); contact us for the System 16 and System 22 adapters.
How does this compare with the other Kifix vertical clamps we sell?
By holding force and spindle thread: KF-012 DB 90 kgf (198 lbf), M6; KF-211 DB 150 kgf (330 lbf), M8; KF-017 DB 170 kgf (374 lbf), M8; KF-311 DB 250 kgf (550 lbf), M10; KF-411 DB 650 kgf (1430 lbf), M10; KF-111 DB 680 kgf (1496 lbf), M10; the KF-MP series 160 to 450 kgf (352 to 990 lbf), M6 or M8. Choose the clamp whose holding force covers your job.
