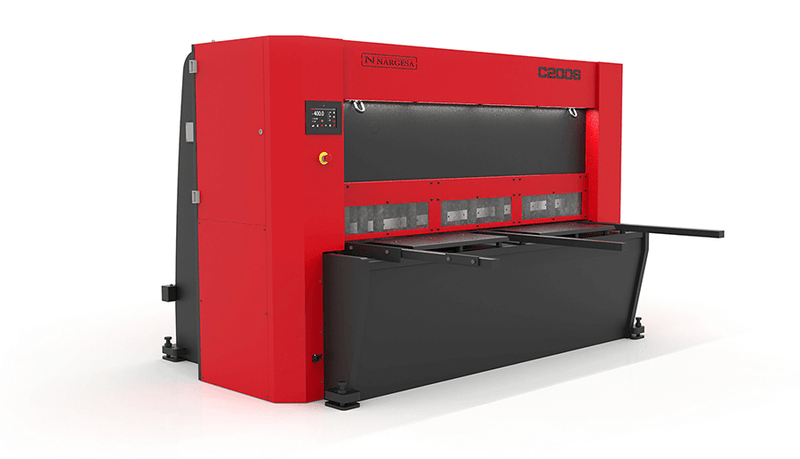

The Nargesa C2006CNC is a CNC vertical-cut hydraulic shear (guillotine) with a 2030 mm (80") cutting length that cuts 6 mm mild steel or 4 mm stainless steel. Its ESA S625 compact CNC positions the rear gauge to ±0.1 mm, so it suits fabrication shops cutting sheet to size in production.
Key specs
| Cutting length | 2030 mm (80") |
|---|---|
| Cutting capacity | 6 mm (0.24 in) mild steel (450 N/mm²), 4 mm (0.16 in) stainless steel (700 N/mm²) |
| Rear gauge travel | 700 mm (27.6 in), ±0.1 mm (0.004 in) repeatability |
| Goose neck | 190 mm (7.48 in) |
| Strokes per minute | 10 (full length) |
| Hydraulic hold-downs | 10 |
| Cutting angle | 1.75° (fixed) |
| Motor | 5.87 kW (7.87 CV) |
| Power supply | 230/400 V three-phase, 50/60 Hz |
| CNC controller | ESA S625 compact CNC |
| Machine dimensions | 2880 × 2360 × 1790 mm (113.4 × 92.9 × 70.5 in) |
| Weight | 5,100 kg (11,244 lb) |
What's included
- Machined bench with ball transfers
- 1000 mm square with millimetre scale and two 1000 mm support arms
- Laser cut-line light and LED front lighting
- Polycarbonate front guards and rear optoelectronic safety guard
- 4-edge upper and lower blades
- Safety foot pedal and emergency stop
- Delivered fully assembled
Features and applications
Key Features
- 2030 mm (80") maximum cutting length
- Cuts mild steel up to 6 mm (0.24")
- Cuts stainless steel up to 4 mm (0.16")
- Vertical-cut shearing system for reduced cutting resistance
- Lower energy consumption compared with conventional shearing systems
- Nargesa-rated blade life of up to 4× longer
- ESA S625 CNC control with 7" colour touchscreen
- CNC storage for thousands of part programs
- Automatic machine configuration based on material, thickness and gauge position
- Precision rear gauge with ±0.1 mm (±0.004") accuracy and repeatability
- 700 mm (27.6") rear gauge travel
- Automatic hydraulic cutting-pressure regulation
- Automatic hydraulic hold-down pressure regulation
- 10 hydraulic sheet hold-downs
- Four usable cutting edges on upper and lower blades
- 1.75° fixed cutting angle
- Laser cutting-line indicator
- Integrated LED front lighting
- Machined worktable with integrated material-support spheres
- 190 mm (7.5") throat depth
- Up to 10 strokes per minute
- Narrow-strip cutting with reduced distortion
- Material extraction ramp
- Front polycarbonate safety screens
- Rear optoelectronic safety protection
- Safety foot pedal and emergency stop
- Rigid welded and stabilized steel construction
- Manufactured in Spain by Nargesa
Applications
The C2006CNC is designed for accurate sheet metal cutting across a range of fabrication and manufacturing applications.
Typical applications include:
- Sheet metal fabrication
- Industrial metal fabrication
- Custom metalwork
- Manufacturing
- HVAC and ductwork fabrication
- General steel processing
- Stainless steel fabrication
- Production cutting
- Repeat-part manufacturing
- Component preparation
- Narrow-strip cutting
- Large-sheet processing
The 2030 mm cutting length allows larger sheets to be processed in a single operation, while the CNC rear gauge provides repeatable positioning for production work.
The vertical cutting system is also beneficial when cutting narrow strips, helping minimize material distortion and improve material utilization.
Why Choose the Nargesa C2006CNC?
The C2006CNC combines the straightforward function of a hydraulic guillotine with CNC-controlled positioning and the efficiency advantages of a vertical cutting system.
The ESA S625 CNC simplifies setup by allowing operators to enter the material type, thickness and required gauge position rather than manually configuring each cutting parameter. Programs can also be stored for repeat production.
The vertical cutting design reduces resistance during the cut, which can contribute to lower energy consumption and reduced blade wear. Combined with four-edge blades and automatic hydraulic pressure control, this helps reduce operating costs while maintaining consistent cutting performance.
Key advantages include:
- 80" cutting capacity
- 6 mm mild-steel cutting capacity
- 4 mm stainless-steel cutting capacity
- CNC-controlled sheet positioning
- ±0.1 mm rear-gauge accuracy and repeatability
- Vertical-cut technology
- Reduced blade wear
- Four-edge cutting blades
- Automatic hydraulic pressure regulation
- 10 hydraulic hold-downs
- Laser cutting-line indication
- Efficient processing of narrow strips
- Large 700 mm rear-gauge travel
- Production capability of up to 10 strokes/minute
- Straightforward CNC operation
- Industrial-duty steel construction
Video
Capacity charts and documents
Compare Nargesa models
- Nargesa C3006CNC 3 m hydraulic shear
- Nargesa MX700 hydraulic punching machine
- Nargesa MX340G CNC punching machine
- All Nargesa machines
Frequently Asked Questions
How thick can the C2006CNC cut?
Nargesa rates it for 6 mm mild steel (450 N/mm²) and 4 mm stainless steel (700 N/mm²) over the full 2030 mm cutting length.
What power does the C2006CNC need?
Nargesa specifies a 5.87 kW motor on a 230/400 V three-phase, 50/60 Hz supply. Confirm your shop’s voltage with BTH Sales before ordering.
Why a vertical-cut shear?
Nargesa says vertical cutting needs less force than swing-beam shearing, gives a cleaner cut, and makes the 4-edge blades last about four times longer.
Which controller does it use?
An ESA S625 compact CNC with a material database. You enter the part length and it positions the rear gauge to ±0.1 mm.
How long does delivery take?
BTH Sales ships across Canada from St. Marys, ON. This machine has a 4–6 week lead time; contact us for an exact date.
