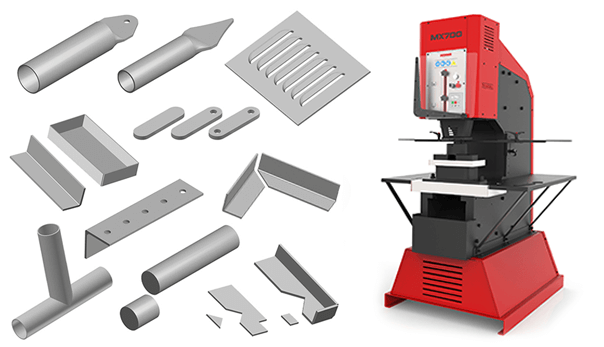

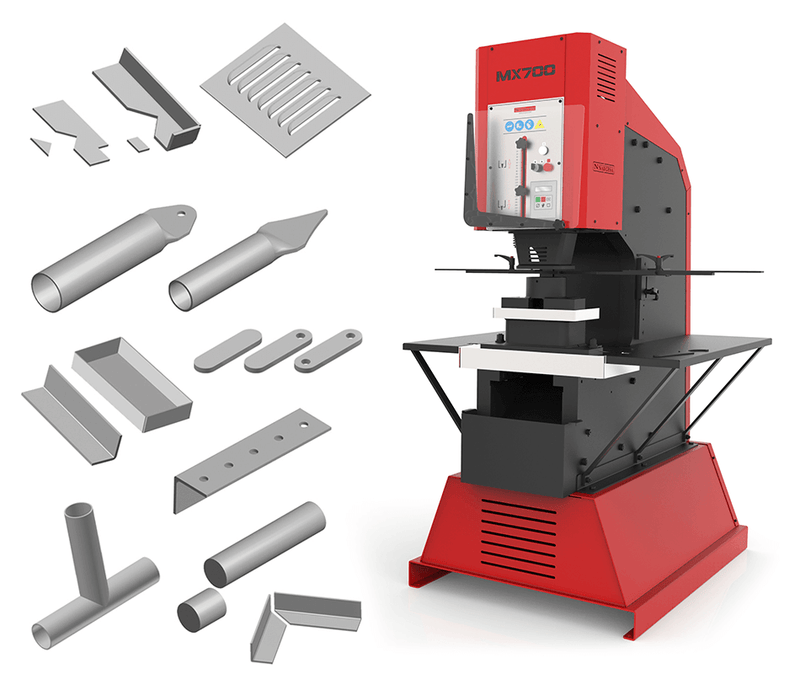

Nargesa Hydraulic Punching & Shearing Machine MX700
The Nargesa MX700 Hydraulic Punching & Shearing Machine is a heavy-duty 70-ton hydraulic ironworker designed to perform punching, shearing, bending, notching, embossing, and custom forming operations from a single, versatile workstation. Manufactured entirely in Spain, the MX700 delivers industrial-grade hydraulic performance for fabrication shops, structural steel manufacturers, ornamental ironworkers, and production environments that require power, precision, and flexibility.
With a generous 350 mm (13.78") gooseneck, 160 mm (6.30") punch stroke, and 600 × 350 mm (23.62" × 13.78") worktable, the MX700 accommodates larger workpieces and a broad range of tooling configurations. Its fast-change tooling system, integrated digital display, and compatibility with more than 40 optional tooling solutions allow operators to complete multiple fabrication processes on one machine while minimizing setup time.
Designed to replace several standalone fabrication machines, the MX700 helps improve workflow efficiency, maximize floor space, and increase production capacity across a wide variety of metalworking applications.
Key Features
- 70-ton hydraulic punching force for demanding fabrication applications
- Multifunction machine for punching, shearing, bending, notching, embossing, and forming
- Large 350 mm (13.78") gooseneck accommodates oversized workpieces and tooling
- Long 160 mm (6.30") ram stroke increases application flexibility
- Fast tooling changes in less than 30 seconds
- Oversized 600 × 350 mm (23.62" × 13.78") worktable provides excellent workpiece support
- Digital display with stroke counter and production parts counter
- Integrated alarm diagnostics system for simplified troubleshooting
- Foot pedal operation with swinging front safety guard
- Compatible with more than 40 standard and custom tooling options
- Delivered fully assembled and ready for installation
- Manufactured entirely in Spain
Applications
The Nargesa MX700 is designed for fabrication facilities that require one machine capable of performing multiple metalworking operations with minimal setup.
Typical applications include:
- Punching flat bar, angle, tube, channel, UPN, IPN, and structural profiles
- Pipe notching and fish-mouth cutting
- Sheet metal cutting and bending
- Embossing and stamping
- Ornamental ironwork fabrication
- Structural steel fabrication
- Fence, gate, and railing manufacturing
- Custom metal fabrication
- Industrial production and manufacturing
Its large work area and extensive tooling compatibility make the MX700 ideal for shops producing everything from one-off custom parts to high-volume production components.
System Configuration & Design
The MX700 is built around a reinforced hydraulic frame engineered to deliver maximum rigidity, accuracy, and long-term durability in demanding production environments.
Core system features include:
- 70-ton hydraulic punching system
- Reinforced welded steel frame
- 350 mm (13.78") gooseneck design
- 160 mm (6.30") hydraulic stroke
- Large 600 × 350 mm (23.62" × 13.78") worktable
- Digital production display with stroke and parts counter
- Alarm diagnostics system
- Safety foot pedal controls
- Swinging front safety guard
- Rapid tooling change system
- Support for more than 40 interchangeable tooling configurations
The machine's modular tooling system allows operators to switch quickly between fabrication operations, helping reduce downtime while increasing production flexibility.
Why Choose the Nargesa MX700?
Modern fabrication shops often require multiple operations on a wide variety of materials without dedicating valuable floor space to separate machines. The MX700 combines the capabilities of several fabrication systems into one powerful hydraulic workstation.
Its high punching capacity, oversized work area, and extensive tooling options allow fabricators to complete a broad range of operations efficiently while reducing setup time and improving workflow.
Key advantages include:
- Combines multiple fabrication processes into one machine
- Powerful 70-ton hydraulic punching capacity
- Large gooseneck and extended stroke support oversized workpieces
- Fast tooling changes improve productivity
- Compatible with a wide range of standard and custom tooling
- Digital production monitoring and diagnostic system
- Heavy-duty construction for continuous industrial use
- Delivered fully assembled for quick installation
For fabrication shops seeking a versatile hydraulic punching and shearing machine capable of handling demanding production work, the MX700 offers industrial performance, flexibility, and long-term reliability.
Available Tooling & Accessories
- Round, square, oval, and rectangular punches and dies
- Pipe notching tooling
- Angle cutting tooling
- Flat bar cutting tooling
- Folding tooling
- Ventilation grille tooling
- Corner rounding tooling
- Arrow tooling for fence manufacturing
- Round bar cutting tooling
- Custom tooling solutions
Technical Specifications
| Specification | Details |
|---|---|
| Model | Nargesa MX700 |
| Hydraulic Capacity | 70 Ton |
| Working Speed | 9 mm/sec |
| Return Speed | 14 mm/sec |
| Punch Stroke | 160 mm (6.30") |
| Gooseneck | 350 mm (13.78") |
| Worktable Size | 600 × 350 mm (23.62" × 13.78") |
| Motor Power | 5.5 kW (7.5 HP) |
| Voltage | 400V Three-Phase |
| Machine Dimensions | 1130 × 1370 × 2060 mm (44.49" × 53.94" × 81.10") |
| Machine Weight | 2000 kg (4,409 lb) |
| Country of Manufacture | Spain |
Frequently Asked Questions
What is the Nargesa MX700 used for?
The MX700 is a multifunction hydraulic fabrication machine capable of punching, shearing, bending, notching, embossing, and forming a wide variety of steel components using interchangeable tooling.
How much punching force does the MX700 provide?
The machine delivers 70 tons of hydraulic punching force, making it suitable for demanding fabrication and structural steel applications.
What materials can the MX700 process?
The MX700 can process flat bar, angle iron, tube, channel, UPN, IPN, structural profiles, and sheet metal using the appropriate tooling.
How quickly can tooling be changed?
The rapid-change tooling system allows operators to switch tooling in less than 30 seconds, minimizing downtime between operations.
Does the MX700 support custom tooling?
Yes. In addition to an extensive range of standard tooling, the MX700 supports custom tooling for specialized fabrication applications.
Is the machine suitable for production environments?
Yes. Its heavy-duty hydraulic system, large worktable, digital production display, and robust construction make it ideal for continuous industrial production as well as custom fabrication work.
What safety features are included?
The MX700 includes a swinging front safety guard, foot pedal controls, integrated alarm diagnostics, and a reinforced machine structure designed for safe day-to-day operation.
Is the machine delivered assembled?
Yes. The MX700 is supplied fully assembled, allowing for faster installation and commissioning after delivery.
