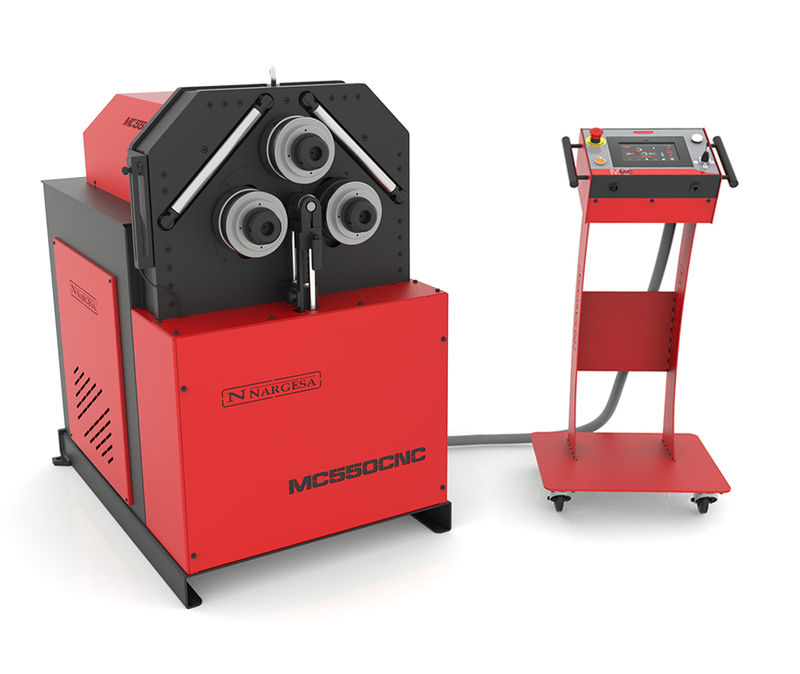

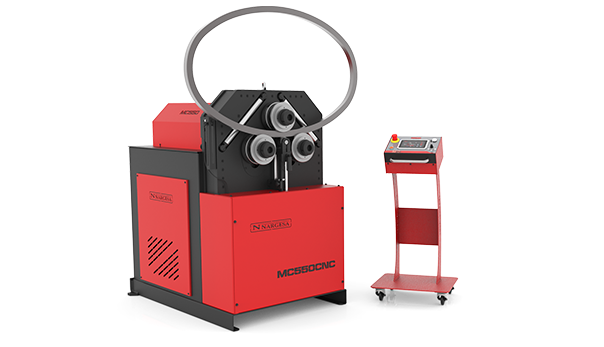

The Nargesa MC550CNC is a three-roller CNC pipe and profile bender that rolls round pipe up to 3" (76.2 mm) or 80 mm, plus square tube, flat bar and other profiles. It runs on 220 V single-phase power and uses an ESA S625 CNC that predicts radiuses, so it suits shops making one-off pieces or production runs.
Key specs
| Max. round pipe | 3" (76.2 mm) or 80 mm |
|---|---|
| Rollers | 170 mm (6.7") outer diameter |
| Axles | F154 steel, tempered and ground; 50 mm (2") diameter; 90 mm useful length |
| Roller speed | 3–8 rpm, adjustable |
| Main motor | 1.5 kW (2 CV) |
| Hydraulic unit | 0.75 kW (1 CV) |
| Power supply | 220 V single-phase |
| CNC controller | ESA S625 touchscreen, radius prediction, 10,000+ programs |
| Working position | Vertical or horizontal |
| Machine dimensions | 965 × 1190 × 1341 mm (38" × 46.9" × 52.8") |
| Weight | 883 kg (1,947 lb) |
What's included
- Standard MC550 rollers (F155 steel, treated and ground)
- Delivered fully assembled on a palletized base
Options
- Additional roller sets for specific profiles
Features and applications
Key Features
- Maximum round tube capacity of 3" (76.2 mm) for large tube and profile bending applications
- Fully integrated CNC control system simplifies programming and improves repeatability
- Automatic radius prediction technology reduces setup time and minimizes material waste
- Three driven traction rollers provide improved material control and smoother deformation throughout the bending process
- Programmable multi-step bending sequences allow operators to create complex profiles and curved components
- Stores more than 10,000 bending programs for fast production changeovers and repeat manufacturing
- Adjustable roller speeds provide greater control across different materials and profile types
- Vertical and horizontal operating positions increase flexibility when handling long workpieces
- Industry 4.0 connectivity and remote diagnostics support modern manufacturing environments
- Heavy-duty welded steel construction is designed for continuous industrial use
- Manufactured entirely in Spain using precision-machined components and industrial-grade materials
Applications
The MC550CNC is designed for fabrication shops and manufacturers that require precise, repeatable profile rolling across a wide range of industrial applications.
Typical applications include:
- Structural steel fabrication
- Railings, gates, and architectural metalwork
- Greenhouses and pergola manufacturing
- Spiral staircases and curved structural frameworks
- Industrial piping systems
- Process equipment fabrication
- Urban furniture manufacturing
- Heat exchanger and coil production
- Automotive component manufacturing
- Specialty metal forming and custom fabrication
The machine is particularly well suited for applications that involve multiple bend radii, repeated production runs, or complex geometries that would be difficult to reproduce using conventional manual profile rollers.
Why Choose the Nargesa MC550CNC?
The biggest advantage of the MC550CNC is its ability to combine heavy-duty bending capacity with intelligent CNC automation.
Traditional section bending often requires multiple test pieces to determine the correct roller position and bending sequence. The MC550CNC significantly reduces this process through its automatic radius prediction system, allowing operators to achieve accurate results more quickly while reducing wasted material.
The machine's ability to store more than 10,000 programs also makes it an excellent choice for manufacturers producing recurring parts. Previously saved programs can be recalled instantly, eliminating repetitive setup procedures and improving overall productivity.
Combined with Industry 4.0 connectivity, encoder-controlled movement, and a robust three-roll drive system, the MC550CNC provides fabricators with a powerful and highly flexible solution for modern profile bending applications.
Capacity charts and documents
Compare Nargesa models
- Nargesa MC650CNC CNC section & pipe bender
- Nargesa MC650 section & pipe bender
- Nargesa MC550 section & tube bender
- Nargesa MC400 section bender
- Nargesa MC200H hydraulic section bender
- Nargesa MC200 section bender
- Nargesa MC150B roll bender
- All Nargesa machines
Frequently Asked Questions
What size pipe can the MC550CNC bend?
Round pipe up to 3" (76.2 mm) or 80 mm. Capacities for other profiles are in Nargesa’s section bending capacity chart.
What power does the MC550CNC need?
Nargesa specifies 220 V single-phase, with a 1.5 kW main motor and a 0.75 kW hydraulic unit. Confirm your supply with BTH Sales before ordering.
Do I need bending experience to run it?
Nargesa designed the CNC so operators without bending experience can program radiuses directly. Its predictive system reaches the target radius while limiting material waste.
Can it work horizontally?
Yes. Nargesa recommends the vertical position for radiuses up to 750 mm and the horizontal position for larger radiuses.
How long does delivery take?
BTH Sales ships across Canada from St. Marys, ON. This machine has a 4–6 week lead time; contact us for an exact date.
