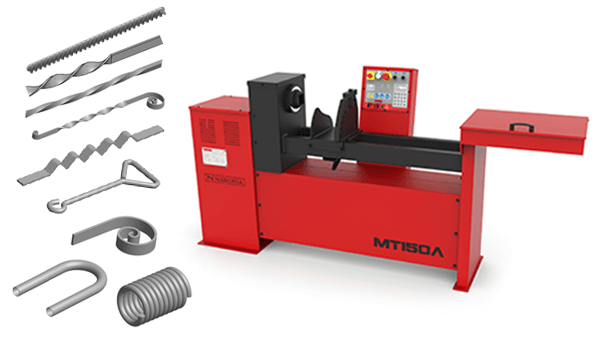

The Nargesa MT150A is an automatic cold twisting and scroll bending machine that twists square bar up to 20 mm (3/4"), bends square bar up to 16 mm (5/8") and handles flat bar up to 35 × 10 mm. Its programmer repeats series, so it suits ornamental ironwork shops making balusters, scrolls and grilles.
Key specs
| Square bar twisting | 20 mm (3/4") |
|---|---|
| Square bar bending | 16 mm (5/8") |
| Flat bar / handrail | 35 × 10 mm (1 1/4" × 3/8") |
| Max. continuous scrolling length | 960 mm (37.8 in) |
| Rotation speed | 0–9 rpm, adjustable |
| Motor | 0.37 kW (0.5 HP) |
| Power supply | 230 V single-phase (other voltages available) |
| Control | Programmer for repeat series, piece counter, automatic release |
| Machine dimensions | 2270 × 635 × 1115 mm (89.4" × 25" × 43.9") |
| Weight | 260 kg (573 lb) |
What's included
- Standard tooling for twisting, rings, scrolls, spirals, links and hooks
- Delivered fully assembled on a palletized base
Options
- Flat bent ring tooling, inner diameter 96, 100 and 110 mm
- Belly top railing tooling, 225 mm diameter
- Flat bar folding tooling
- Edge scroll tooling
- Baskets tooling
Features and applications
Key Features
- 20 mm (3/4-inch) square bar twisting capacity for a wide range of ornamental applications.
- 16 mm (5/8-inch) round or square bar bending capacity.
- Handles flat bar up to 35 × 10 mm (1-1/4 × 3/8 inches) for twisting and bending.
- Cold-working operation eliminates the need to heat material before forming.
- Produces twists, scrolls, rings, hooks, links, chains, baskets and other decorative shapes.
- 8 programmable memories allow frequently used designs to be stored and reproduced.
- Piece counter helps track production quantities.
- Automatic return function returns the machine to its starting position after an operation.
- Adjustable rotation speed from 0–9 rpm for controlled forming and positioning.
- Forward and reverse rotation for flexible operation.
- Welded and machined steel monoblock construction provides a rigid working platform.
- Treated flat-pinion transmission provides reliable power transfer and durability.
- Adjustable millimeter scale assists with repeatable positioning.
- Comprehensive standard tooling allows the machine to perform multiple ornamental operations.
- Metric and imperial tooling options accommodate different material standards.
- Optional tooling expands the machine's capabilities for specialized ornamental designs.
- Custom fitting plates can be supplied for fabricators developing their own decorative profiles.
- Palletized lower bench makes the machine easier to reposition within the workshop.
- Delivered fully assembled.
Applications
The MT150A is designed primarily for ornamental ironwork, architectural metal fabrication and decorative blacksmithing.
Typical applications include:
- Gates and entrance gates.
- Fences.
- Window grilles.
- Railings and handrails.
- Balusters.
- Balconies.
- Decorative doors and windows.
- Metal furniture.
- Tables and chairs.
- Decorative panels.
- Architectural metalwork.
- Custom blacksmithing.
- Ornamental components for fabrication and construction.
The machine can produce:
- Twisted square bars.
- Twisted round bars.
- Scrolls and spirals.
- Rings.
- Hooks.
- Links.
- Chains.
- Braided bars.
- Decorative baskets.
- Belly Top railing components.
- British rail components.
- Custom decorative shapes.
Why Choose the Nargesa MT150A?
The MT150A combines several ornamental forming operations into a single machine, allowing fabricators to produce a much wider variety of decorative components without relying on separate equipment for each operation.
Its 20 mm twisting capacity and 16 mm bending capacity cover many of the material sizes commonly used in ornamental ironwork, while the extensive tooling selection allows fabricators to produce everything from basic twists and rings to scrolls, hooks, chains and specialized railing components.
The automatic piece programmer is particularly useful for repeat production. Once a design is programmed, the machine can repeatedly perform the same movement while counting completed pieces and returning to the starting position. This helps improve consistency when producing multiple identical components.
At the same time, the MT150A remains straightforward to operate. Its adjustable speed, forward/reverse controls and millimeter positioning scale make it practical for custom one-off work as well as production runs.
Video
Capacity charts and documents
Compare Nargesa models
- Nargesa MT500A CNC twisting machine
- Nargesa NOA60 iron embossing machine
- Nargesa NF70 hot wrought iron end machine
- Nargesa PC16 hot scroll end machine
- All Nargesa machines
Frequently Asked Questions
What can the MT150A make?
Twisted bars, balusters, scrolls, spirals, rings, links and hooks in square, round, tube, handrail and flat bar.
What power does the MT150A need?
Nargesa specifies a 0.37 kW (0.5 HP) motor on 230 V single-phase power. Other voltages are available. Confirm your shop’s voltage with BTH Sales before ordering.
What is the maximum twisting capacity?
20 mm (3/4") square bar, with up to 960 mm of continuous scrolling length.
How is it different from the MT500A?
The MT150A twists up to 20 mm square bar and runs on 230 V single-phase power. The MT500A CNC twists up to 40 mm and has an ESA S820 CNC.
How long does delivery take?
BTH Sales ships across Canada from St. Marys, ON. This machine has a 4–6 week lead time; contact us for an exact date. Please inquire if you need lift gate delivery.
