Siegmund System 16 - Stop & Clamping Square 300G

Vendor BTH Sales
Regular price $194.00
Sale price $194.00 Regular price
Sale Sold out
Unit price
/per
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.

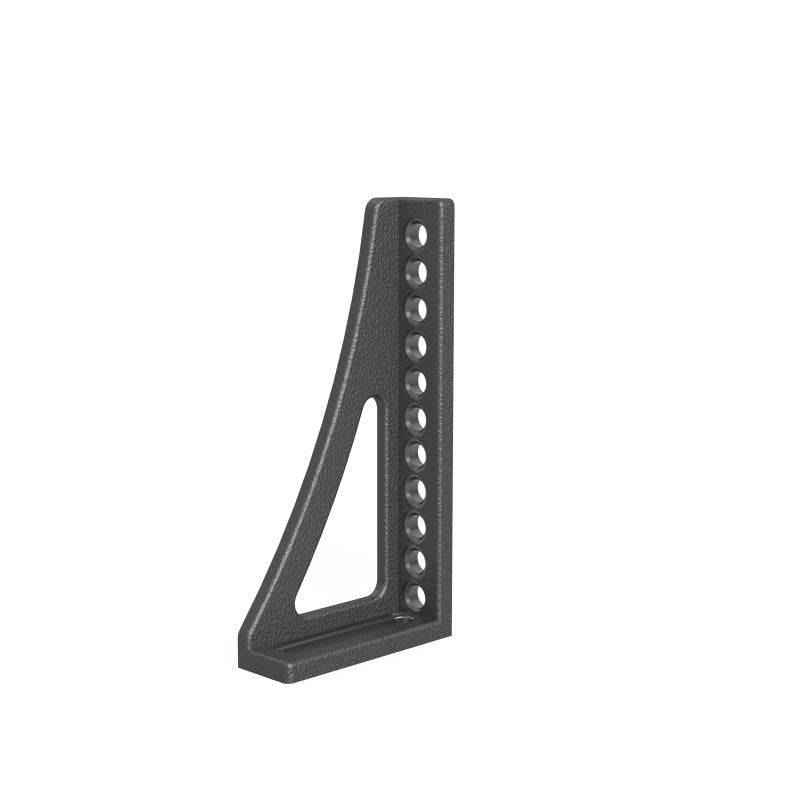

SIEGMUND SYSTEM 16 - STOP AND CLAMPING SQUARE 300G



The Siegmund System 16 Stop and Clamping Squares are compatible with any 16mm fixture table. Made in Germany to the highest of quality assurance, you know that with Siegmund tooling, you will never be let down.

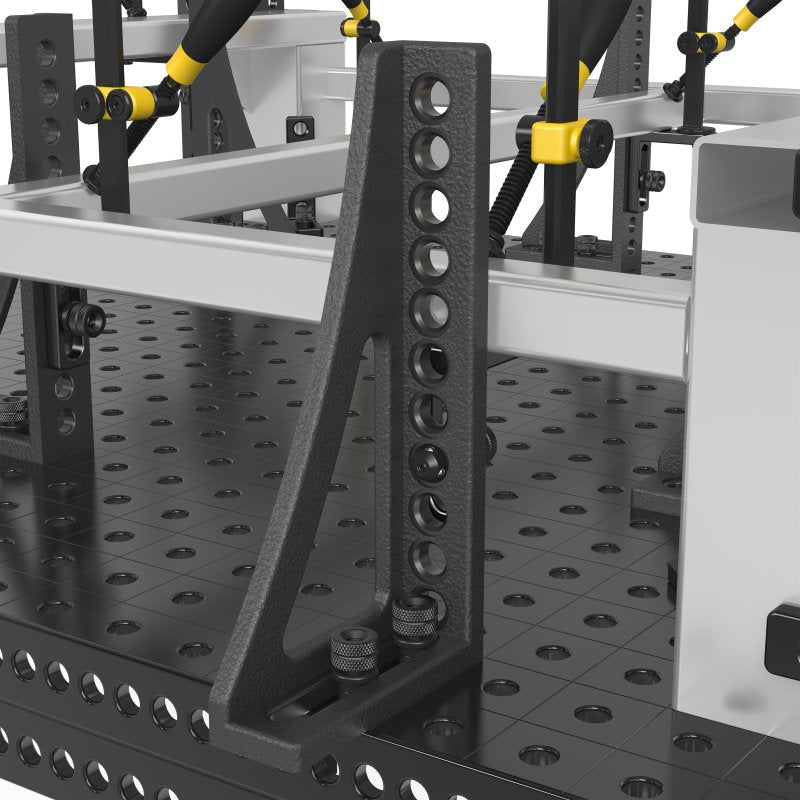

Stop and Clamping Square standard with fine scale serves as an adjustable angle. The combination of system boreholes and the oblong slot facilitates multi-functional use. The additional top plate provides further combination options in connection with other squares, or to incorporate tools like prisms or clamps. Stop and Clamping Squares, can be used for a large variety of tasks, such as a table extension for lightweight components. Due to the oblong slot, it can also function as a stop for high elements.


Technical Data:

 Item No.: 2-160162.N

Stop and Clamping Square 300 G ‐ nitrided

Length (a) 150 mm
Width (b) 49 mm
Height (c) 300 mm
Material thickness (d) 12 mm
Weight 2,51 kg



Product description
Stop and Clamping Square, fixed and variably adjustable due to the combination of system boreholes and elongated hole. It can be used versatilely e.g. as table extension. This element is manufactured of high quality GGG40 ductile cast iron.

‐ stop on left
