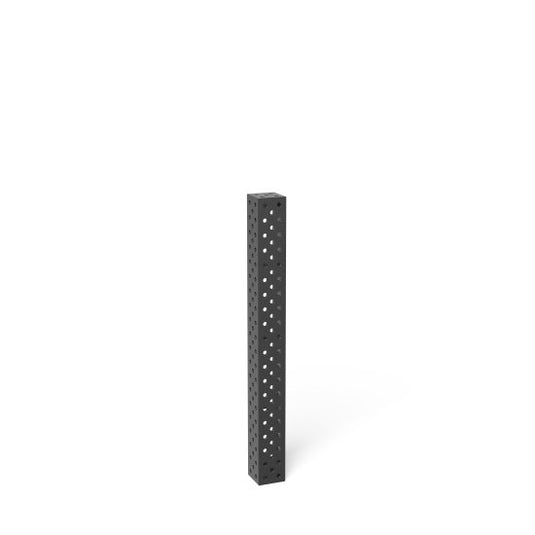

Item 800390.X7: Siegmund Square U-Shape 2000x200x200 Premium Light, plasma nitrided, for System 28 welding tables with Ø28 mm bores. Siegmund says Premium Light's harder but thinner X8.7 tool steel (15 mm) saves up to 40% weight; it serves as a table extension, for vertical setups and to connect two welding tables. BTH Sales is the exclusive Canadian importer of Siegmund.
Specifications
| Siegmund article | 800390.X7 (siegmund.com) |
|---|---|
| System | Siegmund System 28 (Ø28 mm bores, 100 mm grid) |
| Length | 2000 mm (78.74 in) |
| Width | 200 mm (7.87 in) |
| Height | 200 mm (7.87 in) |
| Material thickness | 15 mm (0.59 in) |
| Weight | 143 kg (315.26 lb) |
| Finish | Plasma nitrided |
| Material | Through-hardened tool steel, Siegmund X8.7 |
| Bores | Five sides; optional diagonal hole arrangement (Siegmund) |
| Grid lines | 100 mm spacing |
| Fixing to the table | Connecting Bolt 800562 (Siegmund) |
| Leg mounting holes | On the back (Siegmund: all U-squares from 500 mm length) |
| GTIN | 4251805934991 |
Related products & accessories
-
Siegmund System 16 & 28 - Anti-Splatter
From $38.00
-
Siegmund System 16 & 28 - Clean Basic
From $32.00
-
Siegmund System 16 & 28 - Ground Connection Comfort
$104.00
-

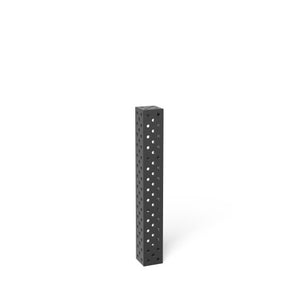

Siegmund System 28 - Square U-Shape 1500x200x200 Premium Light
$2,720.00
-

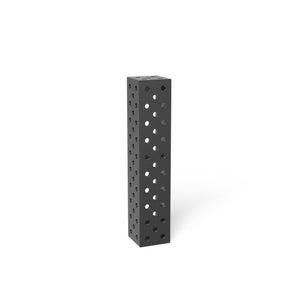

Siegmund System 28 - Square U-Shape 1000x200x200 Premium Light
$1,908.00
-

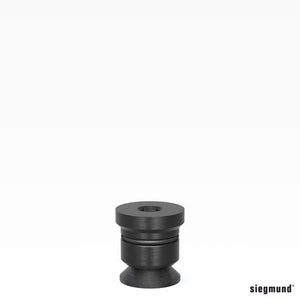

Siegmund System 28 - Connecting Bolt Premium Light
$47.00
-
Siegmund System 28 - Spare Parts for Bolts
From $5.00
Compatibility
- Fits: Siegmund System 28 welding tables and tooling with Ø28 mm bores on a 100 mm grid. Siegmund System 28 accessories also fit other 28 mm system welding tables with Ø28 mm bores on a 100 mm grid. Compatible tables from other manufacturers are often made from different materials and to different standards, so quality varies by manufacturer, compared with Siegmund's X8.7 tool steel.
- Not compatible: System 16 (Ø16 mm) tables; Siegmund builds each system around one bore size.
- Works with: other Siegmund System 28 clamps, bolts, stops, squares and U-squares on the same table.
- Care & grounding: anti-spatter spray, CleanBasic cleaner, Ground Connection Comfort (S16/S28).
What's included
- 1 x Siegmund Square U-Shape 2000x200x200 Premium Light Plasma nitrided (800390.X7)
Engineering support & demos
Engineering support comes with your purchase: fixture design, layout drawings, CAD and 3D models, site visits and cobot cell planning, handled by Travis Hardcastle at BTH Sales or by Siegmund directly. BTH Sales does not sell cobots; for cobot cells we help with table integration and fixturing (see cobot welding with Siegmund tables). Live demos at our St. Marys showroom are by appointment (book a demo), and we offer video demos if you are outside Ontario. BTH Sales is family-owned, founded in 2001, and has been the exclusive Canadian importer of Siegmund since 2018.
Typical uses
- Extending a welding table (Siegmund).
- Vertical setups (Siegmund).
- A sturdy connection between two welding tables (Siegmund).
- Siegmund describes System 28 as ideal for light to heavy components and designed for maximum clamping forces, multi-ton structures and high distortion forces.
Industries served: Siegmund's published practical examples show its welding tables and tooling in these sectors: Agriculture; Interior; Lighting and electrical engineering; Machine tools and plant construction; Measurement and testing technology; Motorcycle engineering; Revolving door systems; Robotic technology; Stage technology; Stainless steel processing; Steel, sheet metal and metal construction; Textile production; Train Construction; Vehicle construction; Welding technology; Woodworking.
Frequently Asked Questions
Which lengths does Siegmund make in this section?
Siegmund lists the System 28 Premium Light 200x200 U-square in lengths of 500, 1000, 1500, 2000 mm. Weight rises with length (500x200x200 42 kg; 1000x200x200 76 kg; 1500x200x200 110 kg; 2000x200x200 143 kg, Siegmund). This one is 2000 mm long and weighs 143 kg.
How is it fixed to a standard table?
Siegmund says the Premium Light U-squares are fastened to the table with Connecting Bolt 800562, which is designed to connect Siegmund tables and components with 25 mm material thickness to Premium Light components with 15 mm material thickness.
Do I need anything extra to clamp on Premium Light?
Yes. Siegmund says that for clamping on Premium Light with a clamping bolt, the Adjusting Ring 280653.N is required to compensate for the lower material thickness.
Does it need support as a table extension?
Yes. Siegmund says that when a U-square is used as a table extension exceeding 1,000 mm, it has to be supported by a table leg, and that from a length of 500 mm all U-squares have mounting holes on the back to attach table legs.
Will it fit other 28 mm welding tables?
Yes, if the table has Ø28 mm bores on a 100 mm grid. Check the bore diameter and grid before ordering. Compatible tables from other manufacturers are often made from different materials and to different standards, so quality varies by manufacturer, compared with Siegmund's X8.7 tool steel.
Related parts
- System 28 Square U-Shape 1500x200x200 Premium Light
- System 28 Square U-Shape 1000x200x200 Premium Light
- System 28 Connecting Bolt Premium Light (800562)
- System 28 bolt spare parts, incl. Adjusting Ring 280653.N
- All Siegmund System 28 U-squares
Ships across Canada from 5 Industrial Rd, St. Marys, ON N4X 1G2, or pick up from our warehouse. Email sales@bthsales.ca or call +1-519-461-1381 with questions or for a freight quote.
