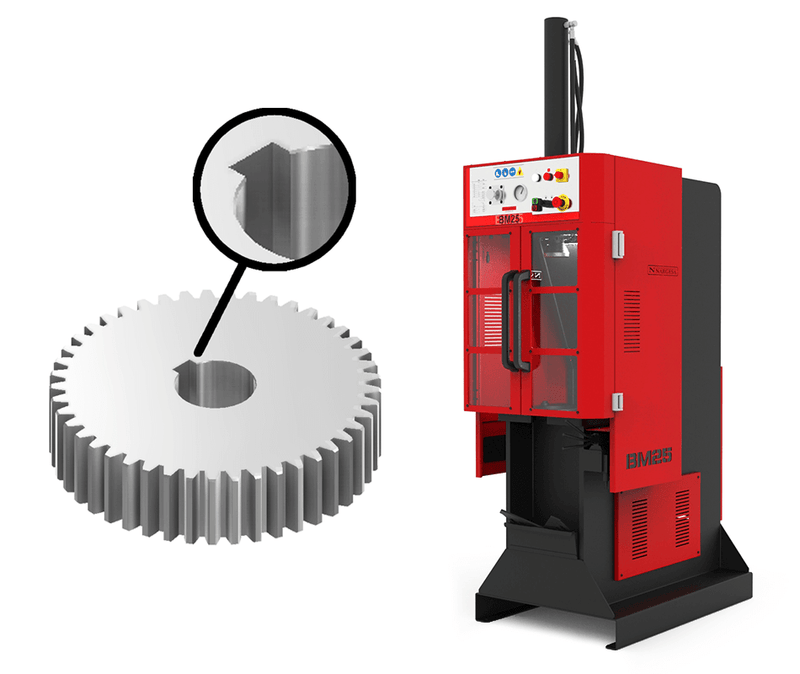

Nargesa BM25 Vertical Broaching Machines

The Nargesa BM25 Vertical Broaching Machine is a versatile hydraulic broaching machine designed for producing precise internal keyways, slots and profiles in a wide range of components. With 10 tons of hydraulic power and a maximum broaching capacity of 25 mm (1 inch), the BM25 is well suited to maintenance departments, machine shops and small to medium production environments.

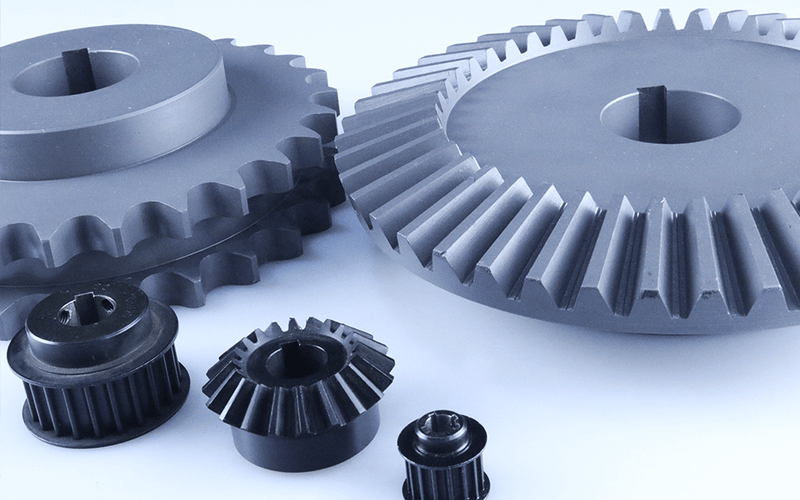

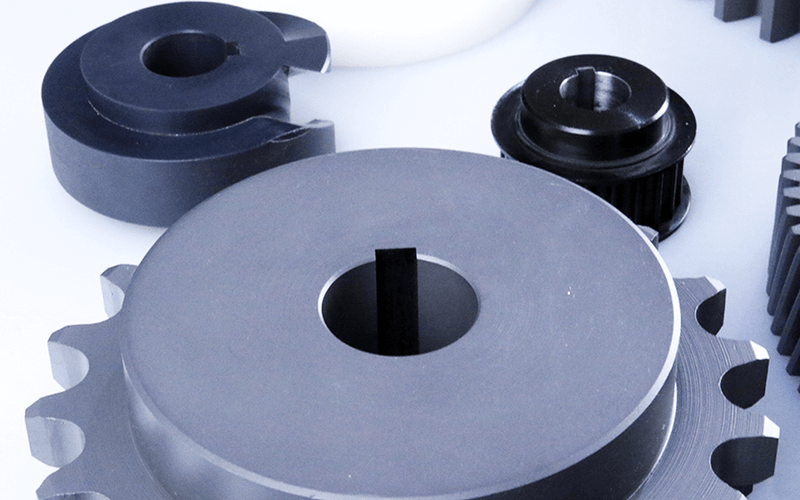

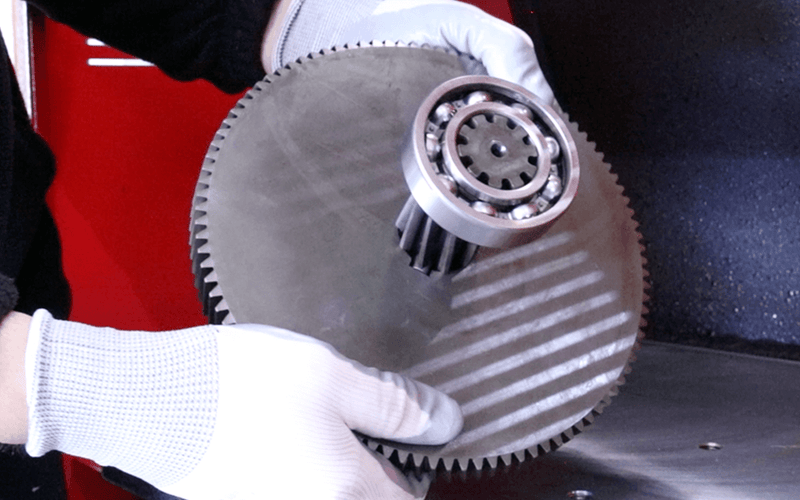

The BM25 can produce keyways in sprockets, pulleys, gears, bearings, bushings and other components, as well as internal square, rectangular and hexagonal profiles from pre-drilled holes. Multiple keyways can also be produced from the same bore.

Its welded and machined steel monoblock construction provides a rigid platform for consistent broaching, while the straightforward manual controls make the machine easy to operate without specialized CNC programming. Setup can be completed in approximately one minute, making the BM25 practical for both production work and one-off repair applications.

In addition to broaching, the BM25 can also function as a 10-ton hydraulic press for removing seized components, installing and removing bearings and bushings, straightening and other general pressing operations.

Manufactured in Spain, the Nargesa BM25 provides a compact and versatile solution for workshops that need accurate internal broaching without investing in a large dedicated machining system.

Key Features

• 10-ton hydraulic broaching force for internal keyway and profile machining
• Maximum broaching capacity of 25 mm (1 inch)
• Keyway capacity from 2 mm to 25 mm
• Produces internal keyways, slots and grooves
• Capable of producing square, rectangular and hexagonal profiles
• Multiple keyways can be produced from the same bore
• 600 mm (23.62") maximum stroke
• 300 mm (11.81") throat depth
• Accommodates workpieces up to approximately 600 mm (23.62") in diameter
• Fast setup time of approximately one minute
• Simple manual operation with hydraulic pressure control
• Pressure gauge and pressure-to-tonnage conversion chart
• Rigid welded and machined steel monoblock construction
• Adjustable workpiece positioning tooling included
• 420 × 420 mm (16.54 × 16.54") worktable
• Metric and imperial broaching capability
• Optional TiN- and TiAlN-coated broaches
• Optional guide bushings for improved broach alignment
• Can also function as a 10-ton hydraulic press
• Suitable for bearing, bushing and seized-component removal
• Integrated LED work lighting
• Removable chip collection drawer
• Polycarbonate safety guards with viewing windows
• Compact design suitable for positioning alongside lathes, CNC machines and machining centers
• Designed for small and medium production runs
• Manufactured in Spain by Nargesa

Applications

The BM25 is designed for internal broaching applications where accurate keyways or profiles need to be produced in pre-drilled components.

Typical applications include:

• Keyway machining
• Sprocket keyways
• Pulley keyways
• Gear keyways
• Bearing and bushing machining
• Internal slots and grooves
• Square internal profiles
• Rectangular internal profiles
• Hexagonal internal profiles
• Multiple keyways from a single bore
• Repair and maintenance machining
• Replacement-component manufacturing
• Small production runs
• Medium production runs
• General hydraulic pressing
• Bearing and bushing installation and removal
• Seized-component removal
• Straightening operations

The BM25 is particularly useful for maintenance and machine shops where internal keyways may be required regularly but investing in a large CNC broaching system would not be practical.

Why Choose the Nargesa BM25?

The BM25 provides a practical alternative to more complex machining equipment when the primary requirement is producing internal keyways and profiles.

Its 10-ton hydraulic system, 25 mm broaching capacity and 600 mm stroke provide substantial machining capability while maintaining a relatively compact footprint. The quick setup and manual controls also make it suitable for both repeat production and one-off repair work.

Another advantage is its versatility. When it is not being used for broaching, the BM25 can be used as a 10-ton hydraulic press, allowing the same machine to perform additional maintenance and fabrication tasks.

Key advantages include:

• Accurate internal keyway and profile machining
• 10 tons of hydraulic force
• Up to 25 mm (1") broaching capacity
• Fast approximately one-minute setup
• Simple manual operation
• Large 600 mm stroke
• Large 300 mm throat depth
• Supports workpieces up to approximately 600 mm diameter
• Metric and imperial tooling compatibility
• Versatile hydraulic press functionality
• Compact workshop-friendly design
• Suitable for production and maintenance applications

Included Accessories

The Nargesa BM25 includes:

• 10-ton hydraulic system
• Manual control panel
• Hydraulic pressure regulator
• Pressure gauge
• Pressure-to-tonnage conversion chart
• 420 × 420 mm worktable
• Standard workpiece positioning tooling
• LED work lighting
• Polycarbonate safety guards
• Chip collection drawer
• Hydraulic oil
• Metric and imperial broaching compatibility
• CE-compliant safety systems

Note: Individual broaches and guide bushings are available separately and should be selected according to the required keyway or internal profile.

Optional Accessories

• Keyway broaches from 2–25 mm
• Imperial keyway broaches from 1/16–1"
• TiN-coated broaches
• TiAlN-coated broaches
• Square-profile broaches
• Rectangular-profile broaches
• Hexagonal-profile broaches
• Additional guide bushings
• F114 steel guide bushings with H8 tolerance
• Complete NIMF15 wooden packaging
