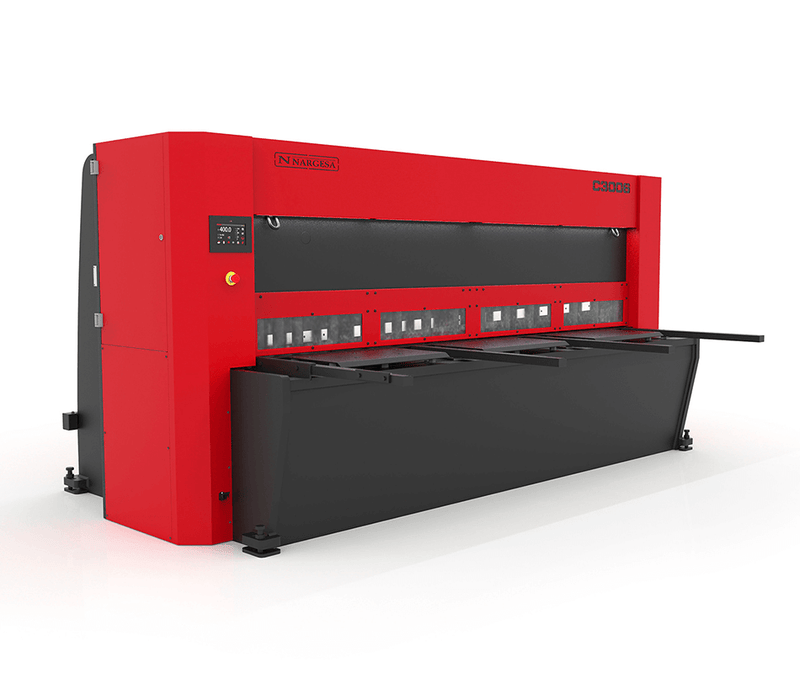

Hydraulic Shear C3006CNC

The Nargesa C3006CNC CNC Hydraulic Shear is a high-performance vertical-cut guillotine designed for clean, accurate and repeatable sheet metal cutting. With a 6 mm (0.24-inch) mild steel cutting capacity and a 3055 mm (120.3-inch) maximum cutting length, the C3006CNC provides the capacity and precision required for demanding fabrication and manufacturing applications.

The latest-generation C3006CNC combines a high-resistance welded and stabilized steel structure with an intuitive ESA S625 CNC control. Operators enter the material type, thickness and required gauge distance, and the CNC automatically configures the machine for the cutting operation. The control can store thousands of part programs, making the C3006CNC suitable for both repeat production and custom fabrication.

Unlike conventional swing-cut shears, the C3006CNC uses a vertical cutting system. The vertical movement creates significantly less resistance against the material, helping reduce energy consumption while producing clean and accurate cuts. The reduced cutting resistance also minimizes blade wear, with Nargesa stating that blade life can be up to four times longer than other shearing systems.

With its 120-inch cutting length, 6 mm mild-steel capacity, 700 mm rear gauge and 15 hydraulic hold-downs, the C3006CNC is an excellent choice for fabricators and manufacturers processing larger sheet metal components while requiring precise CNC-controlled positioning.

All Nargesa products are manufactured in Spain and comply with CE industrial machinery manufacturing standards.

Key Features

• Vertical-cut shearing system reduces cutting resistance, energy consumption and blade wear.
• 6 mm (0.24-inch) mild steel capacity and 4 mm (0.16-inch) stainless steel capacity.
• 3055 mm (120.3-inch) maximum cutting length for processing large sheets and components.
• ESA S625 CNC control with 7-inch colour touchscreen and intuitive operation.
• Thousands of programmable part programs for repeat production and custom fabrication.
• ±0.1 mm (±0.004-inch) rear gauge accuracy and repeatability for consistent material positioning.
• 700 mm (27.6-inch) rear gauge travel for flexible sheet positioning.

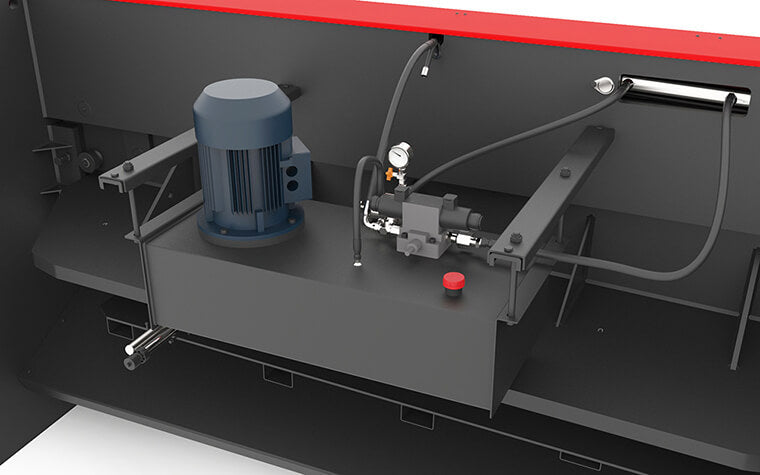

• Automatic hydraulic pressure regulation adjusts cutting and hold-down pressure according to the application.

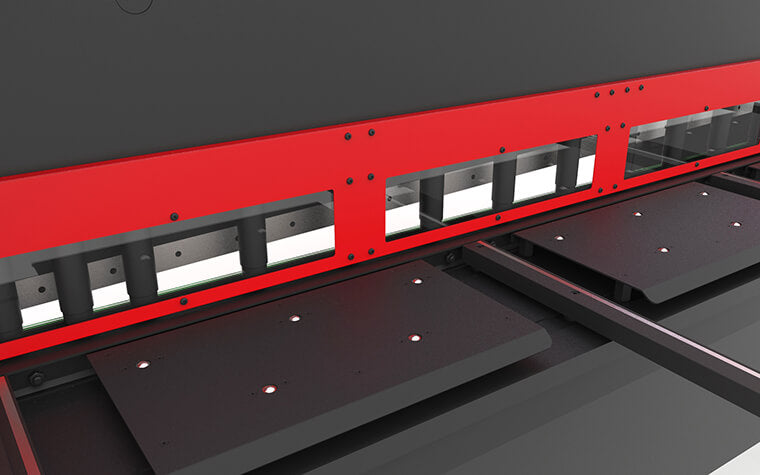

• 15 hydraulic hold-downs secure sheet material during cutting.
• Four-edge cutting blades allow worn edges to be repositioned before blade replacement is required.
• Laser cutting-line indicator provides a clear visual reference for material positioning.
• Integrated LED lighting improves visibility around the cutting area.
• Machined one-piece workbench with integrated spheres makes large sheets easier to position.

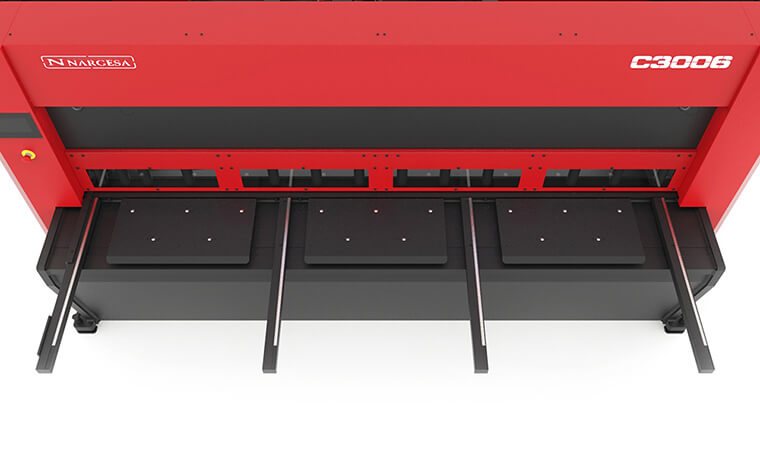

• 1000 mm squaring support and three graduated support arms assist with sheet positioning.
• 173 mm (6.8-inch) goose neck provides additional cutting access into larger workpieces.
• Up to 12 strokes per minute across the full cutting length.
• Polycarbonate safety screens and rear optoelectronic protection provide operator safety while maintaining visibility.
• CNC-controlled operation reduces manual setup and helps improve production consistency.
• Industry-ready European components from established manufacturers.
• Fully assembled delivery simplifies installation and commissioning.

Applications

The C3006CNC is designed for sheet metal fabrication and industrial manufacturing applications where accurate, repeatable cutting is required across larger sheet sizes.

Typical applications include:

• General sheet metal fabrication.
• Structural and industrial metalwork.
• HVAC component manufacturing.
• Enclosure and cabinet fabrication.
• Machine and equipment manufacturing.
• Automotive and transportation components.
• Custom metal fabrication.
• Production sheet cutting.
• Cutting large sheet metal blanks.
• Repeat production of accurately dimensioned components.

The vertical-cut system is particularly useful when clean cuts, reduced blade wear and efficient material processing are important. The machine can process mild steel up to 6 mm and stainless steel up to 4 mm, depending on material strength.

Why Choose the Nargesa C3006CNC?

The C3006CNC is designed for manufacturers who need more than simply a large cutting length. Its combination of vertical-cut technology, CNC positioning and rigid construction provides an efficient approach to industrial sheet metal cutting.

The vertical cutting system is a key advantage. By reducing the resistance encountered during cutting, it can lower energy consumption and reduce stress on the cutting system. Nargesa also states that the design can provide blade life up to four times longer than other shearing systems.

The ESA S625 CNC control further simplifies operation. Rather than manually calculating machine settings for every cut, operators enter the material and positioning requirements and allow the CNC to configure the machine. With storage for thousands of programs, the system is well suited to both repeat production and varied fabrication work.

For larger sheets, the 3055 mm cutting length, 700 mm rear gauge and 15 hydraulic hold-downs provide the working capacity and material control needed for consistent results.

Included Accessories

• ESA S625 compact CNC control.
• 7-inch colour touchscreen.
• Fixed precision rear gauge.
• 700 mm rear gauge travel.
• 1000 mm initial squaring support with millimeter scale.
• Three 1000 mm graduated support arms.
• Machined one-piece workbench.
• Integrated sheet-support spheres.
• Laser cutting-line indicator.
• LED front lighting.
• Front polycarbonate safety screens.
• Safety foot pedal.
• Emergency stop.
• Rear optoelectronic safety system.
• 15 hydraulic sheet hold-downs.
• Four-edge upper and lower cutting blades.
• 173 mm goose neck.

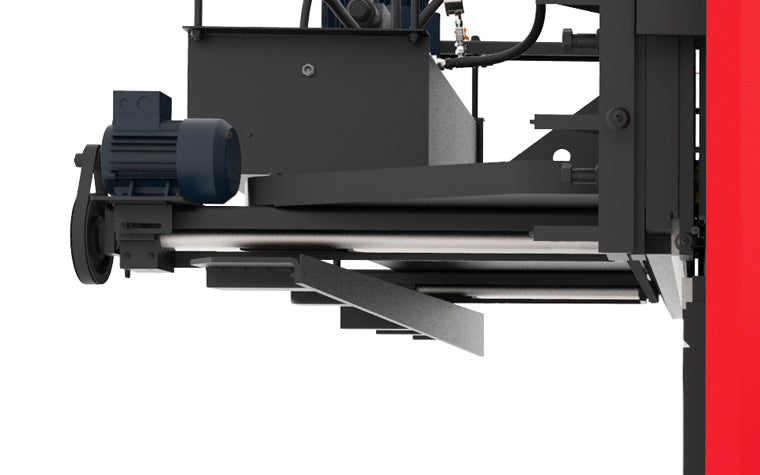

• Material extraction ramp.
• Automatic cutting-pressure regulation.
• Automatic sheet hold-down pressure regulation.

Technical Specifications
