Siegmund Basic Set 1 for System 16 (item no. 4-161200) is a 31-piece tooling kit for Siegmund System 16 Basic welding and clamping tables. It includes 4 clamps, 12 bolts, 8 stops and 6 squares, plus the Siegmund accessories set 163999. Order it in Canada from BTH Sales.
Key specs
- System: Siegmund System 16 (Ø 16 mm boreholes) – Basic table set
- Manufacturer article no.: 4-161200 (ERP 16002739)
- GTIN/EAN: 4251805906684
- Set weight: 11.66 kg (manufacturer data)
- Materials: as listed per item in the table above (Siegmund item descriptions)
- Components made by Bernd Siegmund GmbH, Germany

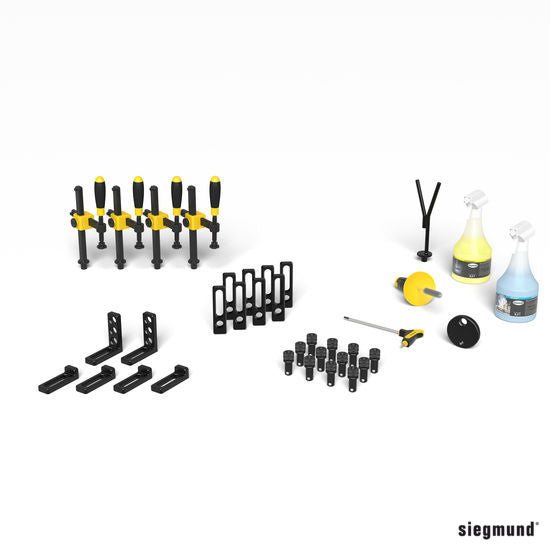

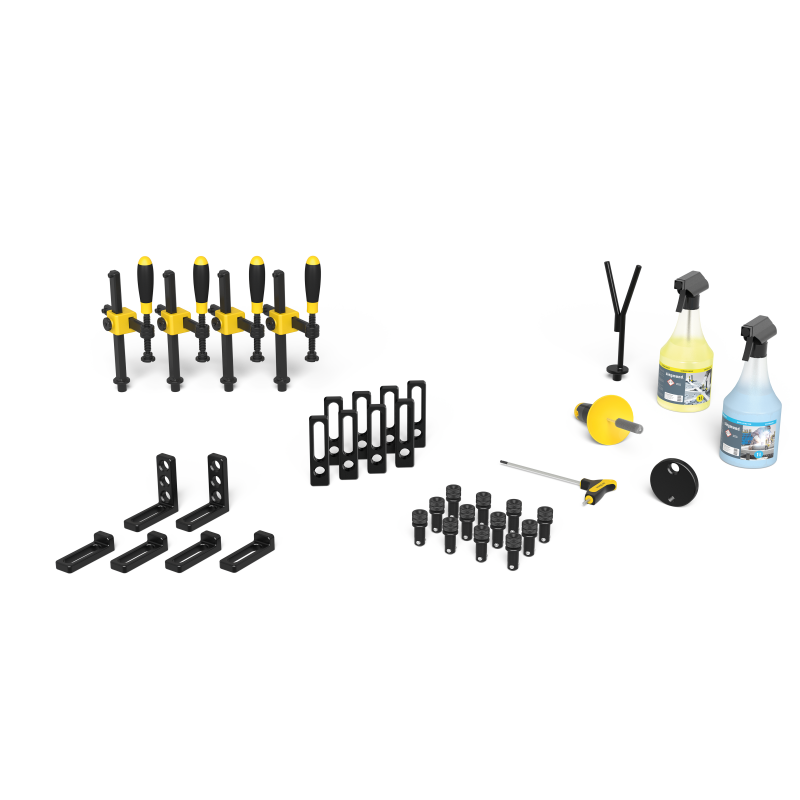

What's included
| Qty | Item no. | Name |
|---|---|---|
| 4 | 160610 | Professional Screw Clamp burnished / nitrided |
| 12 | 160511 | Fast Clamping Bolt without slot double burnished |
| 8 | 160420.N | Universal Stop 115 L nitrided |
| 4 | 160108.N | Stop and Clamping Square 90 X nitrided |
| 2 | 160110.N | Stop and Clamping Square 90 L nitrided |
| 1 | 163999 | Accessories-Set (included in Set 1 - Set 5) |
Total: 31 pieces (per Siegmund's listing).
Accessories set 163999 contents
- 1 × 160402.N Eccentric Stop Ø 75 with M10 thread nitrided
- 1 × 160852 Hex wrench Size 4
- 1 × 160820 Brush Ø 17 with protecting cover
- 1 × 000914 CleanBasic 1 liter spray bottle
- 1 × 000924 Anti-Spatter 1 liter spray bottle
- 1 × 160920 Burner Holder burnished
Compatibility
Siegmund designates this set "for Basic Tables": it is intended for Siegmund System 16 Basic welding tables (Ø 16 mm bores). Check with us before ordering it for a Professional or Extreme table. It is not compatible with System 28 tables, which use 28 mm bores. Siegmund System 16: built "for Basic Tables" (BTH lists no Basic table).
Related: All Siegmund welding tables and tooling
Compare System 16 sets
- Set 1 – System 16 (29 pcs)
- Set 2 – System 16 (55 pcs)
- Set 3 – System 16 (73 pcs)
- Set 4 – System 16 (100 pcs)
- Set 5 – System 16 (118 pcs)
- Basic Set 2 – System 16 (45 pcs)
- Set 1 Aluminum – System 16 (65 pcs)
- Robotic Starter Set – System 16 (29 pcs)
- Robotic Toggle Starter Set – System 16 (31 pcs)
- All Siegmund System 16 table kits & sets
Frequently Asked Questions
Which tables does Basic Set 1 fit?
Siegmund designates this set "for Basic Tables": it is intended for Siegmund System 16 Basic welding tables (Ø 16 mm bores). Check with us before ordering it for a Professional or Extreme table. It is not compatible with System 28 tables, which use 28 mm bores.
What jobs is Basic Set 1 equipped for?
Based on Siegmund's set list and item descriptions, Basic Set 1 lets you clamp parts down quickly and exactly with the Professional Screw Clamps; set repeatable stops that bolt into the boreholes or slide in the elongated hole (0-50 mm); build adjustable angles with the L squares; stop large sections with the 90 X squares.
What does Basic Set 2 add over Basic Set 1?
Per Siegmund's set lists, Basic Set 2 adds 2 Stop and Clamping Squares 300 G, and has more Professional Screw Clamps (8 instead of 4); Fast Clamping Bolts (16 instead of 12); Universal Stops 115 L (10 instead of 8); Stop and Clamping Squares 90 L (4 instead of 2). Both include the accessories set.
How do I keep the table and tooling clean with the included accessories?
The 163999 accessories set includes a bore brush plus CleanBasic and Anti-Spatter spray bottles. Siegmund describes CleanBasic as a water-based cleaner for daily table cleaning whose anti-corrosive ingredients prevent rust under normal conditions; it should not be used if rust has appeared from very high humidity. Anti-Spatter is a non-flammable, water-soluble agent that stops weld spatter burning into the table, so spatter can be wiped off after welding. Siegmund also advises cleaning surfaces and holes regularly and avoiding unsuitable abrasives or corrosive substances.
Do you ship Basic Set 1 across Canada?
Yes. BTH Sales ships across Canada from its warehouse in St. Marys, Ontario. Most orders ship within 48 hours of receipt.
