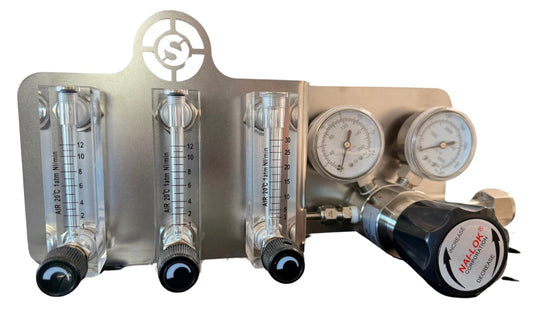

Orbital Service Pressure Regulator with Flowmeters

The Orbital Service Pressure Regulator with 3 Flowmeters is a high-performance gas regulation and distribution system designed for precision TIG welding, orbital welding, purge gas control, and other applications that require accurate gas delivery.

Built around a durable stainless steel support plate, the regulator combines pressure regulation, pressure monitoring, and independent flow control in a single compact assembly. The system allows operators to manage multiple gas circuits from one centralized unit, reducing the need for separate regulators and flow-control equipment.

Featuring three independently adjustable flowmeters, the regulator can simultaneously supply multiple gas lines while maintaining individual flow settings for each circuit. Two flowmeters provide a range of 0–12 Nl/min, while the third offers 0–30 Nl/min, allowing the system to accommodate different shielding and purge gas requirements within the same welding setup.

Designed for professional welding environments, the Orbital Service pressure regulator delivers the precise gas control required for high-quality, repeatable welding applications.

Key Features

• High-performance pressure regulator designed for precision gas control
• Three independently adjustable flowmeters for multi-line gas distribution
• Two flowmeters with a flow range of 0–12 Nl/min
• One flowmeter with a flow range of 0–30 Nl/min
• Dual pressure gauges for monitoring both supply and regulated pressure
• Inlet pressure range of 0–280 bar (0–4,000 PSI)
• Adjustable outlet pressure from 0–14 bar (0–200 PSI)
• Durable stainless steel support plate
• Rear 6 mm Faston connectors for quick hose attachment
• Suitable for shielding gas and purge gas applications
• Capable of supplying multiple chambers simultaneously
• Compact, centralized gas management system
• Designed for professional TIG and orbital welding environments
• Manufactured in Germany

Applications

The Orbital Service Pressure Regulator with 3 Flowmeters is designed for applications that require precise pressure regulation and independently controlled gas flow across multiple circuits.

Typical applications include:

• TIG welding
• Orbital TIG welding
• Shielding gas control
• Purge gas control
• Multi-line gas distribution
• Simultaneous gas supply to multiple chambers
• High-purity welding applications
• Precision fabrication
• Industrial welding
• Complex welding systems requiring multiple gas circuits

The ability to independently adjust three separate flowmeters makes this regulator particularly useful in welding environments where multiple gas supplies must be carefully controlled at the same time.

Why Choose the Orbital Service Pressure Regulator with 3 Flowmeters?

Many welding applications require more than a single gas line. Shielding gas, purge gas, backing gas, and additional chambers often require independent flow adjustment to maintain consistent welding conditions.

The Orbital Service Pressure Regulator simplifies these setups by combining pressure regulation and three independently adjustable gas circuits into a single assembly.

Instead of installing multiple regulators, operators can monitor incoming pressure, adjust outlet pressure, and independently control three separate gas lines from one centralized location.

For fabricators working with orbital welding, high-purity applications, or complex purge setups, this design improves organization, simplifies gas management, and provides more precise control over the welding process.

Included Components

The Orbital Service Pressure Regulator comes complete with:

• Pressure regulator assembly
• Stainless steel support plate
• Three independently adjustable flowmeters
• Two pressure gauges
• Rear 6 mm Faston gas connections

Technical Specifications
