Welding Table Clamps & Fixturing
Welding table clamps for Ø16 mm and Ø28 mm system tables, plus toggle clamps for jigs and fixtures. BTH Sales is the exclusive Canadian importer of Siegmund and Kifix, so this page brings Siegmund System 16 clamps, System 28 clamps and Kifix toggle clamps together, priced in CAD and shipped across Canada from St. Marys, Ontario.
Shop clamps by system

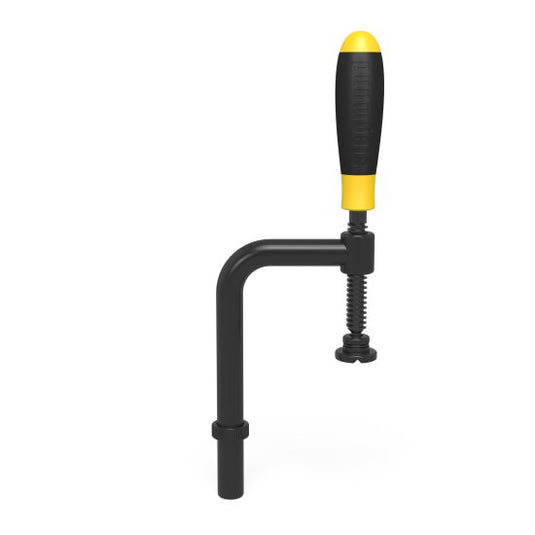

- Siegmund System 16 Clamps: screw, pipe and fast tension clamps for Ø16 mm bores on a 50 mm grid.

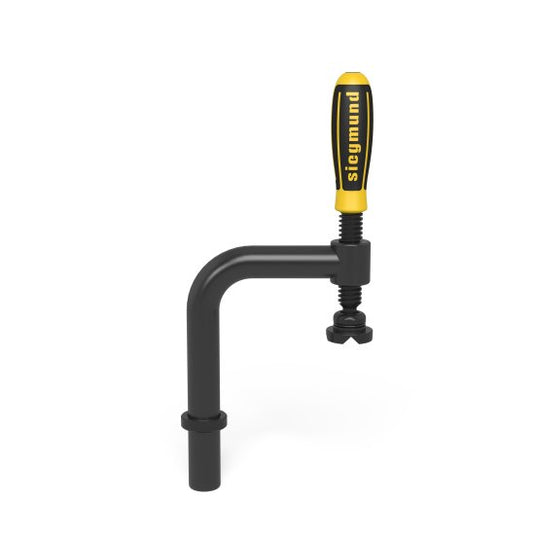

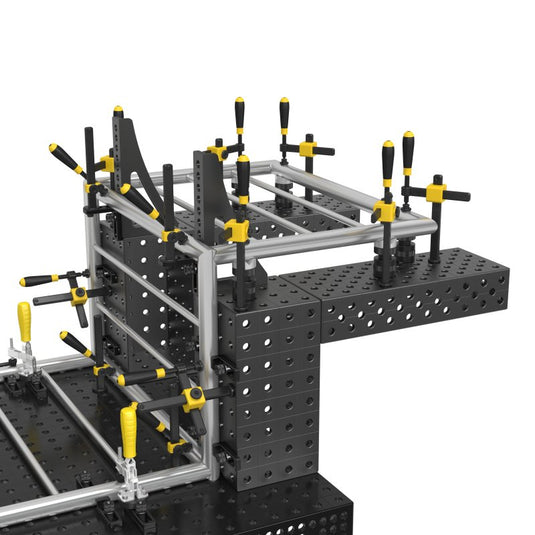

- Siegmund System 28 Clamps: screw, XL, pipe, pipe elbow, fast tension and quick-change clamps for Ø28 mm bores on a 100 mm grid.

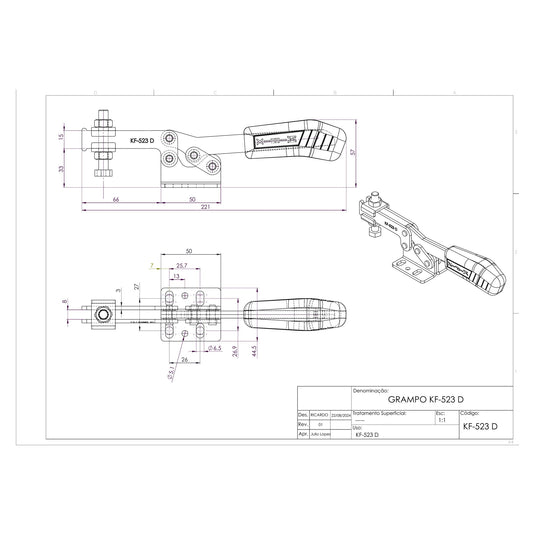

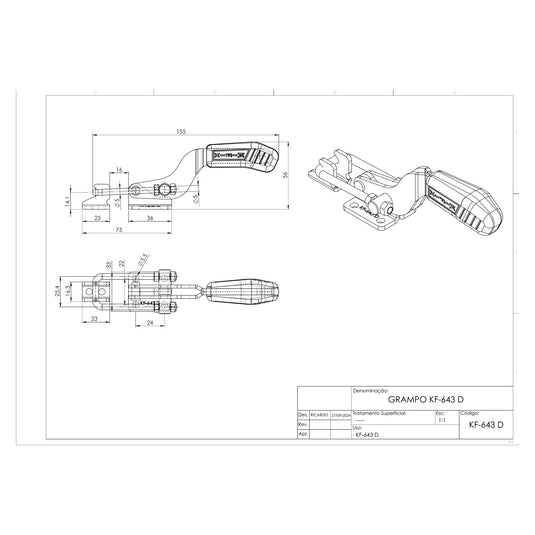

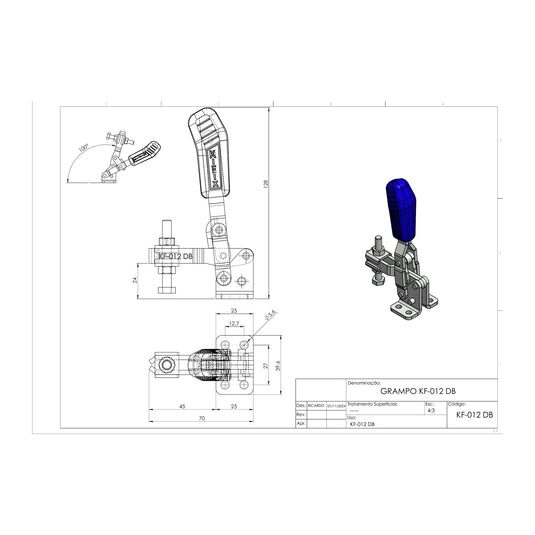

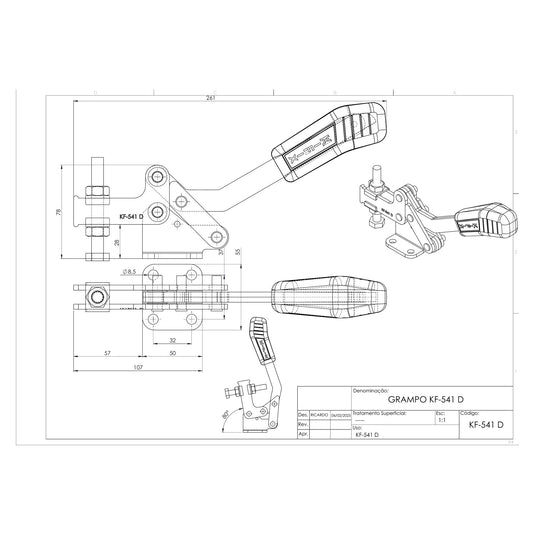

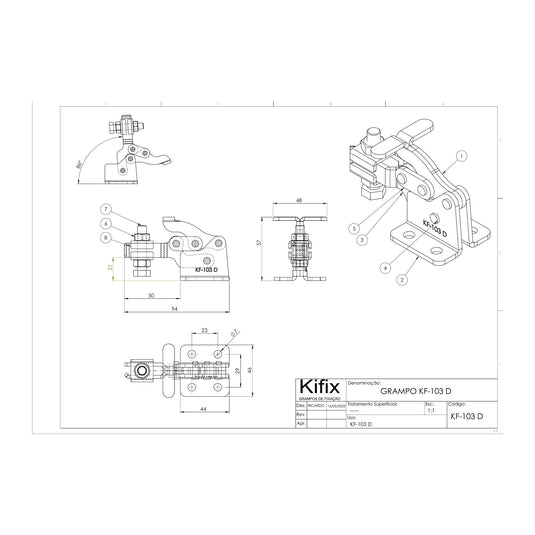

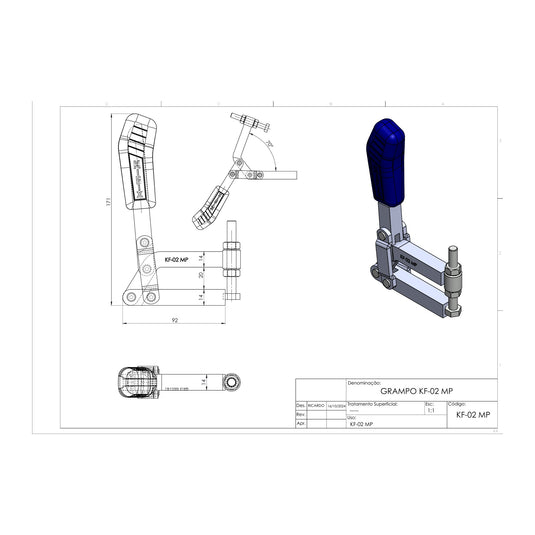

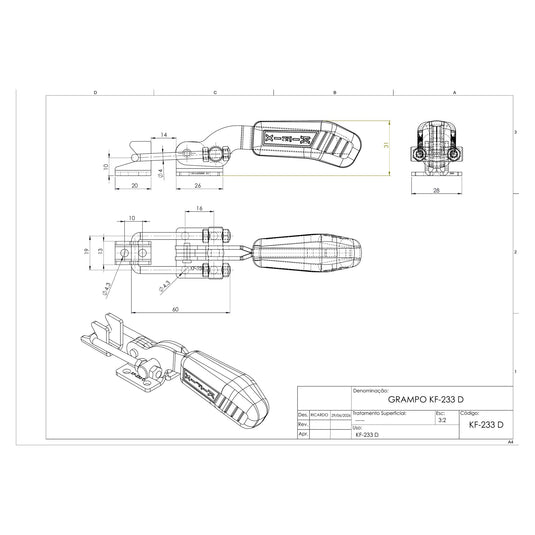

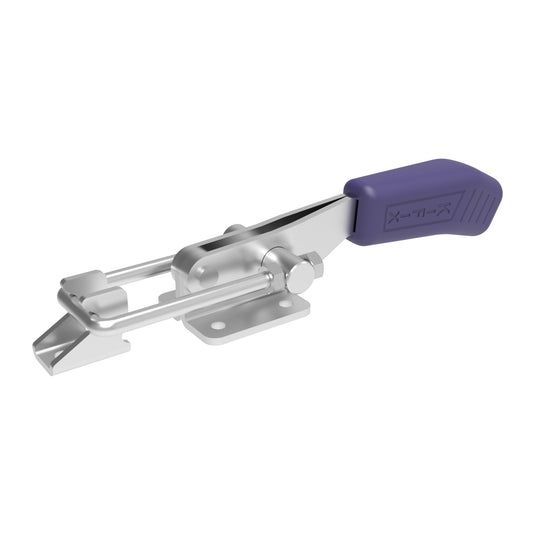

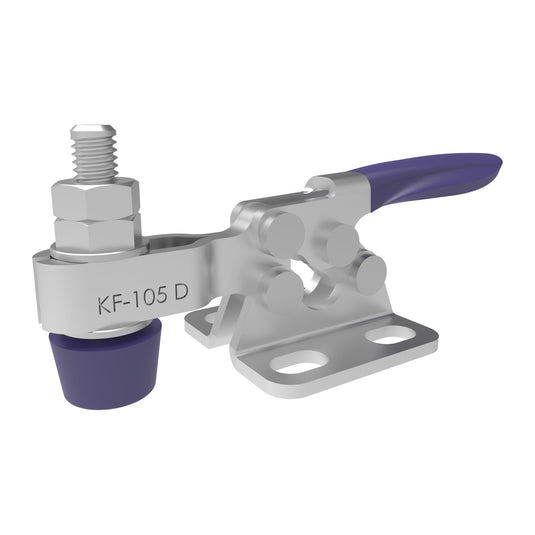

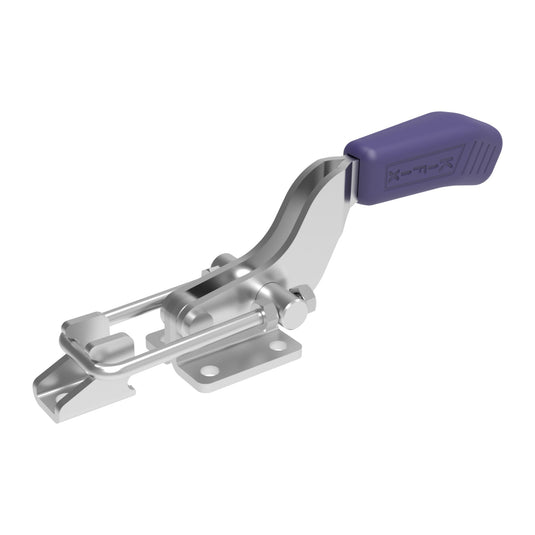

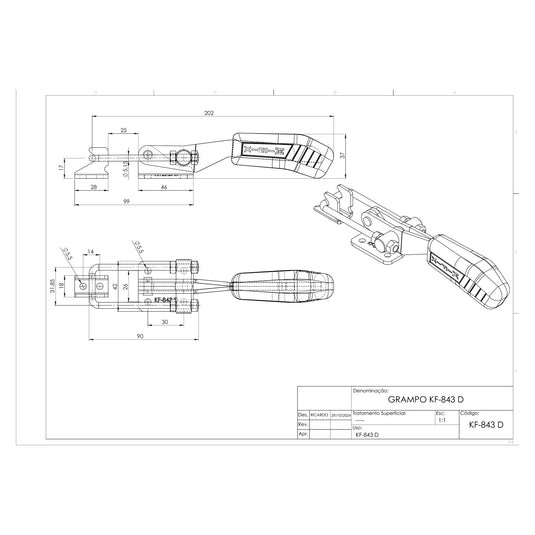

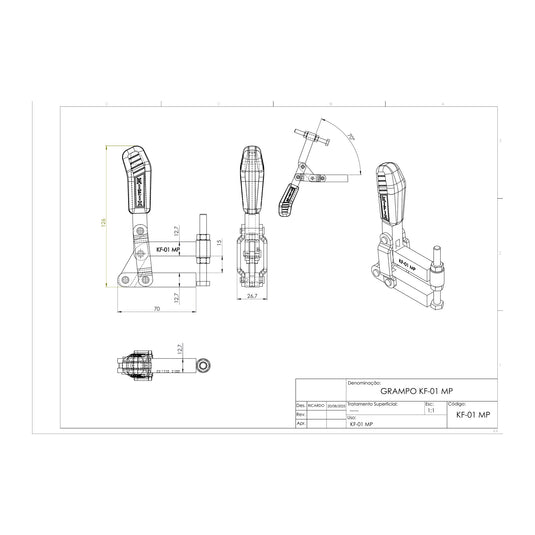

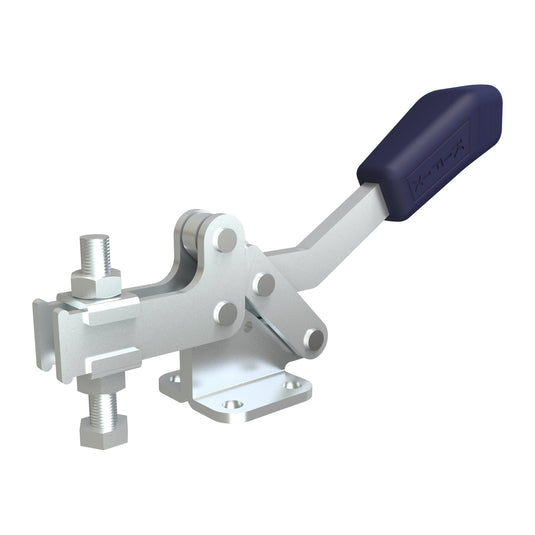

- Kifix Toggle Clamps: vertical, horizontal and pull-action latch clamps for jigs, fixtures and closures.
16 mm or 28 mm: which clamps fit your table?
Siegmund clamps lock into the table bores, so the bore size decides the clamp. The two systems are not interchangeable.
| System 16 | System 28 | |
|---|---|---|
| Bore diameter | Ø16 mm | Ø28 mm |
| Bore grid | 50 mm | 100 mm |
| Siegmund recommends it for | Light to medium-duty work and precision fixtures | Light to heavy components, high clamping forces and high distortion forces |

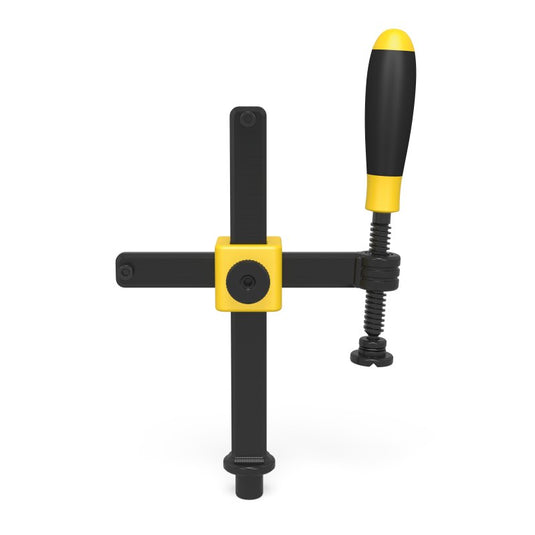

| Professional Screw Clamp, max. clamping force | 2.5 kN (160610) | 5 kN (280610.N); XL 7 kN (280612.N) |
| Shop | System 16 clamps · System 16 tables | System 28 clamps · System 28 tables |
Specifications from siegmund.com.
Kifix toggle clamps for fixtures

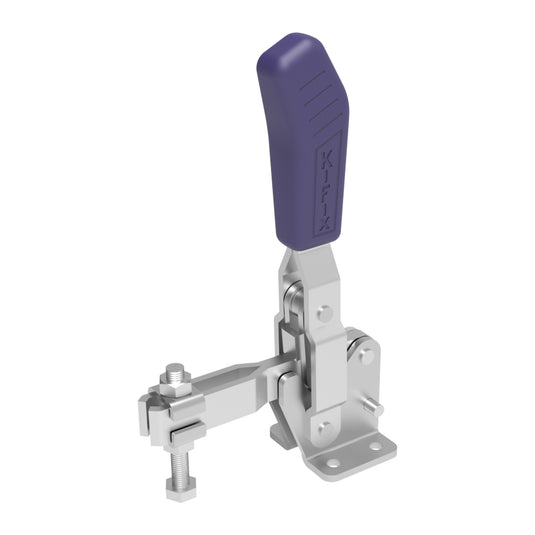

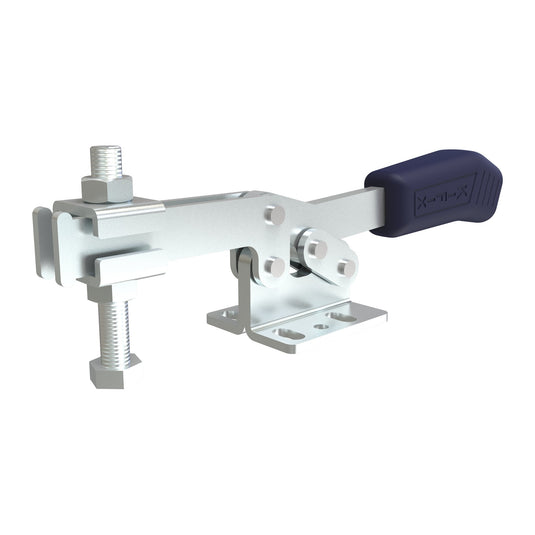

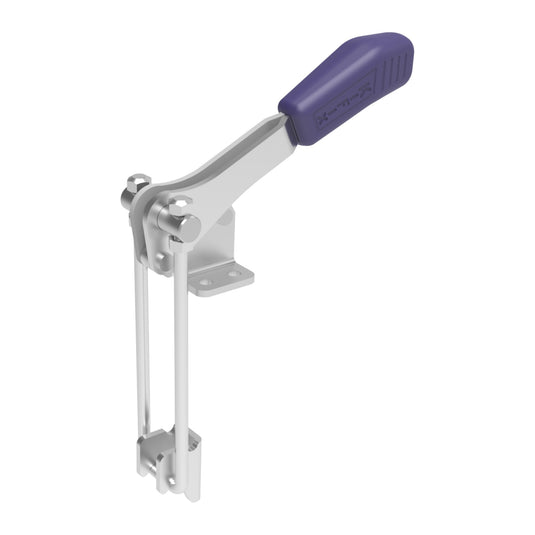

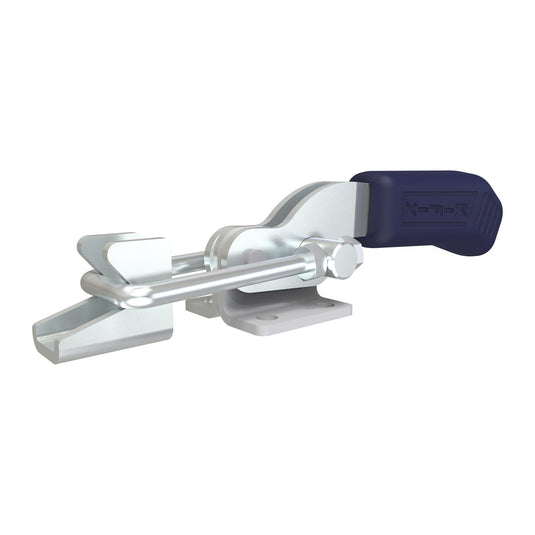

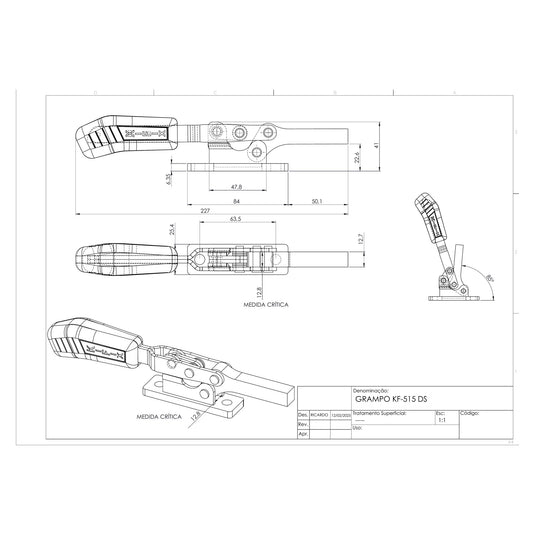

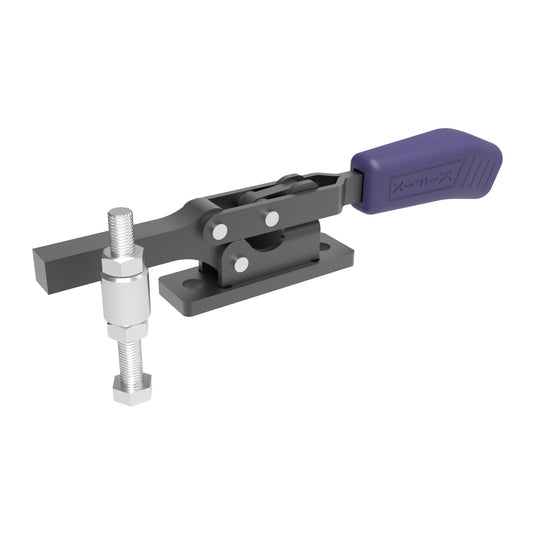

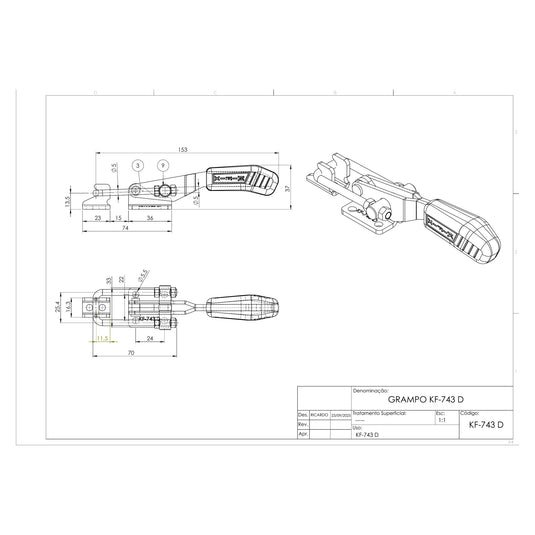

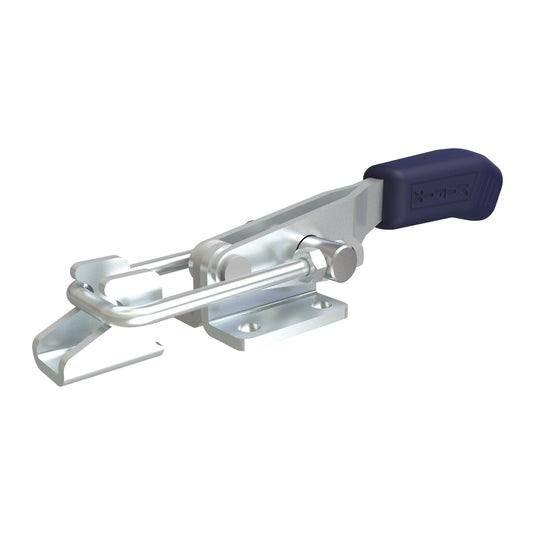

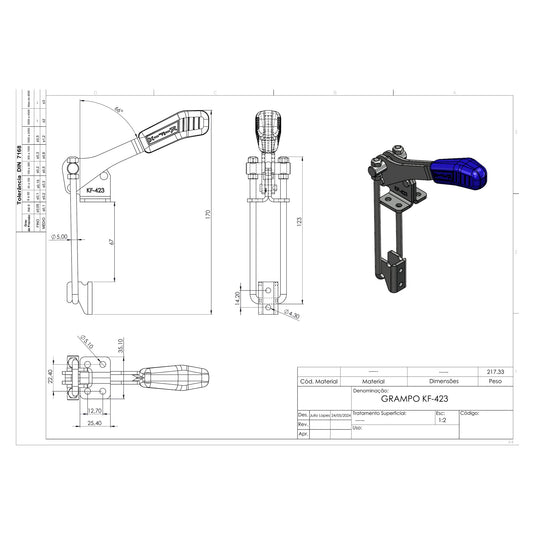

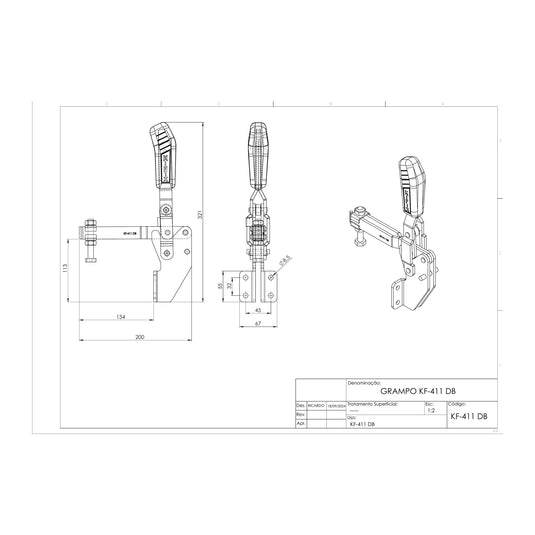

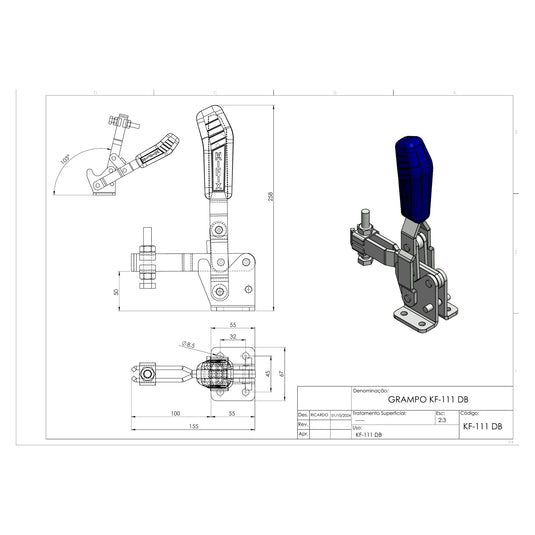

Kifix toggle clamps lock past dead centre, so one lever motion holds the part until you release it. That suits repeat fixturing and assembly. Vertical clamps leave clear space above the part when open. Horizontal clamps keep a low profile. Pull-action latches close lids, covers and fixture halves. Holding force, thread and base style are listed on each product page.

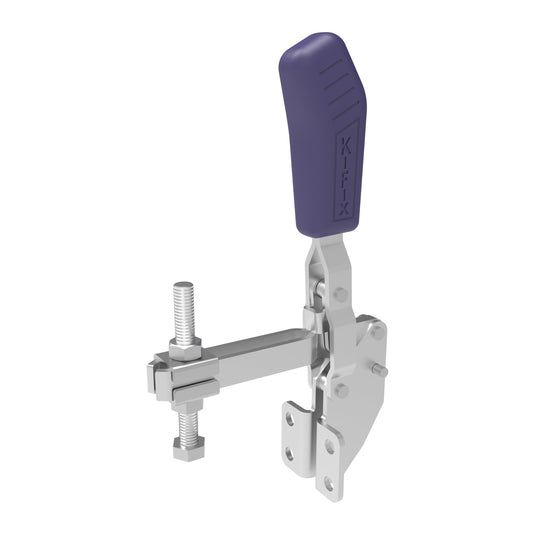

To put a toggle clamp on a Siegmund table, the KF-211 DB and KF-017 DB match the Siegmund System 28 Adapter with Hole Pattern.
Related collections
- Siegmund System 16 Fast Clamping Equipment
- Siegmund System 28 Fast Clamping Equipment
- Siegmund System 16 Clamp Replacement Parts
- Siegmund System 28 Clamp Replacement Parts
- Welding Tables
Frequently Asked Questions
Will System 28 clamps fit a System 16 welding table?
No. Match the clamp to the bore. System 16 clamps are made for Ø16 mm bores on a 50 mm grid, and System 28 clamps for Ø28 mm bores on a 100 mm grid. Measure the bore on your table, then shop the matching Siegmund clamp collection.
Which is stronger, a System 16 or a System 28 clamp?
On siegmund.com the System 16 Professional Screw Clamp (160610) lists 2.5 kN maximum clamping force. The System 28 Professional Screw Clamp (280610.N) lists 5 kN and the System 28 Professional Screw Clamp XL (280612.N) lists 7 kN. Siegmund designs System 28 for heavy components and high distortion forces.
Do Siegmund clamps fit other 16 mm or 28 mm system tables?
Siegmund System 16 clamps also fit other 16 mm system welding tables with Ø16 mm bores on a 50 mm grid. System 28 clamps also fit other 28 mm system welding tables with Ø28 mm bores on a 100 mm grid.
Can I mount Kifix toggle clamps on a Siegmund welding table?

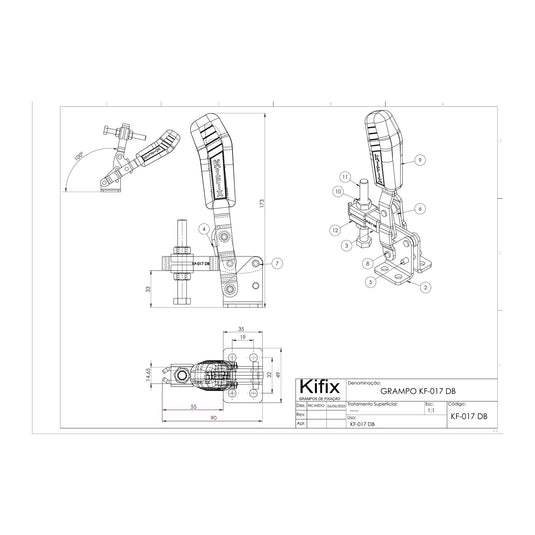

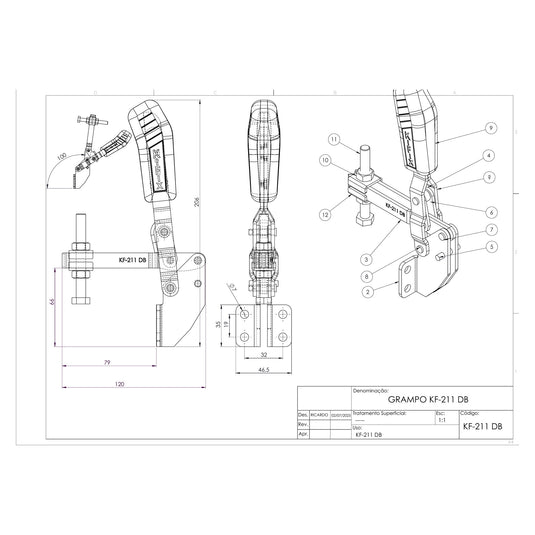

Yes, for selected models. The Kifix KF-211 DB and KF-017 DB have a 32 × 19 mm base hole pattern that matches the Siegmund toggle-clamp adapters 280715 and 280715.1 (System 28) and 160715 (System 16). The System 28 adapter is on our site; contact BTH Sales for the System 16 adapter.
